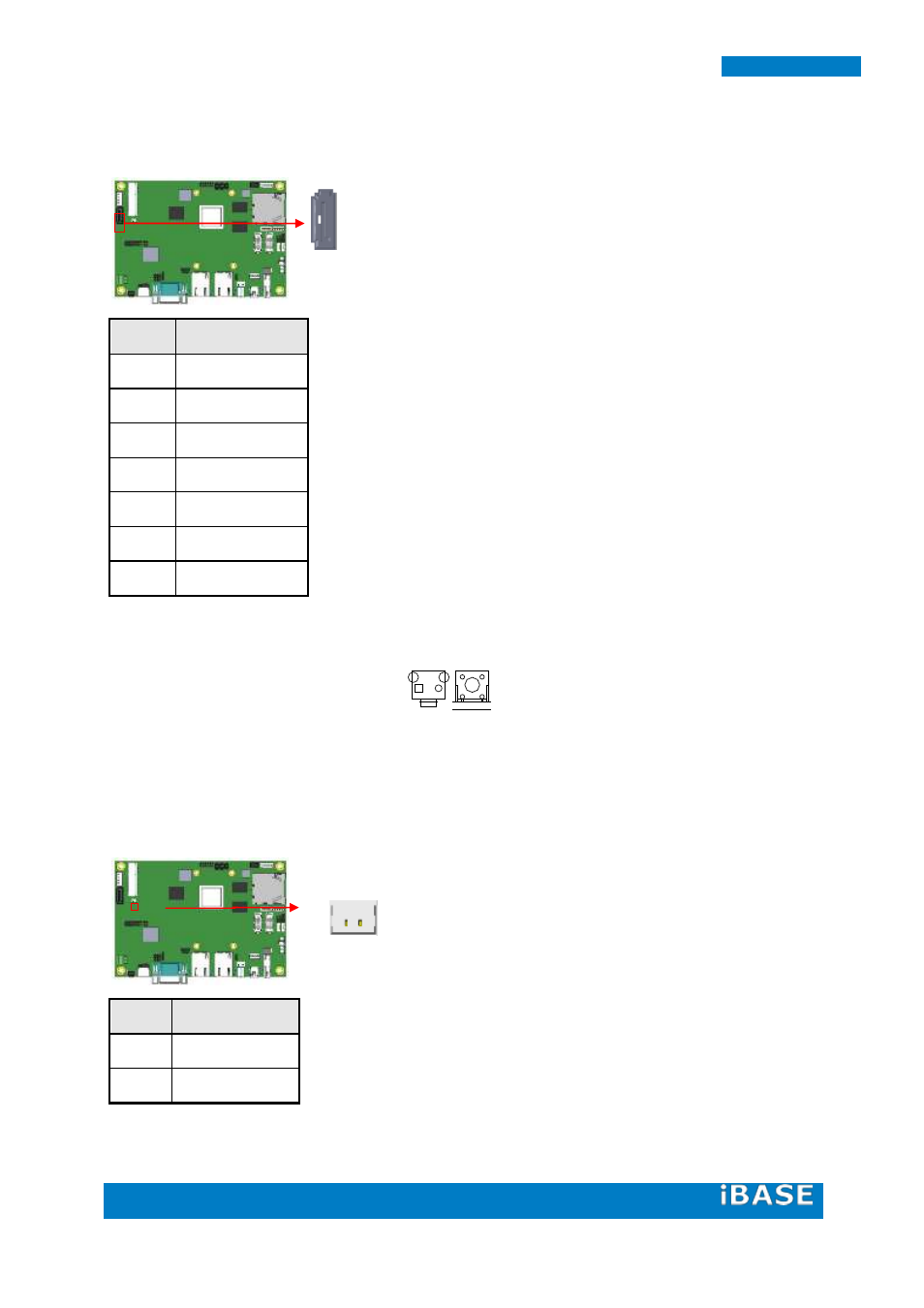

CN2: SATA Bus
Pin #
Signal Name
1
GND
2
SATA_TXP
3
SATA_TXN
4
GND
5
SATA_RXN
6
SATA_RXP
7
GND
SW2: Push Button for Hardware Reset
BAT: 3.0V Lithium Battery Connector
Part Number: 0110-2610020
Description: Molex 53047 1.25mm Wafer S/T Type 2pin
Pin #
Signal Name
1
+VCC
2
GND
1 2
