24
IB113

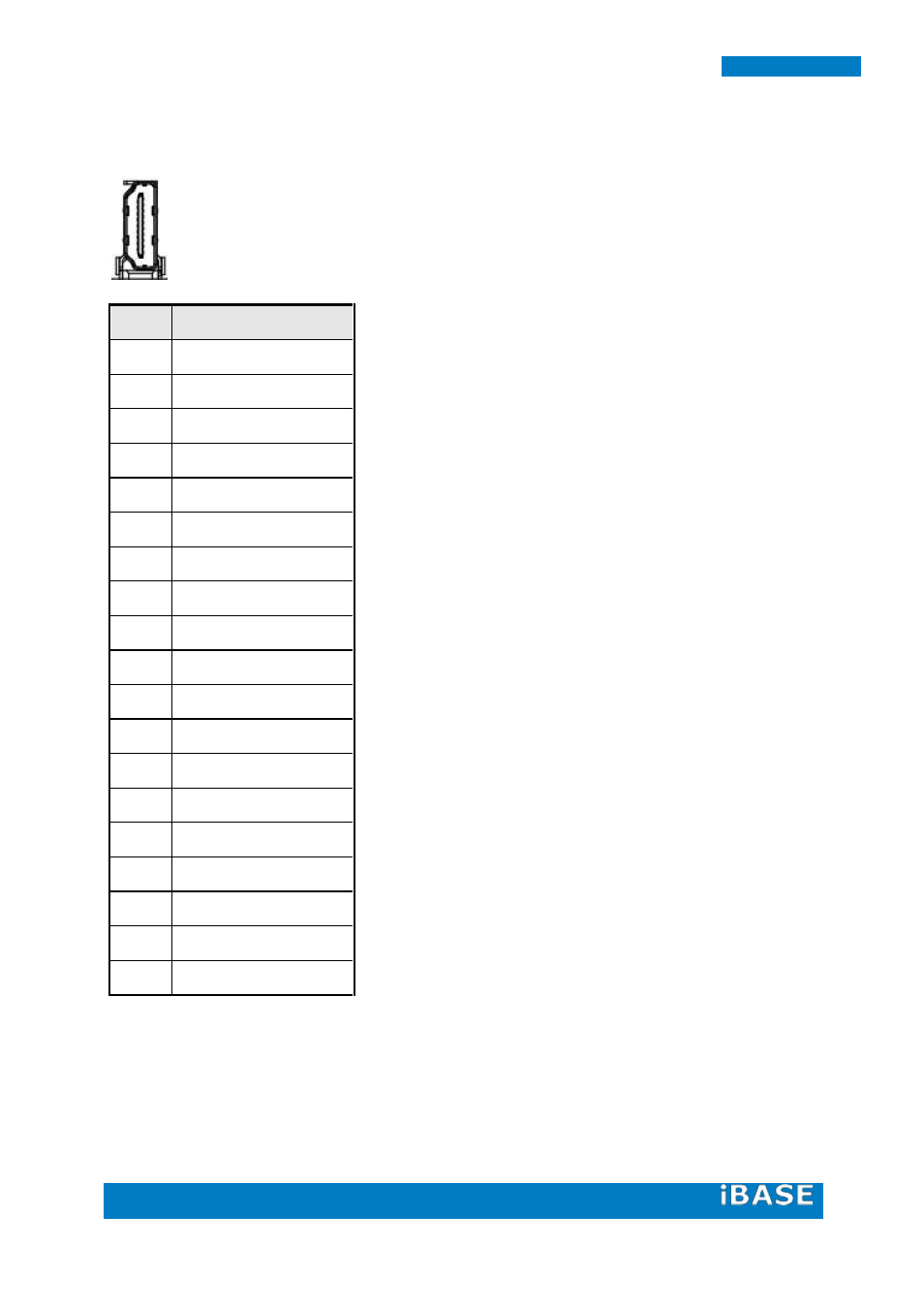

J11: HDMI connector
Pin #
Signal Name
1
TX2+
2
GND
3
TX2-
4
TX1+
5
GND
6
TX1-
7
TX0+
8
GND
9
TX0-
10
TXC+
11
GND
12
TXC-
13
NC
14
NC
15
NC
16
NC
17
GND
18
+5V
19
NC
* It is strongly suggested to insert HDMI cable and HDMI panel before system power on.
