Chapter 1 Before Use 1-6
1. 5 Appearance

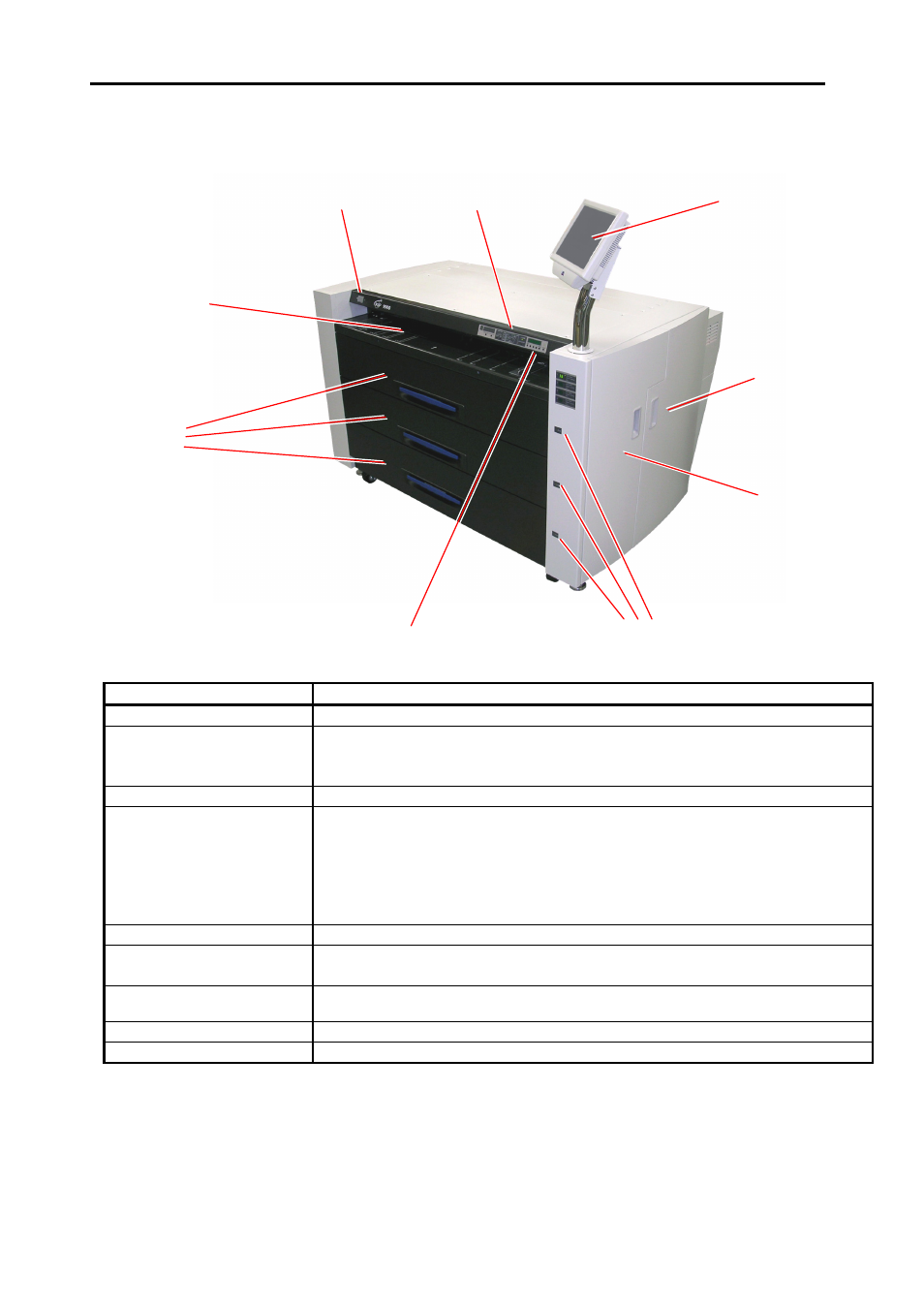

1.5.1 Front view
Power Switch Operation Panel User Interface
Bypass Feeder
Right Side Door
Roll Decks
Toner
Cover
Media Indicator
“in use” Indicators
Name of part Function
Power Switch Turns on/off the KIP 9900.
Bypass Feeder Cut sheet media can be set here and fed into.
Multiple cut sheet feeding (50 sheets max) is available when the size is
narrower than A2 (594mm) or 24”.
Operation Panel Indicates the status of KIP 9900, error, mis-feed location and so on.
Roll Decks There are 4 Roll Decks (The bottom drawer has two decks).
Each Roll Deck holds one roll of media.
Roll Deck 1 : (Top drawer)
Roll Deck 2 : (Middle drawer)
Roll Deck 3 : (Front side of bottom drawer)
Roll Deck 4 : (Rear side of bottom drawer)
Media Indicator Informs the size and the type of roll media loaded on each Roll Deck.
Toner Cover Can access to the Toner Supplying Mechanism and replace the Toner
Cartridge.
Right Side Door Can access the internal of KIP 9900 for removing the mis-fed media.
Use Interface Touch Screen offers many kinds of user operation.
“in use” Indicators Shows the Roll Deck that must not be opened.
