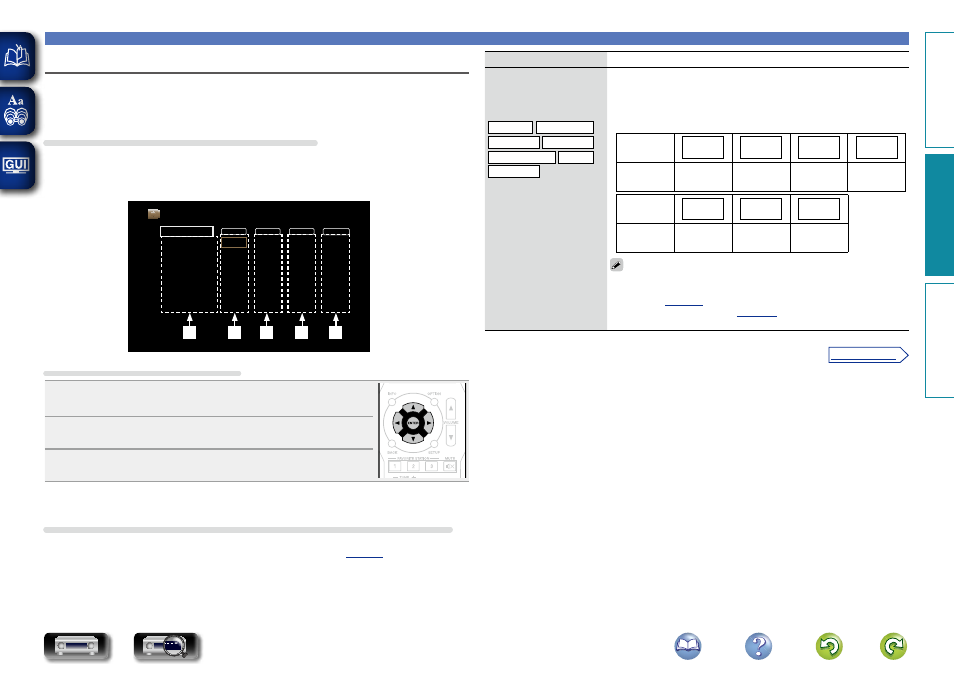

103
Setting items Setting details
HDMI
Set this to change the HDMI
input connectors assigned
to the input sources.
CBL/SAT Blu-ray/DVD
GAME AUX
MEDIA PLAYER CD
TV AUDIO
1 / 2 / 3 / 4 / 5 / Front : Assign an HDMI input connector to the selected
input source.
– : Do not assign an HDMI input connector to the selected input source.
• At time of purchase, the settings of the different input sources are as
shown below.
Input
source
CBL/SAT
Blu-ray/
DVD
GAME
MEDIA
PLAYER
Default
setting
1 2 3 4
Input
source
TV AUDIO AUX CD
Default
setting
– Front 5
• To play the video signal assigned at “HDMI” combined with the audio
signal assigned at “Input Assign” – “DIGITAL”, select “Digital” at “Input
Mode” ( vpage 105 ).
• When “HDMI Control” ( vpage 100 ) is set to “On”, HDMI input
connector cannot be assigned to “TV AUDIO”.
Inputs
Input Assign
This unit has certain input sources such as “CBL/SAT” assigned to audio and video connectors by default.
By making the default connections, you can simply press an input source select button to play back audio
or video from the connected device with ease.
When making connections other than the default settings, you must change settings in this section.
Examples of “Input Assign” menu screen displays
This screen appears when the “Inputs” – “each input source” – “Input Assign” menu is selected. Use the
“Input Assign” menu to change the w HDMI input connectors, e Digital input connectors, r Analog
input connectors, and t Video input connectors that are assigned to the q input sources in default
settings.
DIGITAL ANALOG HDMI VIDEO Set Defaults
Input Assign
CBL/SAT
Set Defaults
CBL/SAT
Blu-ray/DVD
GAME
MEDIA PLAYER
TV AUDIO
AUX
CD
1
2
3
4
−
Front
5
Coax
−
−
−
Opt
−
−
1
2
−
−
−
−
3
1
2
−
3
−
−
−
w q e r t
Input assignments menu operations
1
Use uio p to move the cursor to the item you want to set,
and then press ENTER .
2
Use o p to select the input connector to be assigned.
3
Press ENTER to register the setting.
n TV set top box/satellite users please note
When using the optical or coaxial digital audio output on a TV/satellite box
To play the video signal assigned to “HDMI” combined with the audio signal assigned at “Input Assign” –
“DIGITAL”, you will also need to select “Digital” in the “Input Mode” ( vpage 105 ).
Basic instructions
Advanced instructions
Information
Advanced instructions
v See overleaf
