78
Procedure for speaker settings
Speaker installation
Speaker connection ( vpage 79 )
Speaker installation
• Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
• The speaker impedance should be from 6 to 16 Ω/ohms.
Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front
speaker

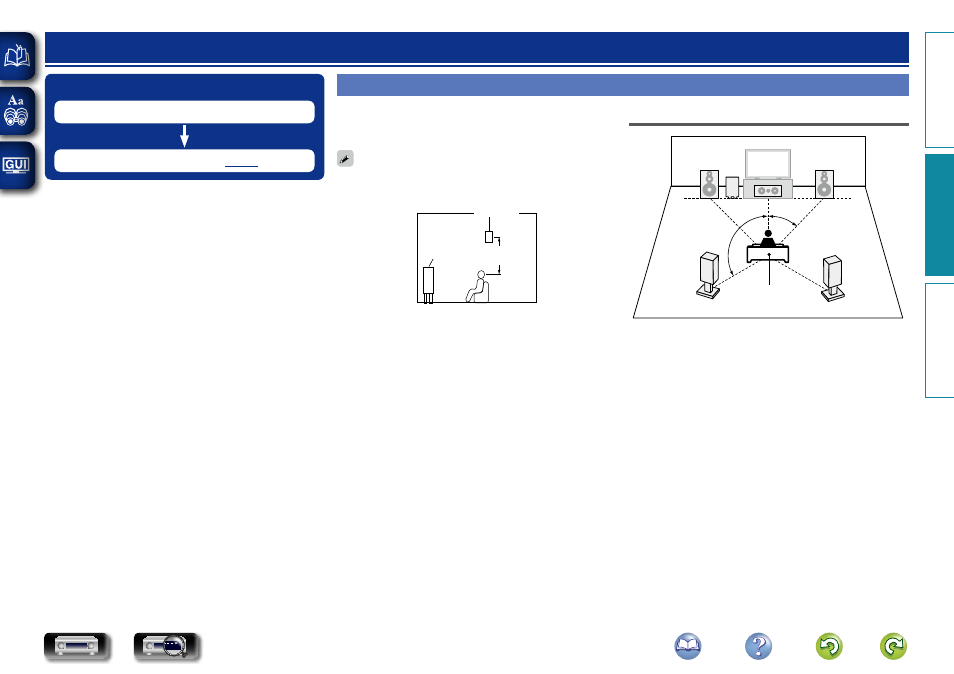

When 5.1-channel speakers are installed
FL FR
SW
C
SL SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
GSpeaker abbreviationsH
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
