DIAdem® 09-00 DIAdem Quick Start Guide 7-5
After the data conversion completes, check the Data Destination area of your application. Certain applications,
such as DaqView, make use of a Data Destination tab. Other applications (such as WaveView), show data
destination after a “Direct to Disk” [or equivalent] button is pressed. Consult your application’s user
documentation as needed.
It is a good idea to write down the complete file path for the newly created DIAdem data. This allows you to access
the file later from DIAdem’s Load Data box, as discussed on page QS-8.

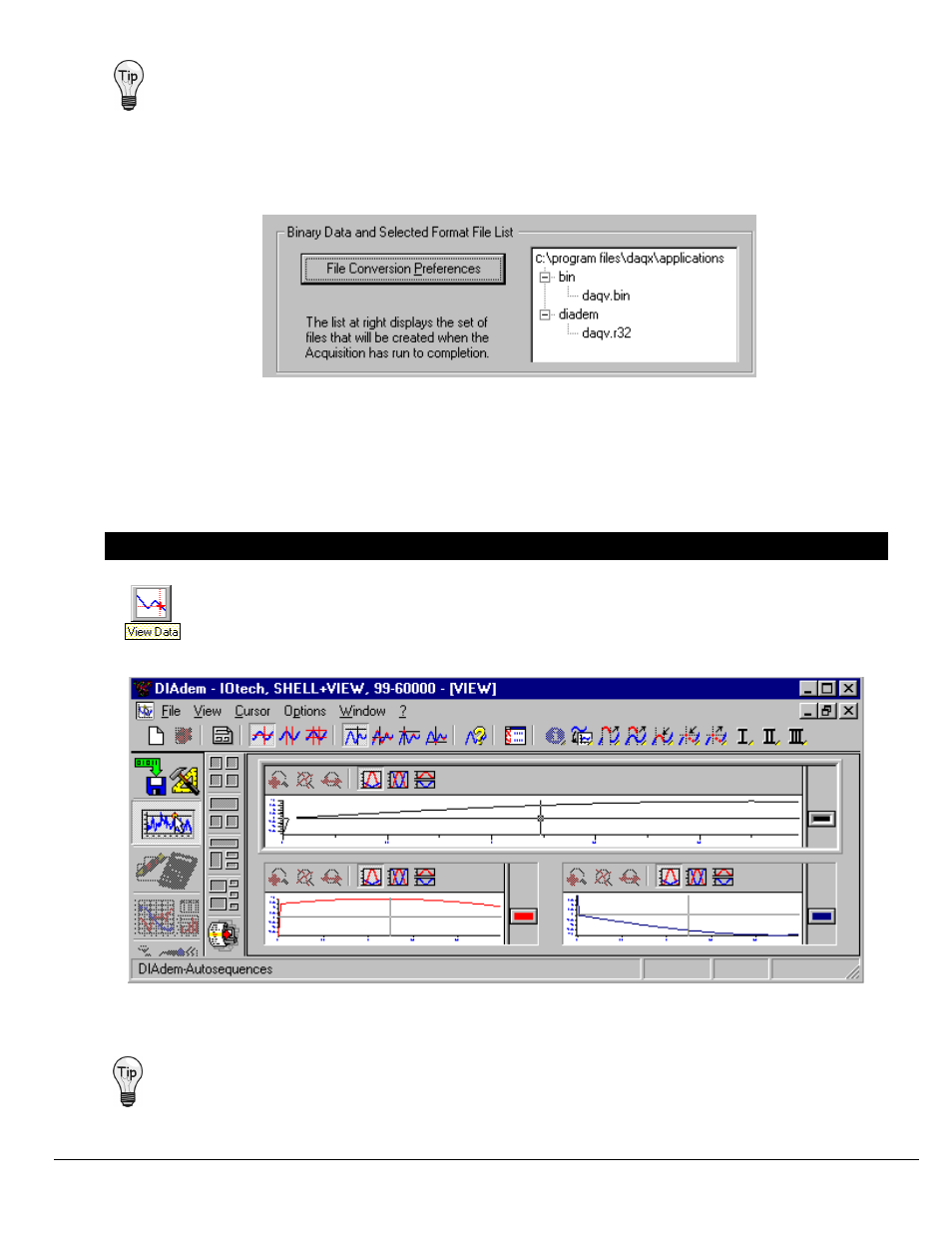

Checking Data Destination
In this example, the DIAdem target file is located at
c:\program files\daqx\applications\diadem\daqv.r32
3. View Data
From your data acquisition program’s main window, click the View Data button. This launches the DIAdem
program. DIAdem’s main window will appear with waveforms from the most recently acquired file.
DIAdem’s Main Window, Showing Graphs for Three Channels
We recommend that you review sections 1, 2, and 3 of this document, as well as DIAdem’s help files. The section
entitled, “Where to go from here….” on page QS-10 includes instruction on accessing the help files and identifies
the various help topics.
