2. Slide the battery out of its socket, and insert the new battery into the socket.
3. Insert the Multicon card into its slot, according to the description earlier in this manual.
3.5 X-point module
Each VikinX Modular frame must be equipped with at least one X-point card, in order to work
as a router.
A maximum of four X-point cards can be inserted into the 9RU frame, providing router sizes
from 32x32, via 64x64, 96x96, up to 128x128.
A maximum of two X-point cards can be inserted into the 5RU frame, providing router sizes
of either 32x32 or 64x64. The X-point cards are inserted from the lower card tray (I/O#1-32),
up to the upper card tray (I/O#97-128 or I/O#33-64).
It is also possible to combine 3GHD and SD routers in the same frame. You may add SD X
point cards into a 3GHD-SDI frame, and vice versa.
3.5.1 Card insertion

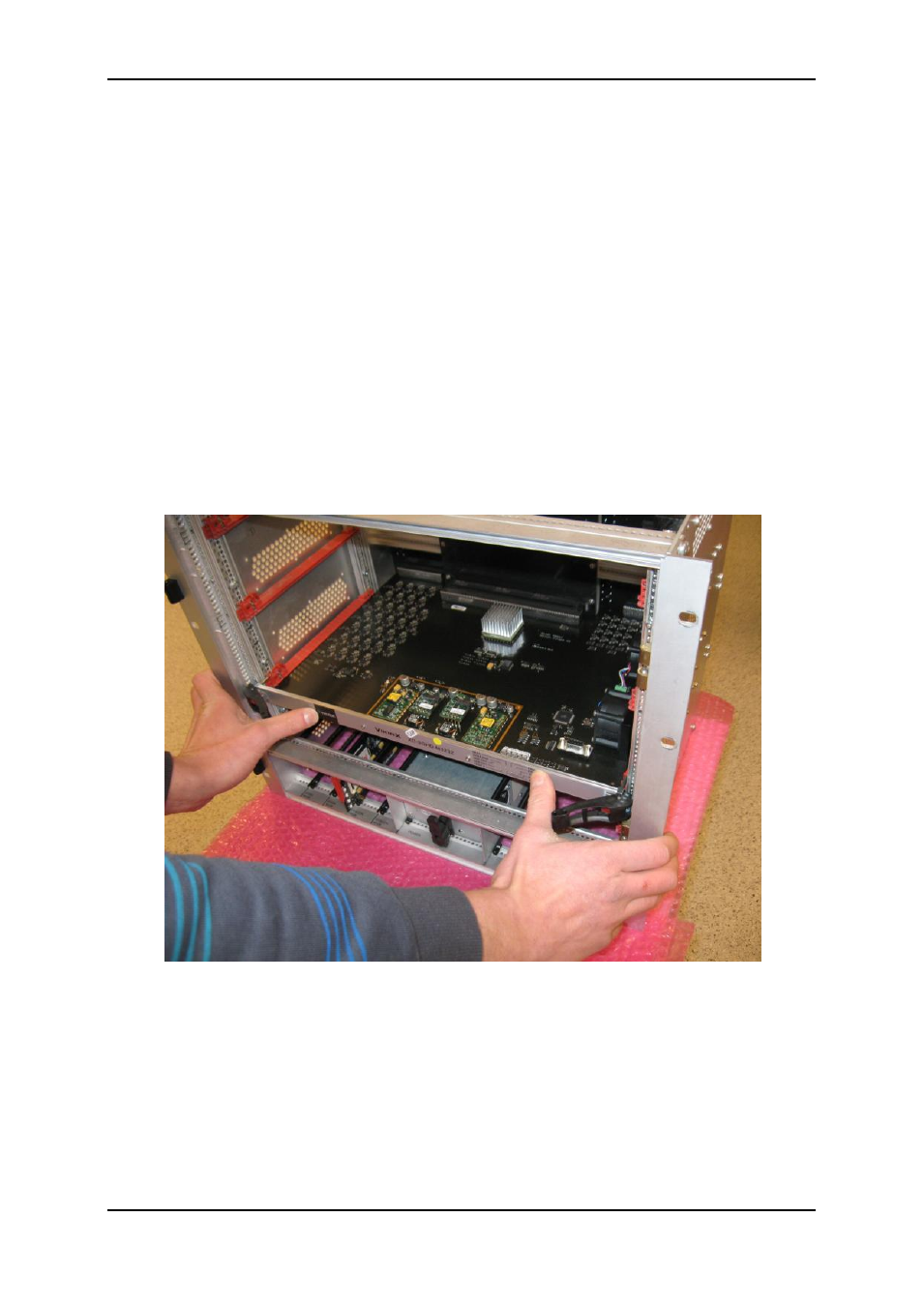

To insert an X-point card, slide the module along the plastic guide rails into its position. On
both sides of the card tray there is a hole next to each module slot. Use the two handles,
which are located on the front of the module to seat the module.
When the tip of both handles is just next to these holes, start to push the handles
simultaneously inwards the card.
