Modular 3G SD Video Rev. E

nevion.com | 9

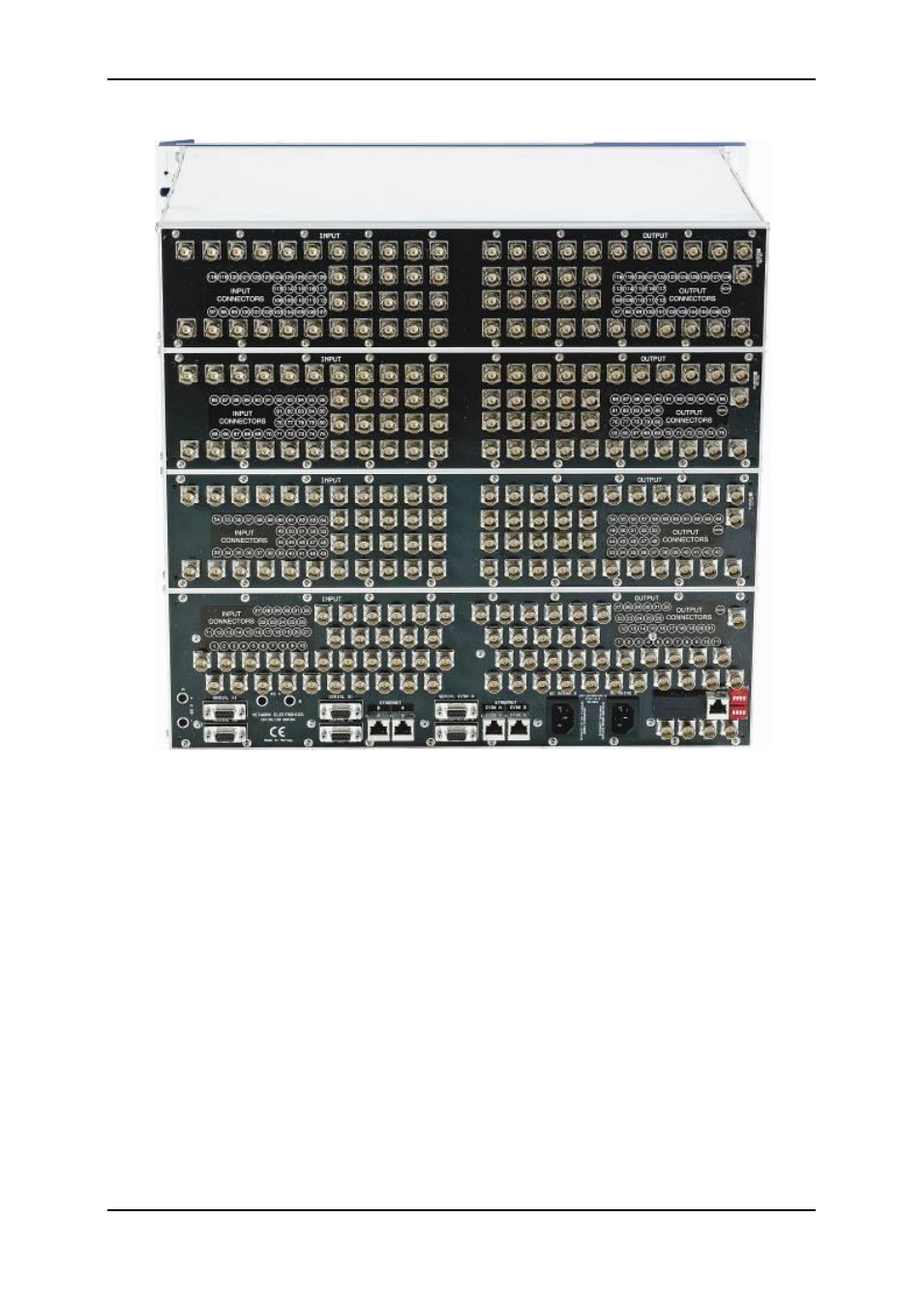

2.6 Rear view4

The following service connectors can be found on the rear of the Modular 3G/HD/SD-SDI
Router:

AC Mains A:

AC mains power supply.

AC Mains B:

AC mains power supply (if redundant AC/DC PSU is installed).

±48V A:

Optional DC battery power supply (screw terminals not mounted on
illustrated router above).

±48V B:

Optional DC battery power supply (if redundant DC/DC PSU is
installed) (screw terminals not mounted on illustrated router above).

Serial A1 and A2:

RS-232 or RS-422 for external control protocols.

Serial B1 and B2:

RS-232 or RS-422 for external control protocols
(If redundant Multicon is installed).

Ethernet A:

10/100Base-T Ethernet bus for external router control.

Ethernet B:

10/100Base-T Ethernet bus for external router control (if redundant
system controller is installed).

Serial GYDA A:

Not in use

Serial GYDA B:

Not in use

Ethernet GYDA A:

Not in use

Ethernet GYDA B:

Not in use
