16

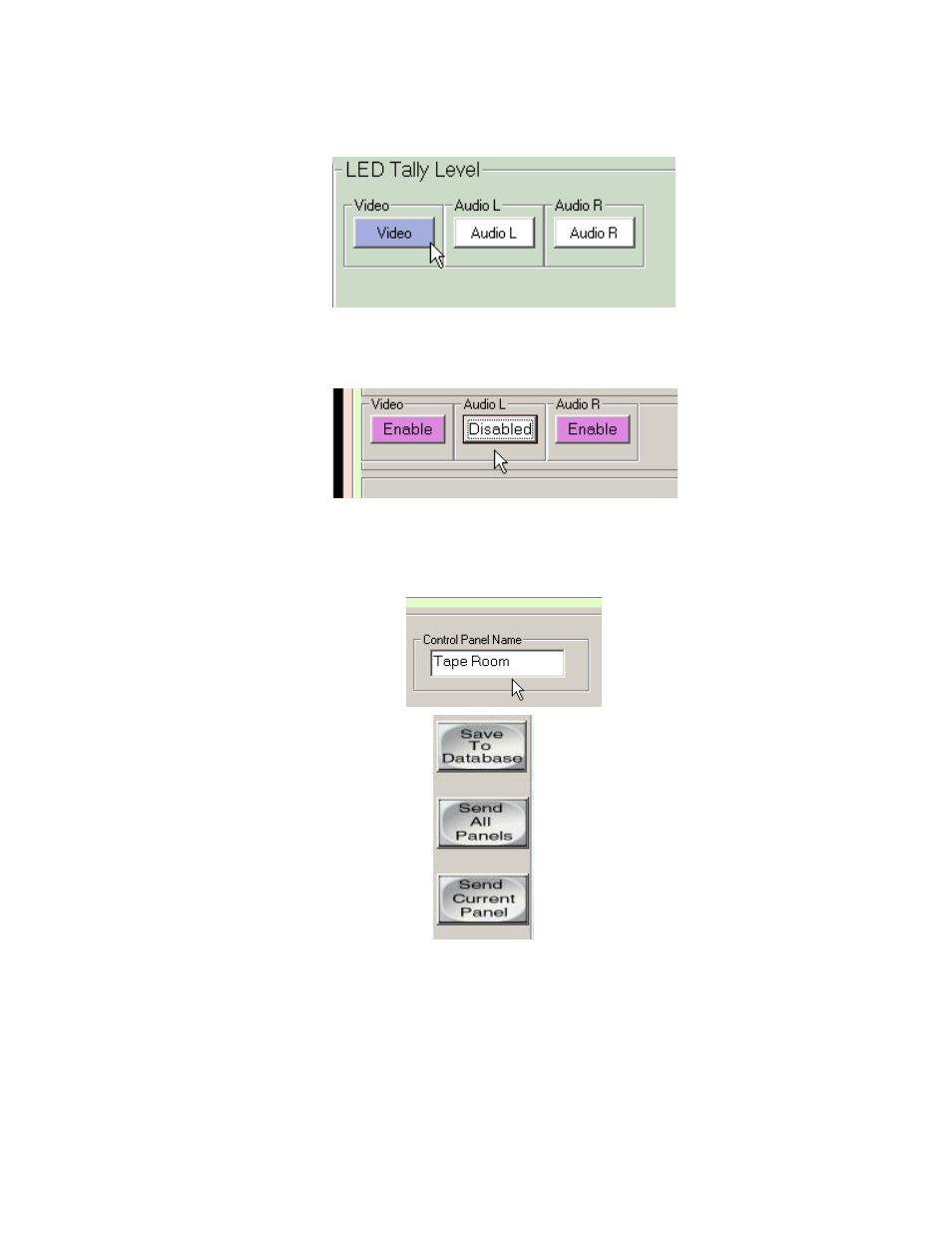

The “LED Tally Level” selects which level a non SCP Pushbutton panel’s lamps will
follow.
The Level buttons select which levels the panel will control.
Example; If the panel is to be a Video Only control panel, Disable all levels other than the
Video level. When the panel is switched, only the Video level will change.
If the routing switcher and panel have been previously programmed and the setup needs
to be saved to the database, click on the “Save to Database” button.
If changes are made to this screen, The panel can be named to indicate location if
desired.
“Save to Database” saves the data in G.R.I.P. but not to the routing switcher or the
control panel.
“Send Current Panel” downloads the current panel that is selected in the “Control
Panel Number” frame.
The “Send All Panels” button downloads ALL the setups for ALL 64 control panels to
the routing switcher.
After sending the Control Panel setup, press “Poll Current Selected Panel” to verify
your settings before closing the window.
