Accessing Heat Tracing
Circuit Information
To access information on a specific heat tracing circuit, press the appropriate yellow
or red key. Pressing these keys will directly access the information and functions
associated with that key. As a typical example, press the MAINTAIN TEMP key as
shown in Figure 11.

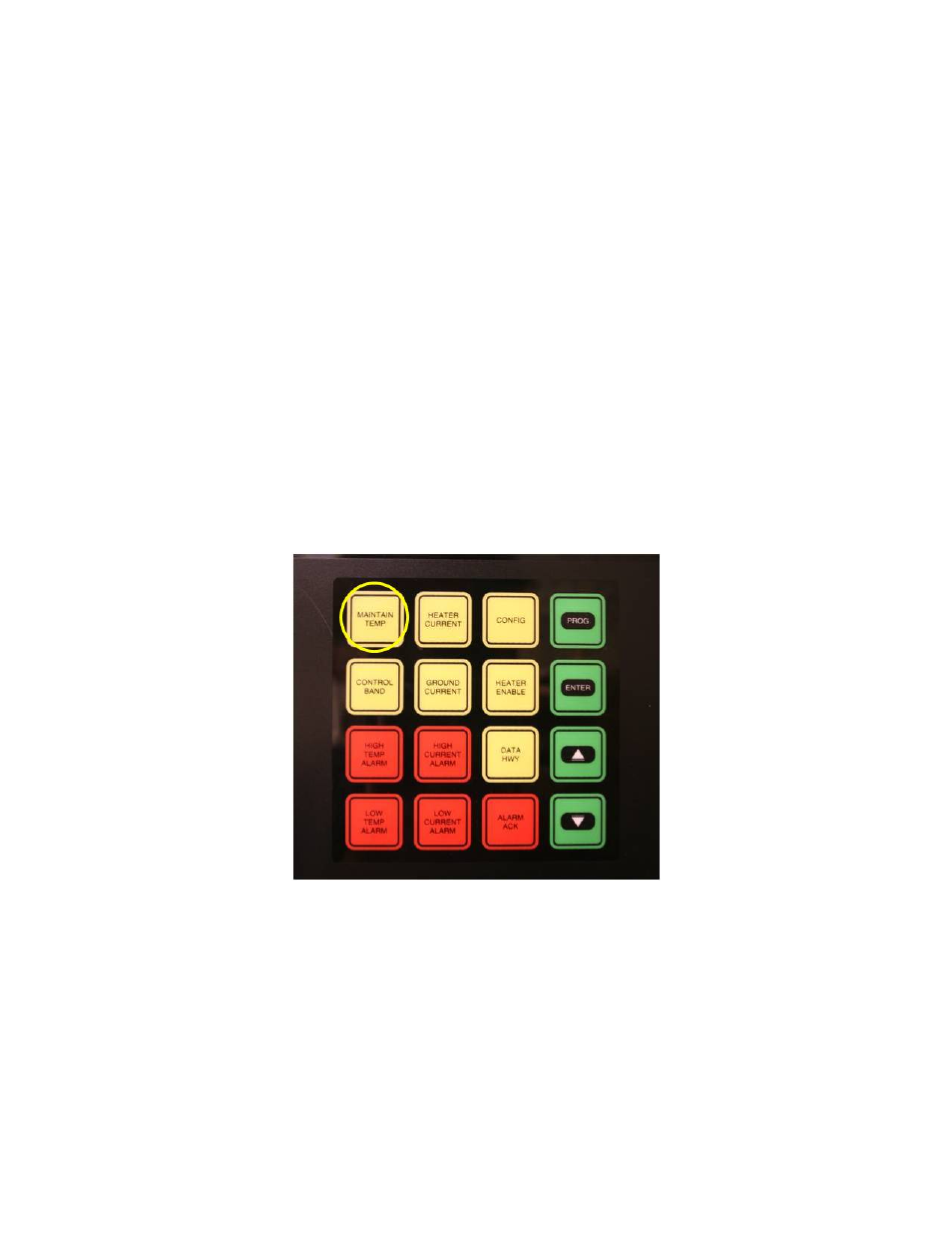

Figure 11: TCM18 Touch Pad
This will result in the display screen response as illustrated below in Figure 12.
PN 50316_0514
