TRACER TONE
VISUAL CONT.
TALK
OFF / POLARITY
AUDIBLE CONT. WARBLE PULSE
CORDLESS
INTERFACE
OVERLOAD PROTECTED
UNLOCK BATTERY TEST
AC / RING
TRIPLETT
REV NORM

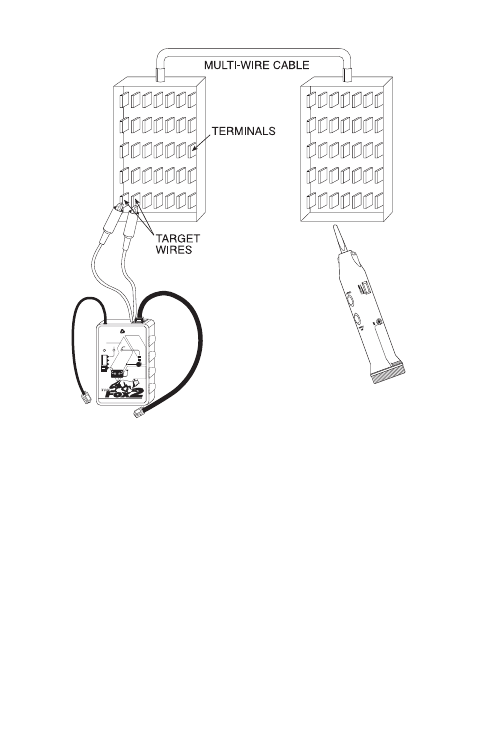

Figure 3
Floating or Line-to-Line Tracing
In the grounded method (also called Line to Ground), one
clip of the FOX or FOX 2 (either the red or green) is con-
nected to earth ground or a “fake ground”, and the other clip
is connected to the target wire. The target wire can be one
wire of a pair or a multiwire cable. See Figure 4. This method
creates the strongest tracer tone, and is often used when
wires are traced through walls or ceiling. It is also useful
for identifying a specific wire within a bundle of wires. If
