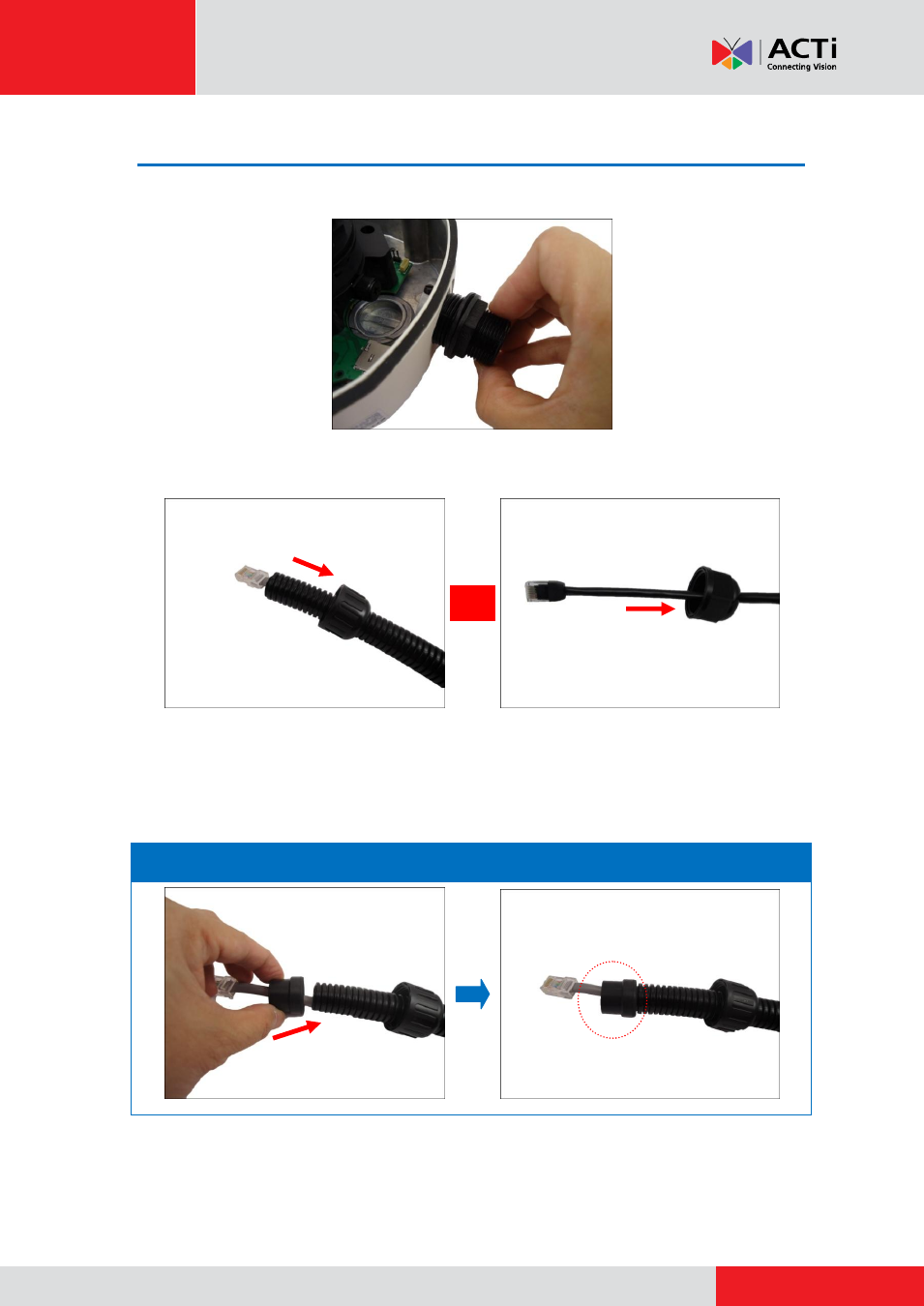

Step 5: Connect the Cable(s)

1.

Tightly attach the conduit gland body to the conduit hole of the camera.

2.

Insert the clamping nut.

Using Flex Conduit

Using Naked Cable

3.

Insert the sealing insert. For flex conduit solution, attach the sealing insert at the end of the

flex conduit.

Using Flex Conduit

or
