Installation Guide

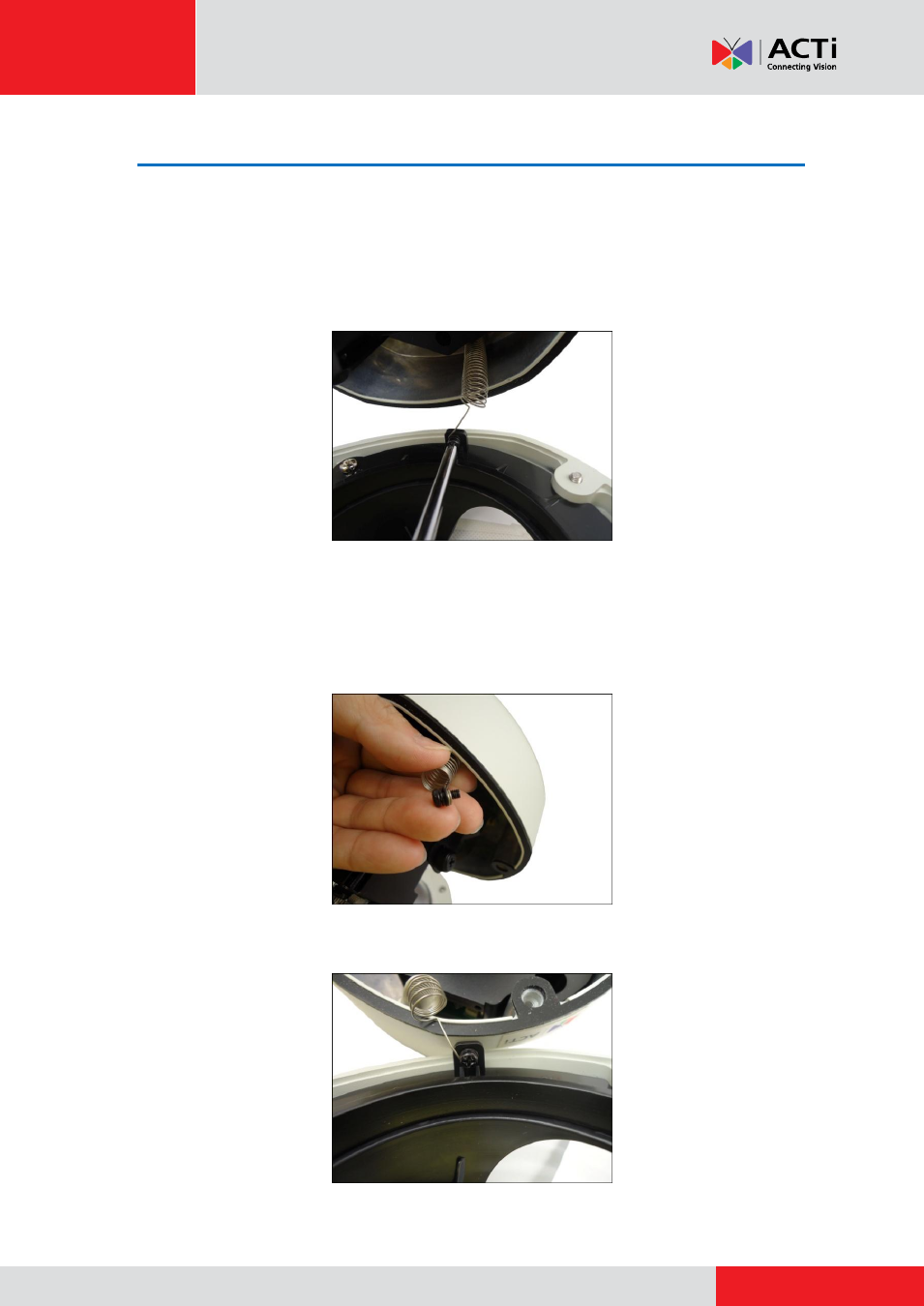

Removing the Dome Cover
For convenience of installation, the dome cover can be removed and then re-attached after the
installation is complete.
Removing the Dome Cover
Using a screwdriver, remove the screw securing the spring wire to the dome cover.
NOTE:
Hold the spring wire as the screw is being removed to avoid the sudden release of the
screw and cause it to fly in the air.
Installing the Dome Cover
1.
Fit the screw into the spring wire.
2.
Attach the screw to the dome cover using a screwdriver. Final installation should look like the
illustration below.
