Installation procedures, Step 1: drill the holes – ACTi Outdoor Dome on Straight Wall with L-Bracket Wall Mount User Manual
Page 3
Advertising
Installation Guide
Installation Procedures
Before installation, prepare the following tools:
Screwdriver
Wire Cutting Pliers
Step 1: Drill the Holes

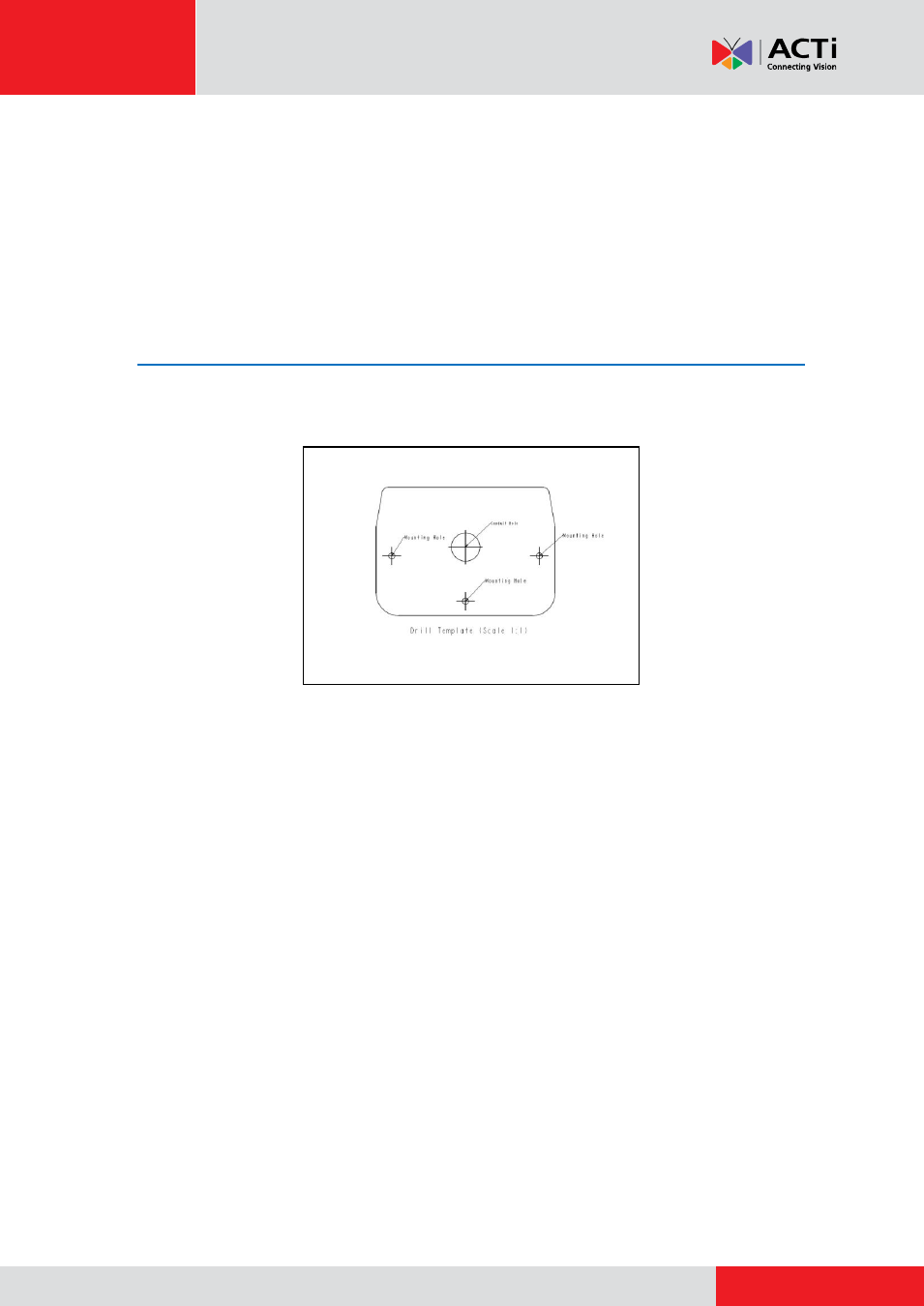

Using the drill template, mark and drill the mounting holes on the wall.
If the cables will pass
through the wall
, drill the conduit hole as well.
