CONTROLS AND COMPONENTS
NOTE:
PHOTOGRAPHS MAY SHOW NON-STANDARD EQUIPMENT AND OPTIONS

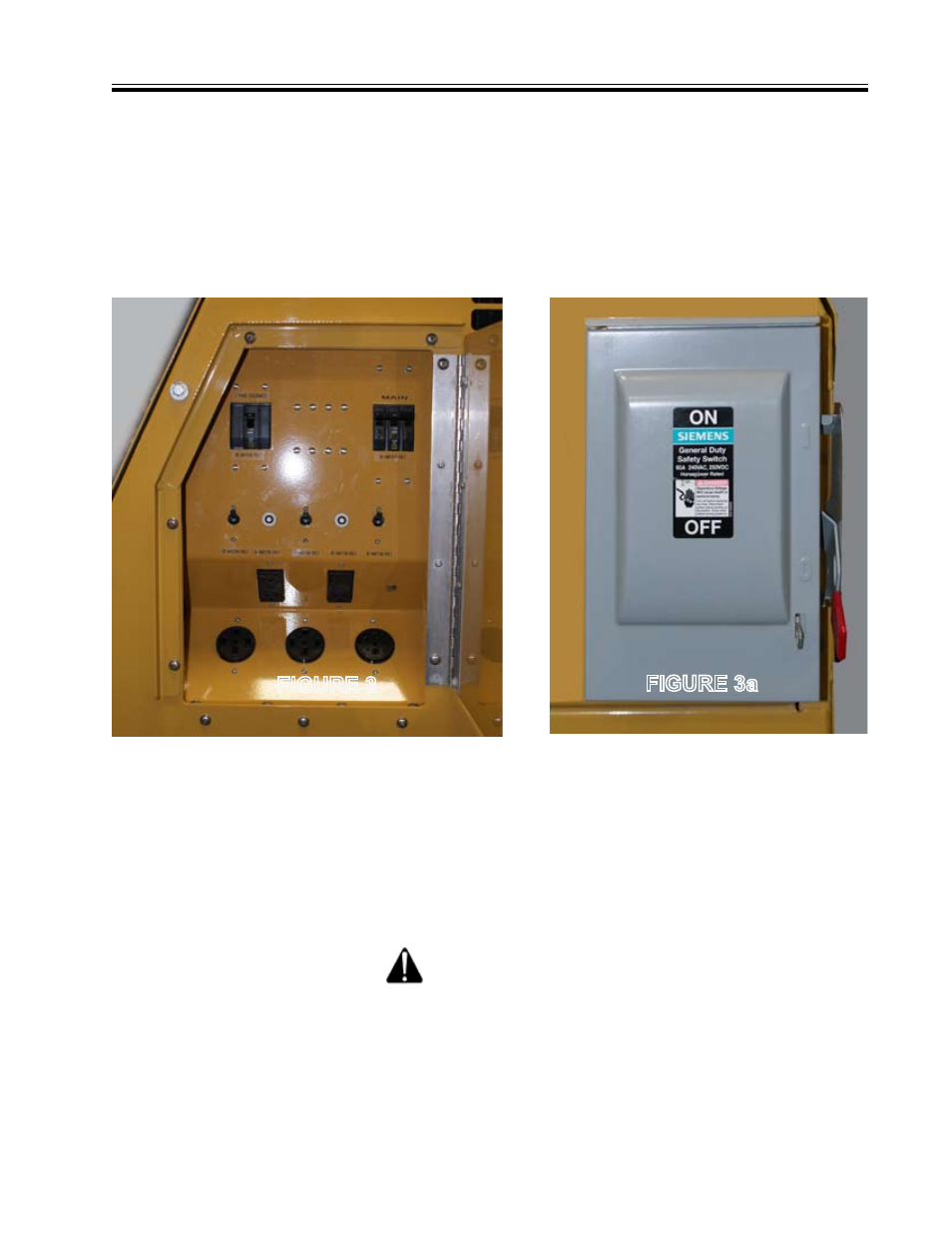

FIG. 3 CONVENIENCE OUTLET PANEL
Includes:
Main Breaker
Breakers and Switches
Outlets and Receptacles
(Contents of this panel may vary de-
pending on the specified configuration
of the machine.)
HIGH VOLTAGE! Do not attempt to
connect loads or test and repair
generator and ballast electrical
systems unless you understand and
are qualified to work on such systems.
SAFETY WARNING
FIGURE 3
FIG. 3a - 3-PHASE CONNECTION
BOX
Three-phase load connection ter-
minals are located inside this box.
FIGURE 3a
