KARRERA — User Manual 75
iDPM Operations
A keyer is associated with the Global channel by delegating the keyer, then
touching the
Global modifier button in the ME/Keyer matrix on the upper
left side of the Transform menu so it is illuminated ( Figure 32 ). Using the
Multi select button, more than one keyer can be selected at a time. The first
keyer matrix button selected with the Global channel turns blue while sub-
sequent buttons are outlined in blue when touched.
Some functions (Crop, Reverse, Skew, Aspect, and Post Transform) are
inactive for these Global Channels so they are grayed out. Global Channel
assignment information will appear in the ME/Keyer data pad (
PRI Glb
/ SEC Glb ).

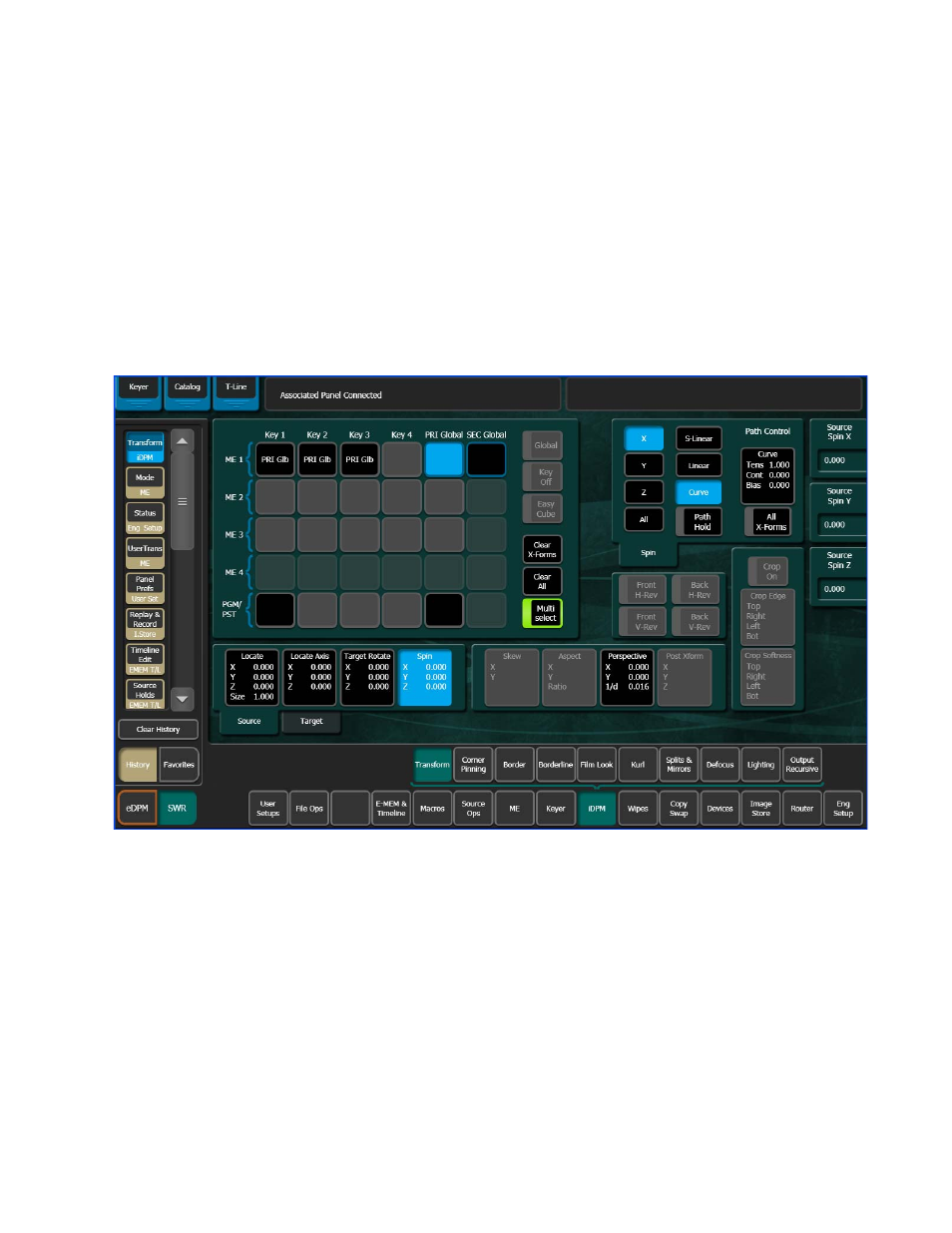

Figure 32. Transform Menu, Primary Global Assignment
Any transform type is applied across all keyers when they are assigned as
global, i.e. Locate, Rotate, Spin, and Perspective.
Note Keyer transform modifiers, i.e. Shadow, Splits & Mirrors, Output Recursives,
etc., are available on a channel by channel basis and are independent from
Global Transforms.
