78 KARRERA — User Manual
Section 3 — Video Mix/Effects

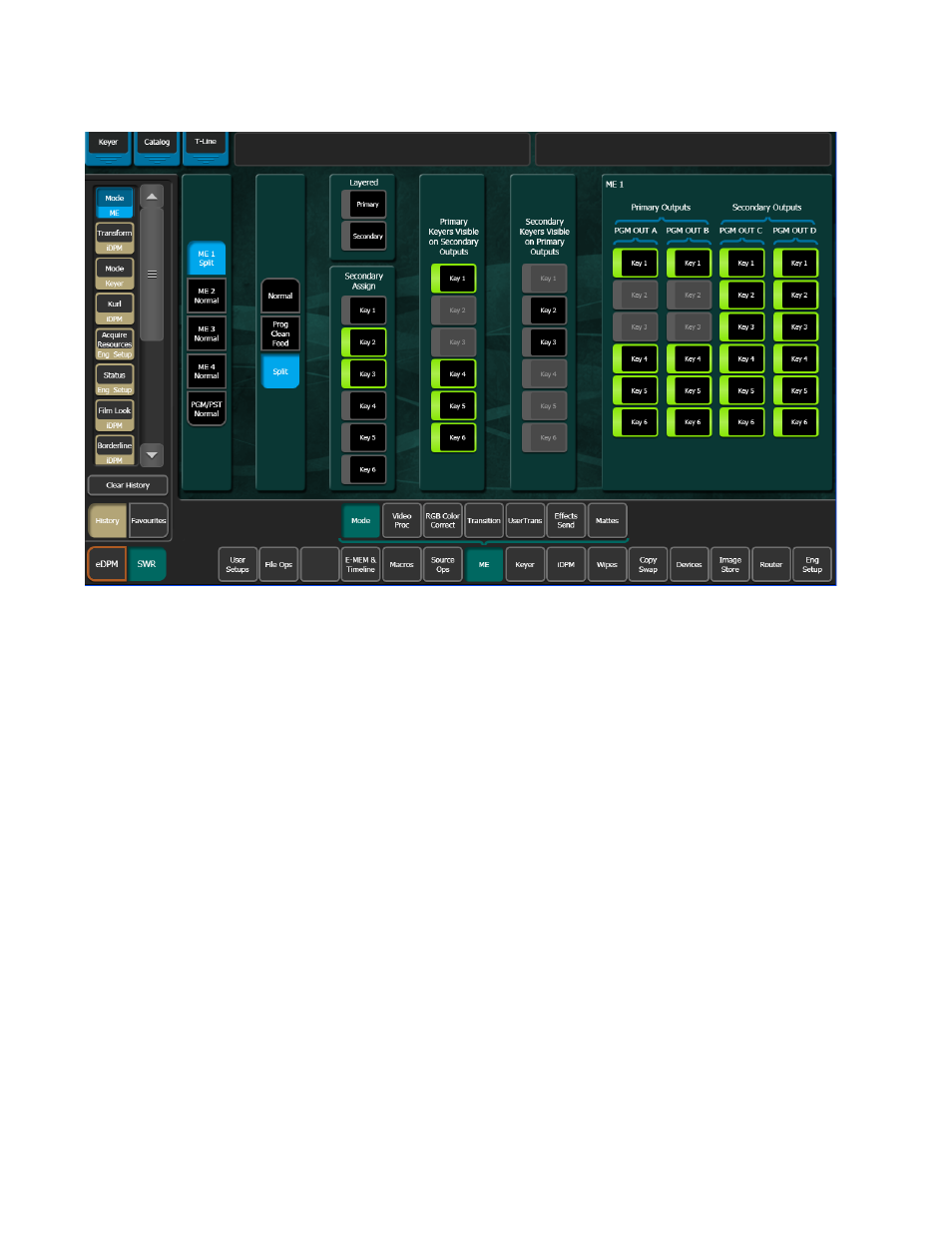

Figure 35. Mode Menu, Secondary Global Assignment Configuration
To split MEs and assign keys to the Secondary Global Channel ( Figure 35 ):
1. Touch ME , Mode to access the Mode menu.
2. Touch the ME button (far left) of the ME you wish to split for Secondary
iDPM Global channel assignment.
3. Touch the Split button in the pane second from the left.
4. Select and touch the keys you wish to assign to the Secondary Global
Channel in the Secondary Assign pane.
5. Repeat Steps 2-4 for each ME you wish to split and assign keyers to the
Secondary Partition.
6. Touch iDPM , Transform to go to the Transform menu.
7. Activate the keyers assigned to the Secondary Partition by touching the
assigned ME keyer button and touching the Global toggle button to
highlight it.
The ME keyer button displays SEC Glb to signify the keyers Secondary
Global assignment.
