Cabling and connectors | Camera connectors 3-7
3.2.4 RS232 serial connector

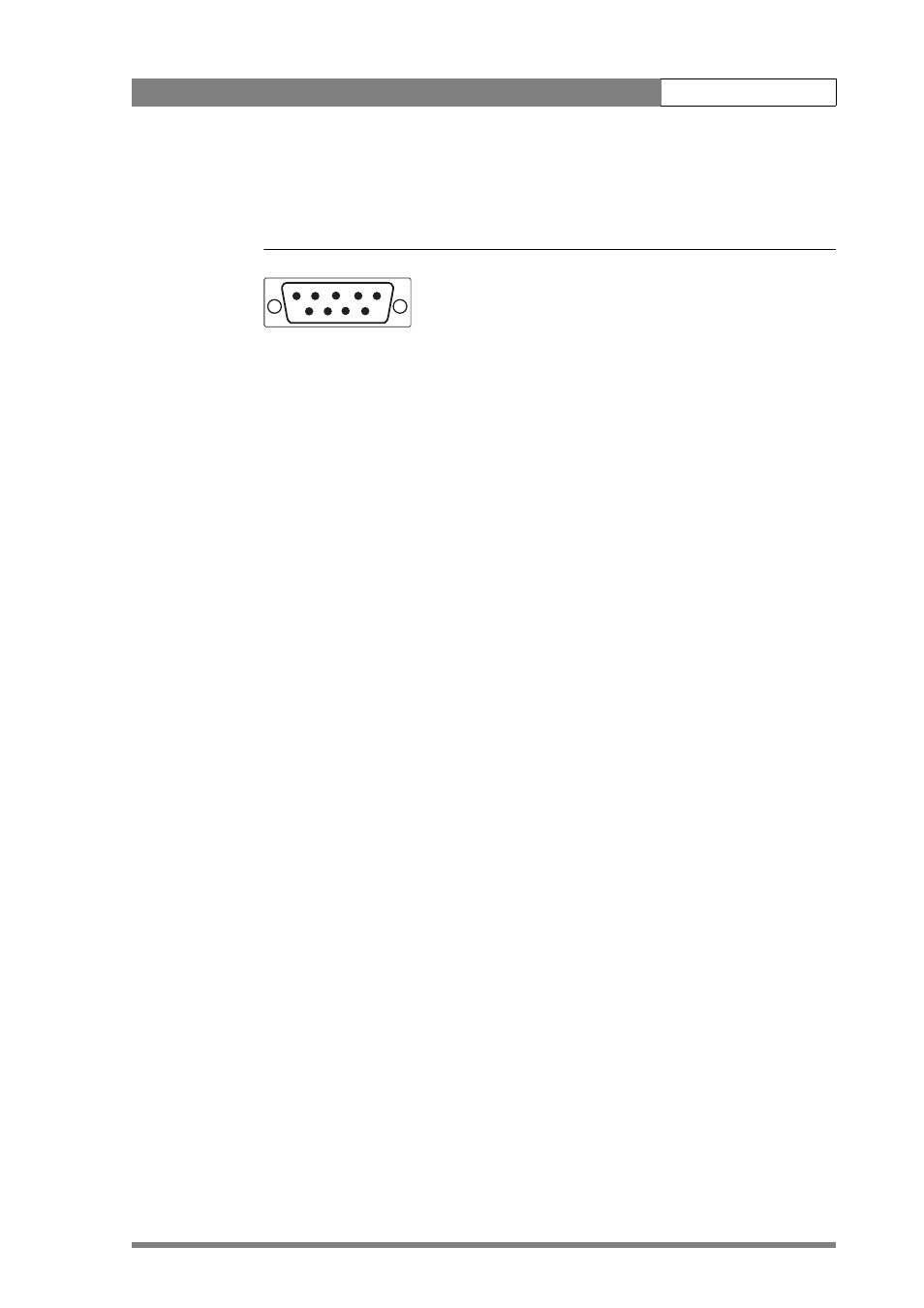

Figure 3-8. RS232 serial connector
5 4 3 2 1
9 8 7 6
1. SPARE
2. RS-RXD
3. RS-TXD
4. RS-DTR
5. RS-DGND
6. RS-DSR
7. RS-RTS
8. RS-CTS
9. +12V
SubD 9-pin male; panel view (X12)
