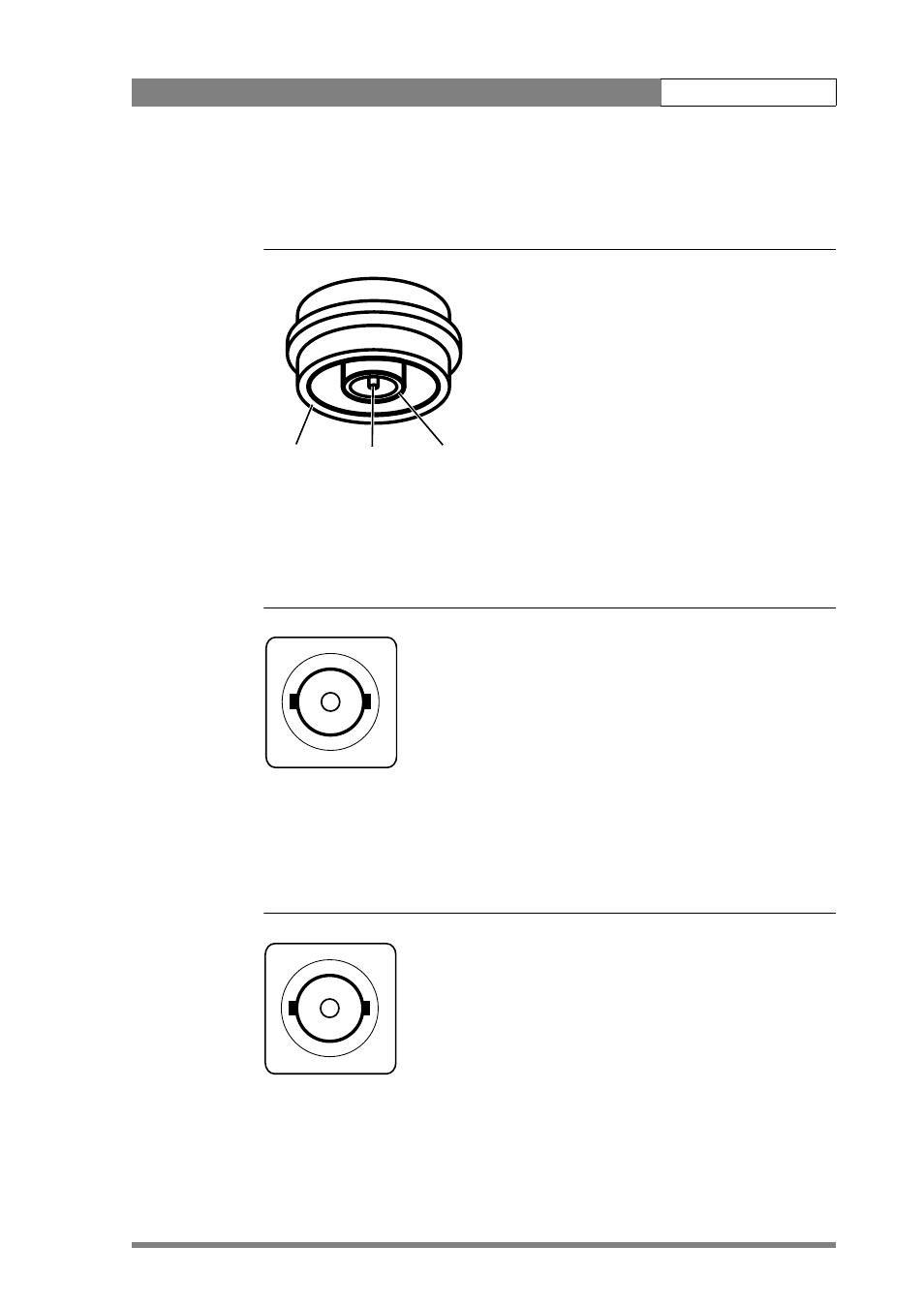

Cabling and connectors | Triax adapter connectors 3-9
3.3.1 Triax connector
Figure 3-10. Triax connector
3.3.2 CVBS output connector
Figure 3-11. CVBS output connector
3.3.3 Viewfinder / External video output connector
Figure 3-12. Viewfinder / External video output connector
Centre pin Outer shield Inner shield
1. Centre pin: Power and signals
2. Inner shield: Return
3. Outer shield: Camera housing GND
Panel view (X100)
This socket provides a 1.0 Vpp CVBS output video signal if
the optional encoder board is fitted.
BNC connector: panel view (X105)
This socket provides a 1.0 Vpp VBS output viewfinder
signal or the external video signal from the Base Station.
BNC connector: panel view (X106)
