27
DHP
Reference Manual

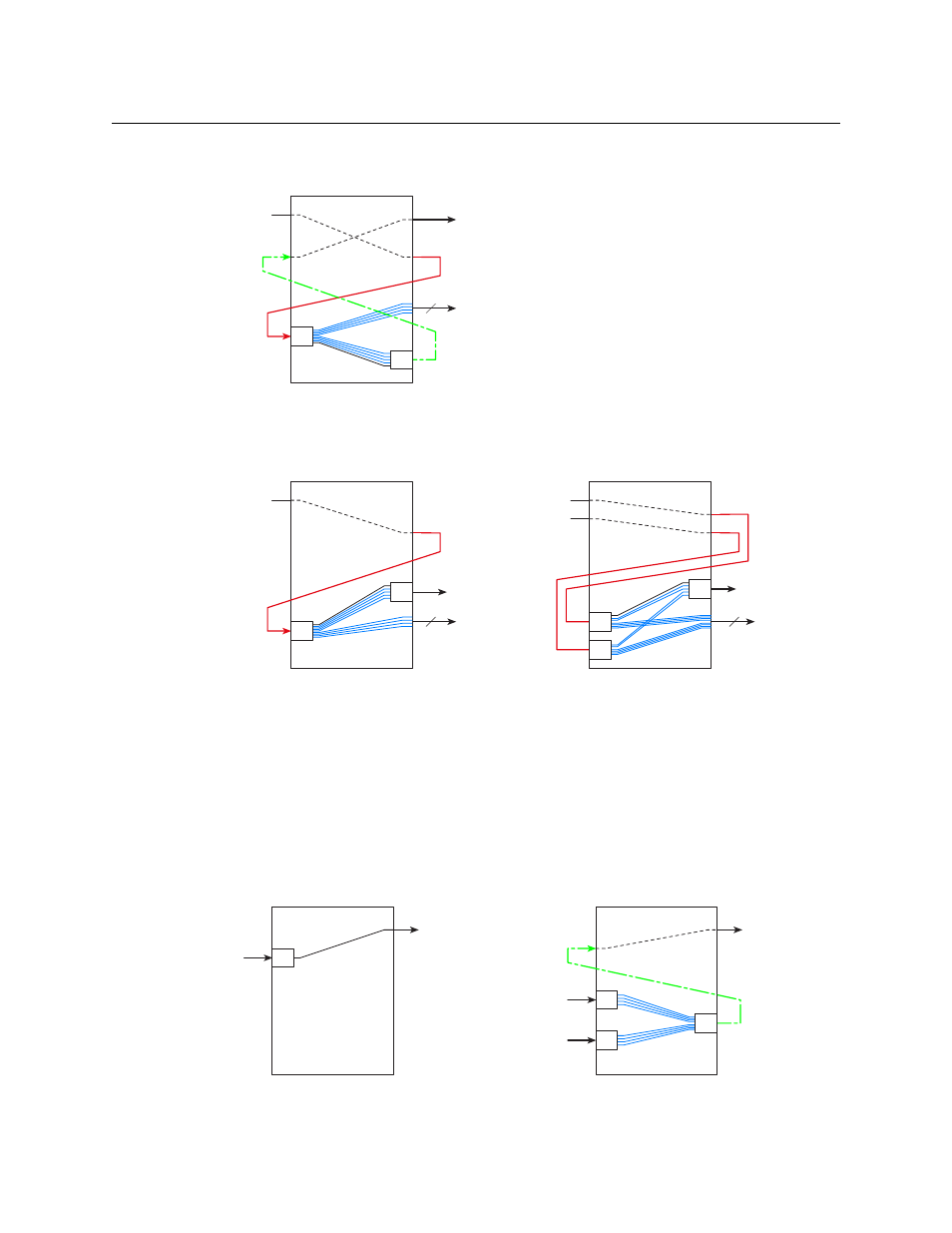

It is possible for some of the audio to be sent to the standard output. After the audio is disem-
bedded, it can be routed to any embedder output or MADI output:
A-L, Case 5
Standard to (Embedder + MADI)
A disembedder extracts the audio from the standard input. The audio is then distributed,
through the TDM matrix, to the necessary MADI ports.
When audio signals are drawn from two (or more) sources, two (or more) disembedder ports are
required.
The video signal (from one of the sources) is routed through the disembedder to an embedder
output. The embedder port
— chosen by the operator — is not part of the DHP core.
It is possible for some of the audio to be sent to the embedder output.
B-H, Case 6
Disembedder to Standard
In the simple case (no audio shuffling requested), the signal will pass straight through the
router. The audio embedded in the input is passed, without processing, to the output. (In this
situation, the DHP core is not required.)
Std In
MADI Out
Std Out
Std Out
Std In
EMB
DIS
Std In
MADI Out
Std Out
DIS
EMB
Std Out
Std In
MADI Out
Std Out
Std In
DIS
DIS
EMB
Std Out
DIS In
Std In
Std Out
DIS
DIS
EMB
In
In
No audio shuffling — DHP
core not used Audio shuffling
