NV9000 Web Suite
DHP Pages
DHP Disembedder
The ‘DHP Disembedder’ page shows details of the DHP core’s disembedders:

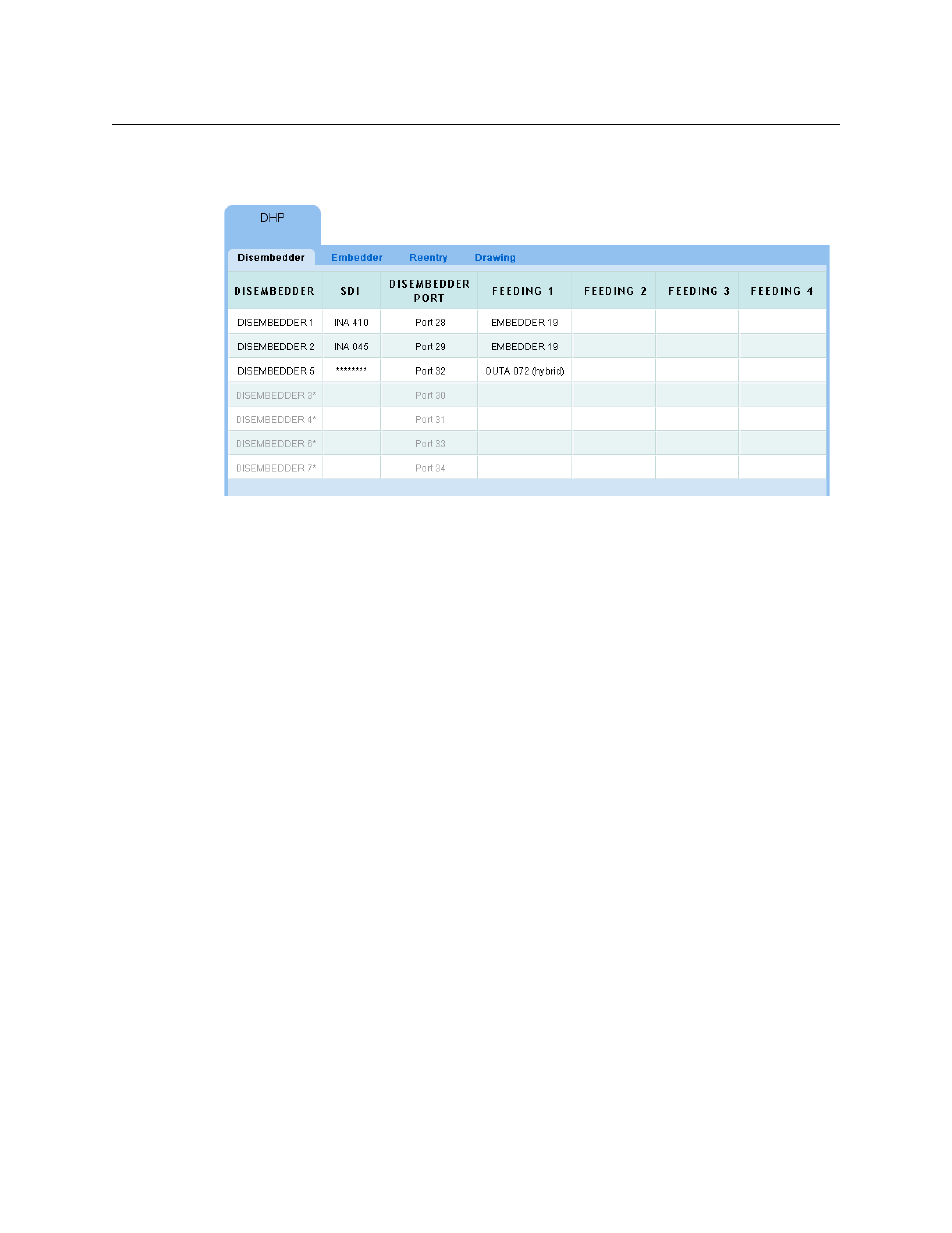

Fig. 3-3: DHP Disembedder Page
The page displays a table of disembedder ports in the DHP core, one row for each port. The
disembedder ports are identified in column 1. If a disembedder is not in use, its table row is
dimmed.
Entries in the column labeled ‘SDI’ show the name and port number of the standard video input
port connected to the disembedder port.
The entries in the columns labeled ‘Feeding 1’, ‘Feeding 2’, and so on, show output ports that are
fed by the disembedder port. (The number of “Feeding” columns is a DHP page preference.)
