30
DHP Service

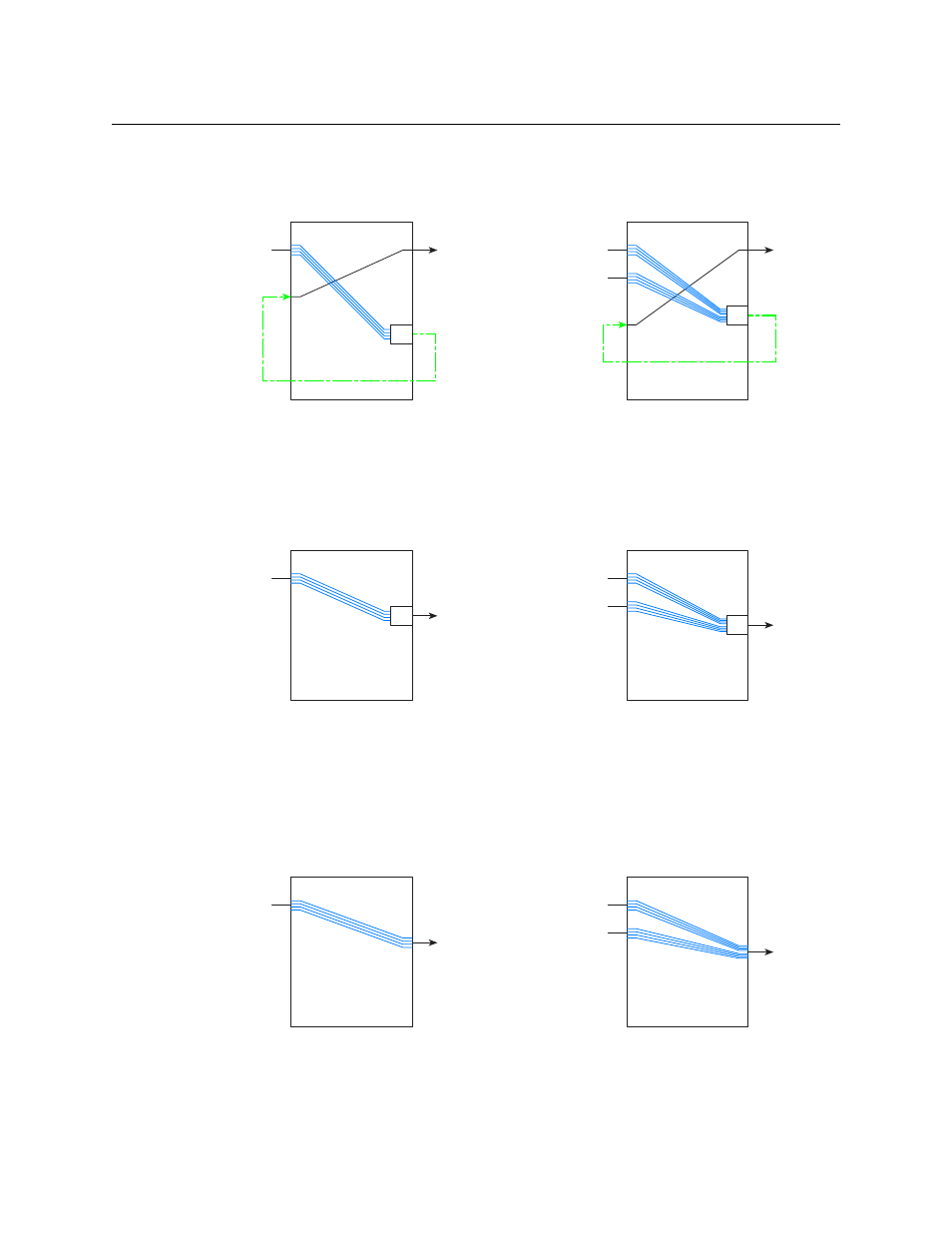

Examples
C-H, Case 11
MADI to Standard
An embedder receives the audio from the designated MADI input port(s) through the TDM
matrix. The embedded audio is then directed to the designated standard output.
Audio signals can be drawn from two (or more) sources.
The video signal at the standard output is not changed.
C-I, Case 12
MADI to Embedder
The designated embedder port receives the audio from the designated MADI input port(s)
through the TDM matrix.
Audio signals can be drawn from two (or more) sources.
The video signal at the embedder output is not changed.
The embedder port — chosen by the operator — is not part of the DHP core.
C-J, Case 13
MADI to MADI
The MADI ports (identified by the level set of the take’s destination) receive the audio from the
designated MADI input port(s) through the TDM matrix.
Audio signals can be drawn from two (or more) sources.
No video signal is involved.
MADI In Std Out
Std In
MADI In
EMB
MADI In Std Out
Std In
EMB
MADI In
MADI In
EMB
MADI In
EMB
MADI In
MADI In
MADI Out
MADI In
MADI Out
