32
DHP Service

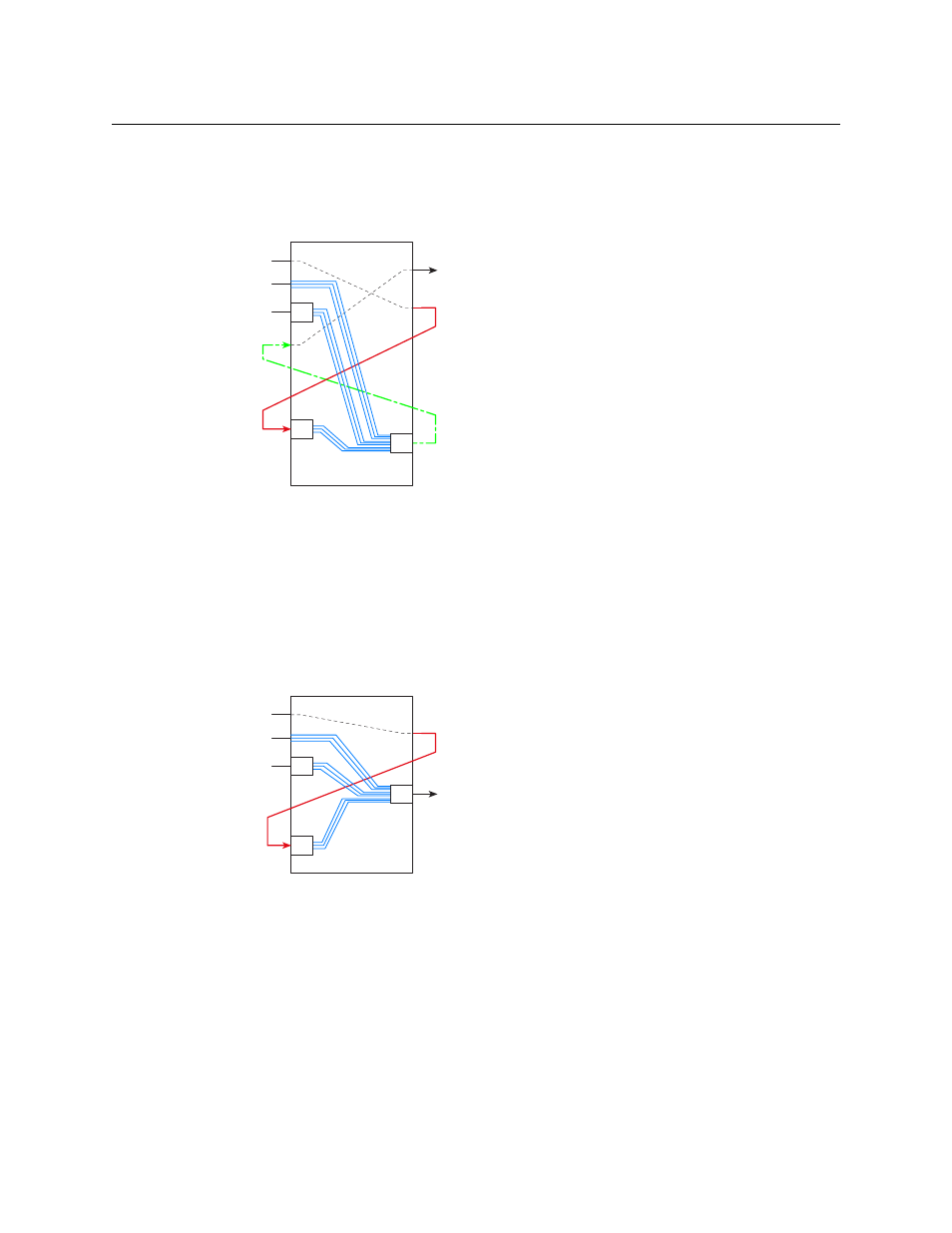

Examples
D-H, Case 16
Mixed to Standard
In the case of mixed input (standard, disembedder, or MADI), audio is extracted from the various
inputs according to the breakaway specified by the operator. If there are standard inputs among
the mix, a disembedder in the DHP core is required to extract the audio from each one.
The audio from the various sources is re-embedded and sent to the designated standard
output.
(Because the embedder card supports 16 audio channels, this scenario could potentially have
up to 16 input sources of various kinds.)
D-I, Case 17
Mixed to Embedder
In the case of mixed input (standard, disembedder, or MADI), audio is extracted from the various
inputs according to the breakaway specified by the operator. If there are standard inputs among
the mix, a disembedder in the DHP core is required to extract the audio from each one.
The audio from the various sources is re-embedded by the designated embedder output. The
embedder port
— chosen by the operator — is not part of the DHP core.
(Because the embedder card supports 16 audio channels, this scenario could potentially have
up to 16 input sources of various kinds.)
In
Std In
Std Out
MADI In
Std Out
Std In
DIS
DIS
EMB
In
Std In
Std Out
MADI In
DIS
DIS
EMB
