41
DHP
Reference Manual
DHP Embedder
The ‘DHP Embedder’ page shows details of the DHP core’s embedders. The page displays a table
of embedder ports in the DHP core, one row for each port. The embedder ports are identified in
column 1. If an embedder is not in use, its table row is dimmed.
The table always has 16 audio columns because each audio channel of the embedder port
receives audio from some source (even if it is only silence). However, as a page preference, you
can specify the columns (levels) that are displayed. Figure 3-4 shows the left portion of the page:

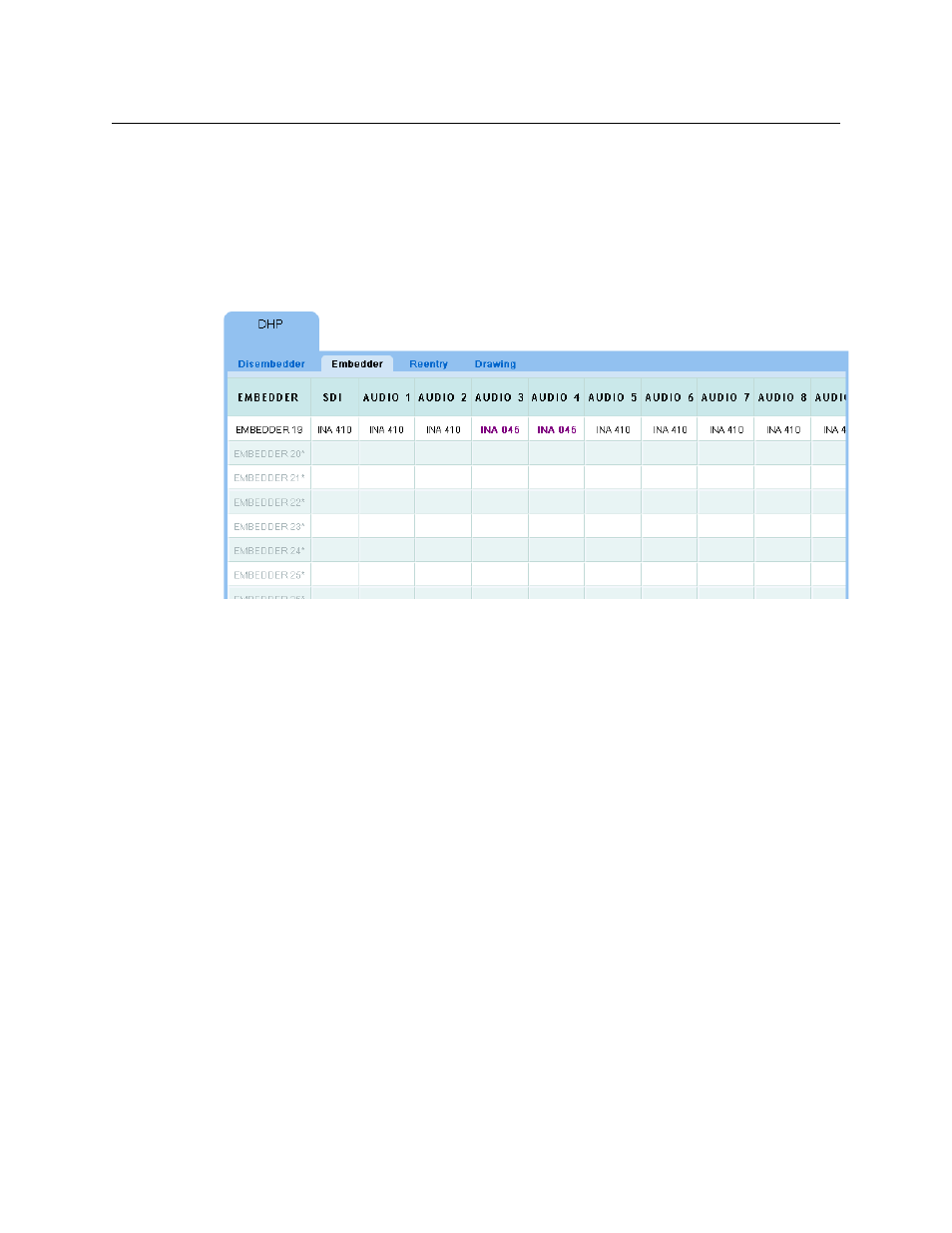

Fig. 3-4: DHP Embedder Page, Left Portion
Entries in the column labeled ‘SDI’ show the name and port number of the standard input port
connected to the disembedder port that feeds the video to the embedder port.
The entries in the columns labeled ‘Audio 1’, ‘Audio 2’, and so on, show the audio channels that
are fed to the embedder port. The audio signals can come from any disembedder in the DHP
core.
The audio channels are identified by the video port names and audio port numbers assigned to
them in NV9000-SE Utilities.
