Chapter 2 PFR500/E Installation Information
28 PFR 500/E Instruction Manual 20 September 2002
Installing a PFR500/E in an equipment rack
Use the information in this section to unpack the PFR 500/E chassis and mount in an
equipment rack.
Procedures include:
• Unpacking the Chassis
• Installing the rack mounts
• Installing the chassis with drive the support bracket
• Installing chassis without the drive support bracket
Unpacking the Chassis
Unpack the PFR500/E chassis, cables, and installation kit.
WARNING: A PFR500/E chassis is heavy. Two people should lift and
move it.
CAUTION: Save the chassis packaging. Use only PFR500 approved packaging to ship.
!

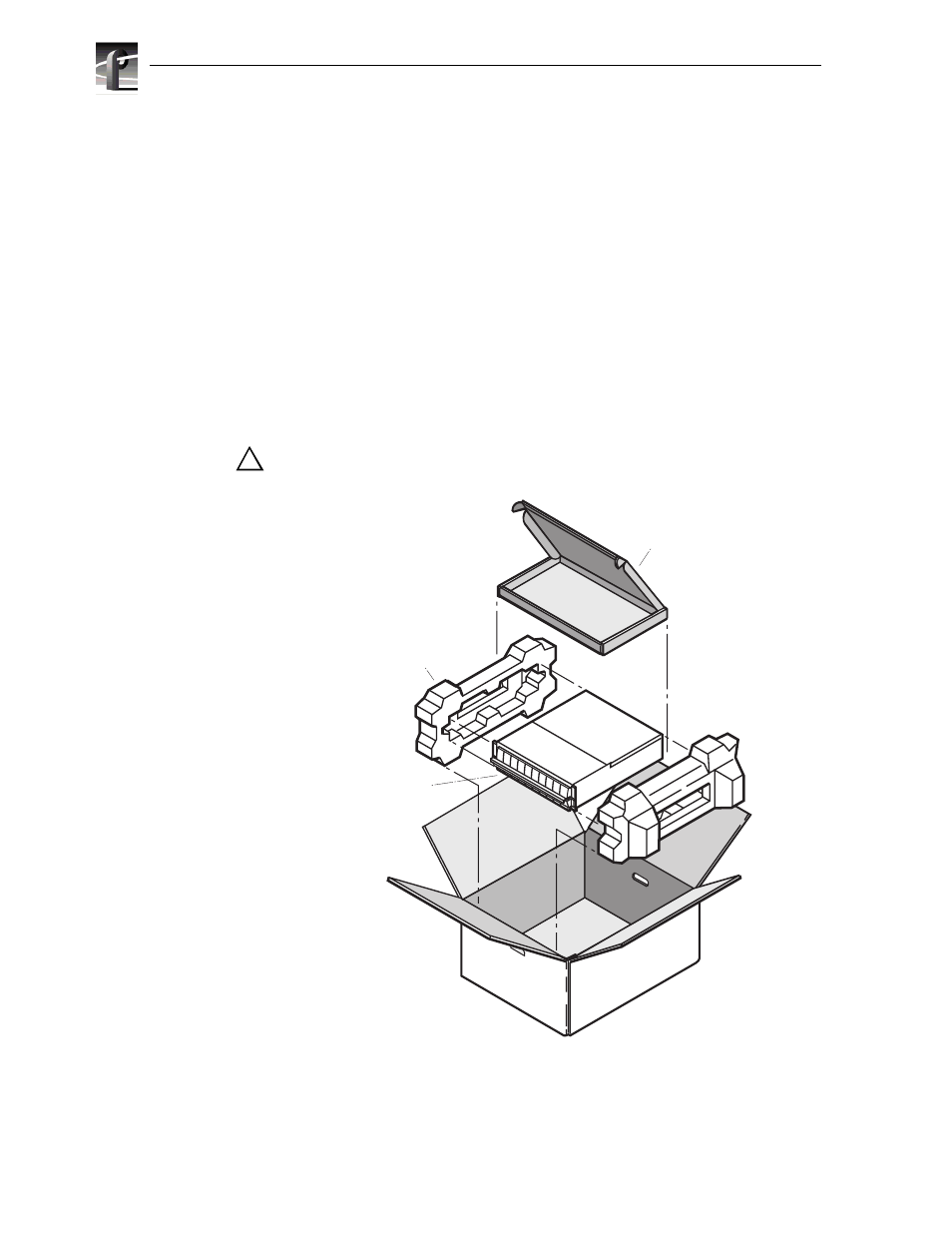

Box containing cables
and manuals
Packaging
Chassis with
shipping bar
8136-4
