Chapter 3 Servicing the PFR500/E
42
PFR 500/E Instruction Manual
20 September 2002
Installing disk module
To install a disk module:
1. Insert the replacement disk module into the empty bay.

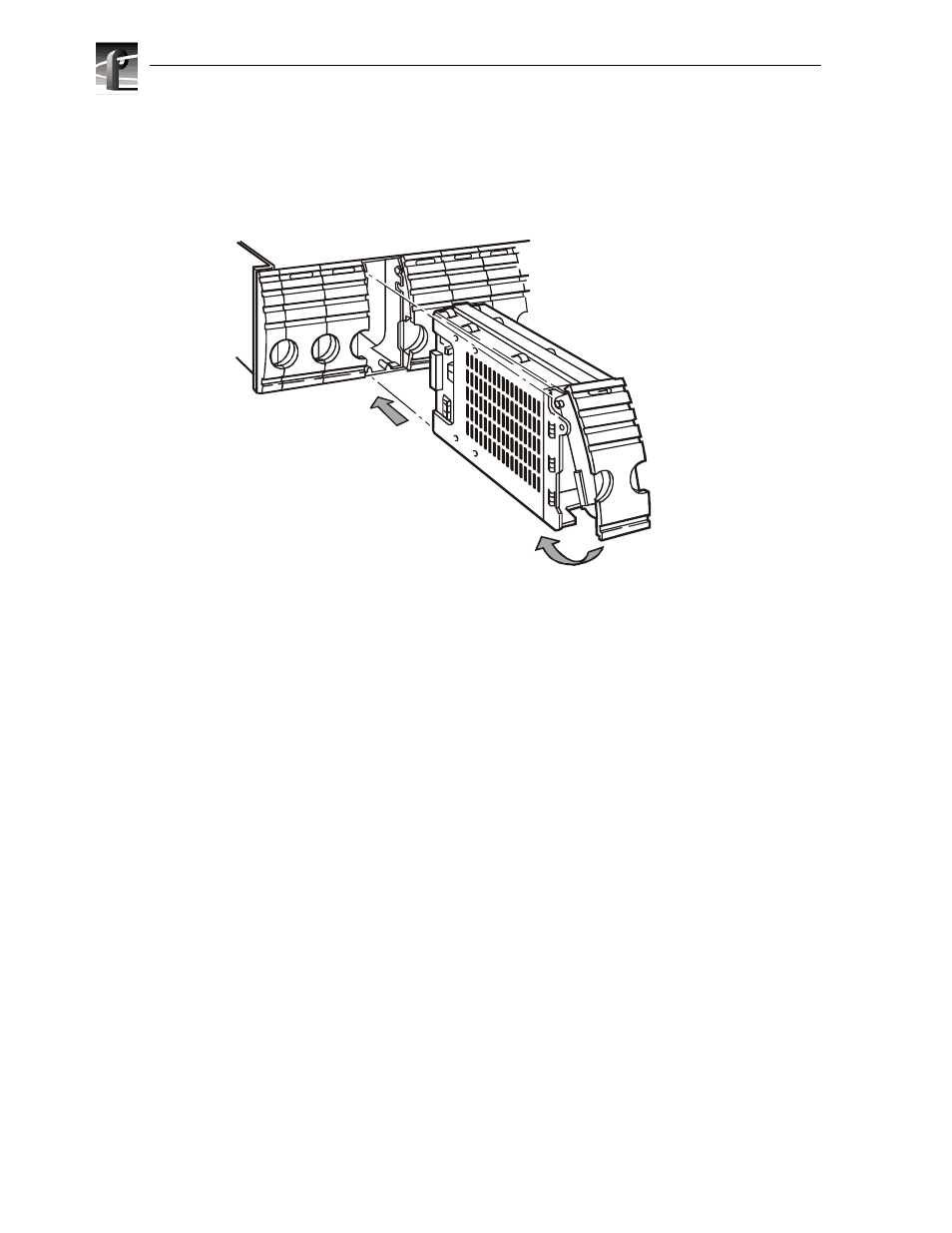

2. Press the release lever down and into place, as shown.
3. The disk spins up automatically.
4. Disk module rebuild begins in approximately 3-4 minutes. If not, refer to Chapter
3 of the Profile XP System Guide for instructions on forcing disk module rebuild
using GVG Disk Utility. Also refer to
“Interpreting rear panel status LEDs” on
for disk module LED status during rebuild. Afterward, check disk module
status using NetCentral or GVG Disk Utility.
5. Replace the drive support bracket, if used (refer to
“Installing the chassis with drive
the support bracket” on page 31
.)
