5. Connection and Startup
5 - 37 Planning and Installation - Rev. 3 / 04.2005

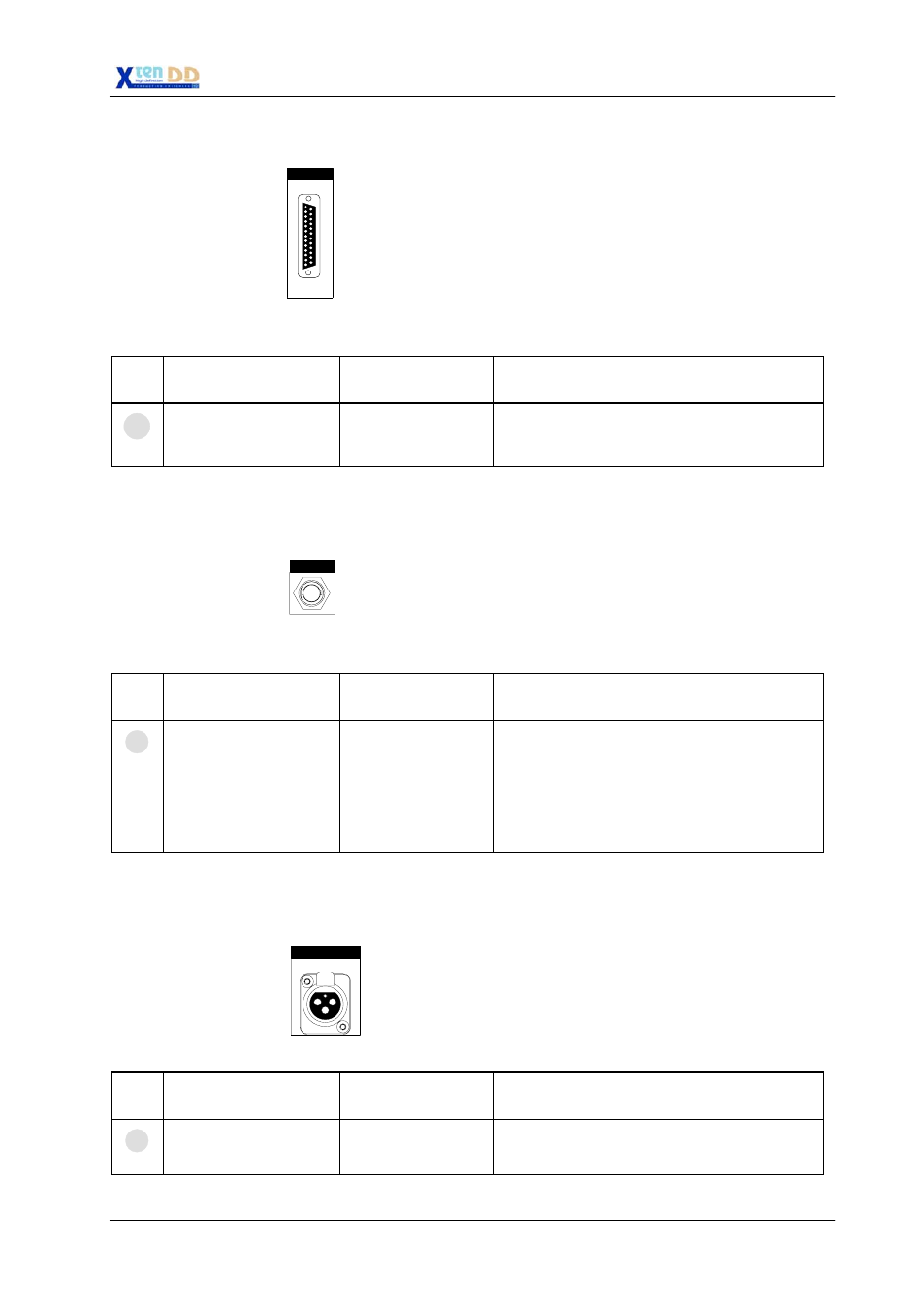

5.5.1.8 Modem
MODEM
J6
Item
No:
Socket / Connector
Description
Socket type
Connector type
Function
14
J6
MODEM
25-pin D-type
female
Modem connector for Philips
service personnel.
5.5.1.9 ALARM
ALARM
J19
Item
No:
Socket / Connector
Description
Socket type
Connector type
Function
17
J19
ALARM
BNC / 75 ohms Alarm connector.
Specification SMPTE 269M
Pin assignment:
Center +ALARM
Shield -ALARM
For details refer to section 5.7 below.
5.5.1.10 Time code / In
J7
IN
TIME-CODE
Item
No:
Socket / Connector
Description
Socket type
Connector type
Function
15
J7
TIME CODE IN
XLR female For future use.
