5

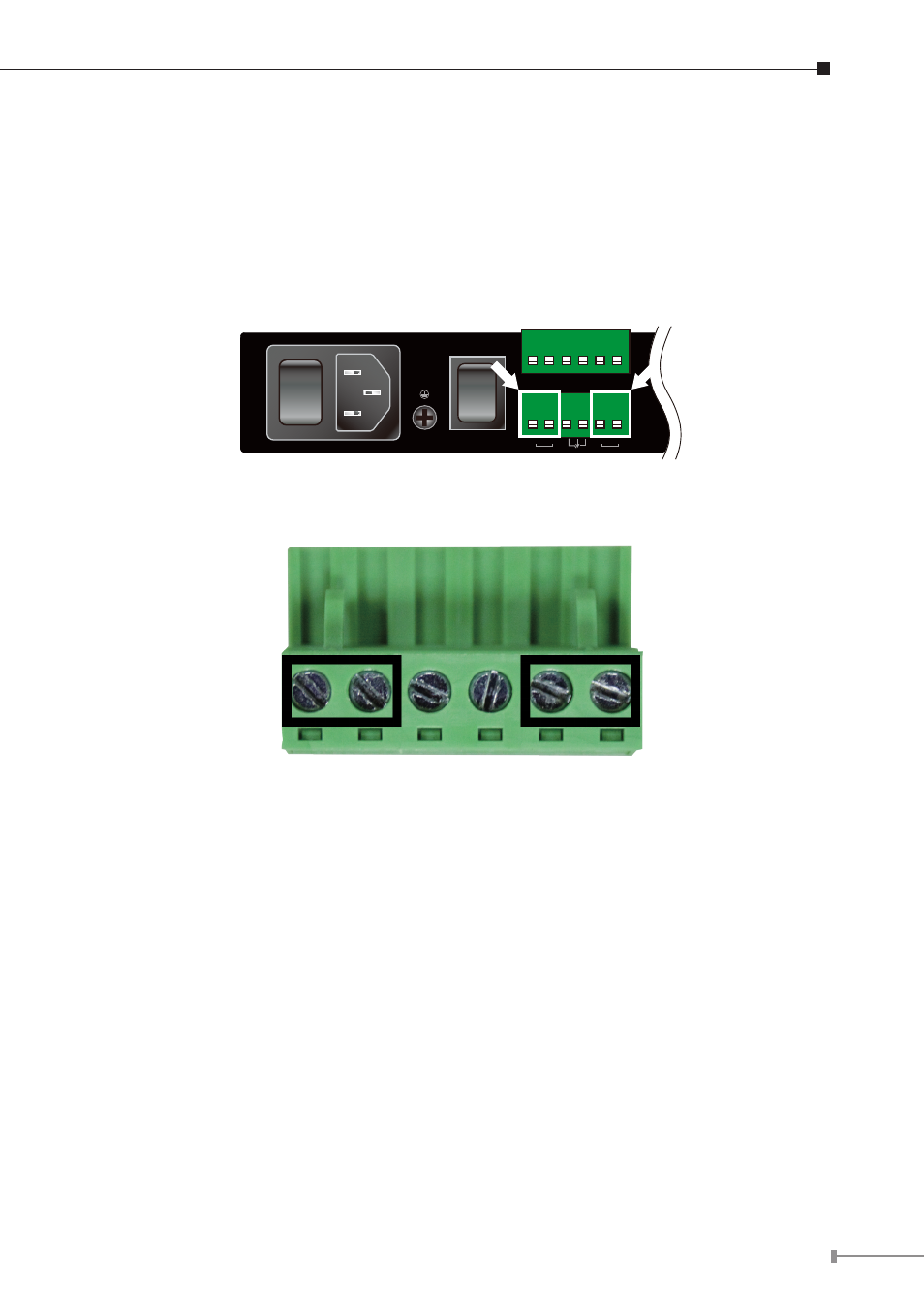

3. Wiring DC Power Inputs
The 6-contact terminal block connector on the rear panel of MGSD-10080F is used
for two DC redundant powers input. Please follow the steps below to insert the
power wire.
1. Insert positive / negative DC power wires into the contacts 1 and 2 for DC
POWER 1, or 5 and 6 for DC POWER 2.
100~240V AC
50/60 Hz
ON
AC PO
W
ER
OFF
DC POWER
ON
DC Input Range 36V~72V
OFF
Fault
GND GND DO 1 DO 0 DI 1 DI 0
DC 2 DC 1
V1+ V2+
1 2 3 4 5 6
1 2 3 4 5 6
2. Tighten the wire-clamp screws for preventing the wires from loosing.
1 2 3 4 5 6
DC 1
Fault Alarm
DC 2
+ - + -
Note
The wire gauge for the terminal block should be in the range of 12
~ 24 AWG.
