User’s Manual of ISW-1022M Series and ISW-1033MT
24
2.1.3 Top View
The top panel of the ISW-1022M series Managed Industrial Switch has one terminal block connector of two DC power
inputs and one fault alarm.

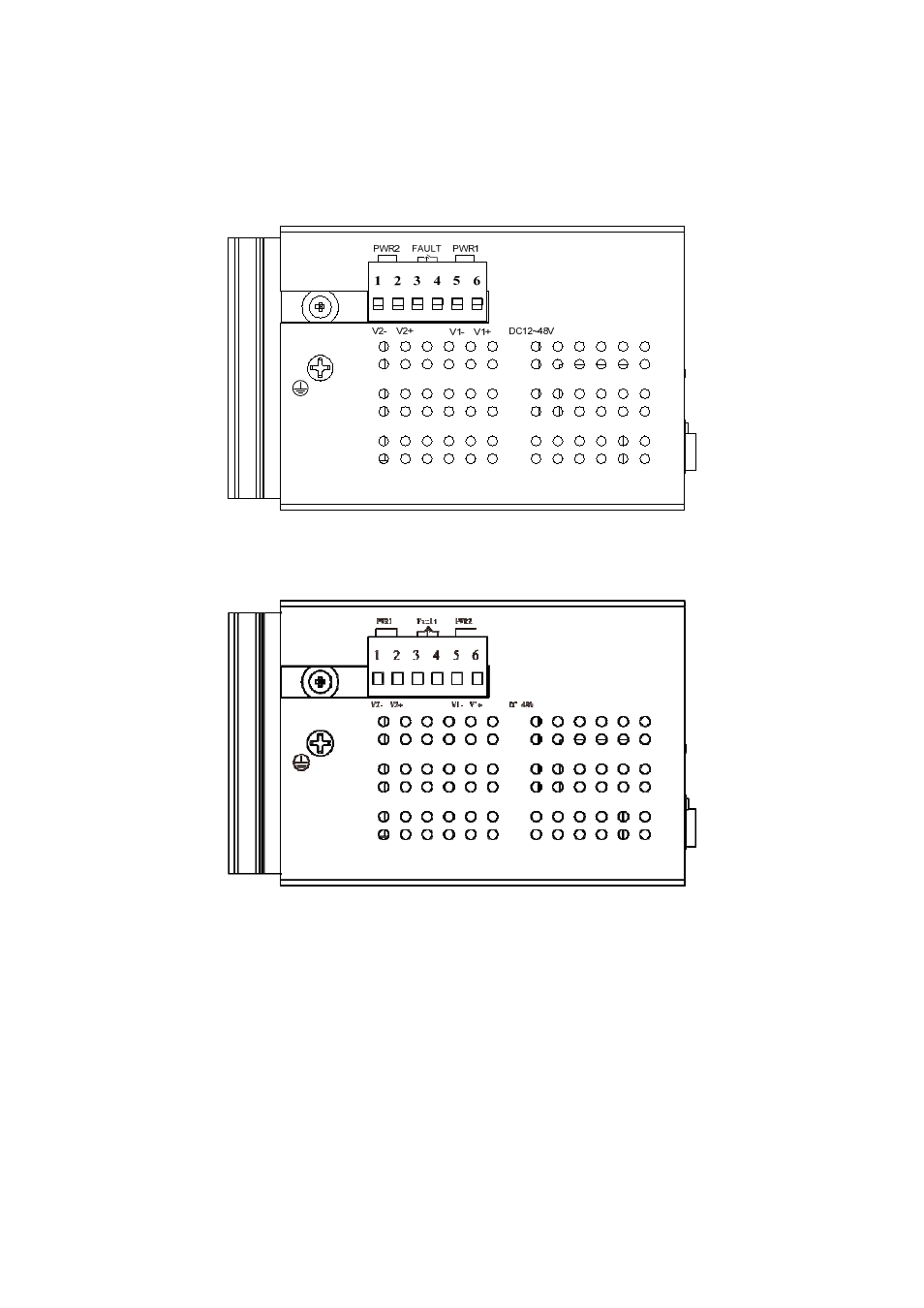

Figure 2-7
Top Panel of ISW-1022M / ISW-1022MT
Figure 2-7
Top Panel of ISW-1022MPT
