1
Switch
POE-161S POE-161
100 meters
Power
Data
Power
Data
PoE
Power Data
AC DC
PTZ Camera
1000Base-T UTP
PoE 1000Base-T UTP with PoE
Power Line (AC) AC
DC Power Line (DC)

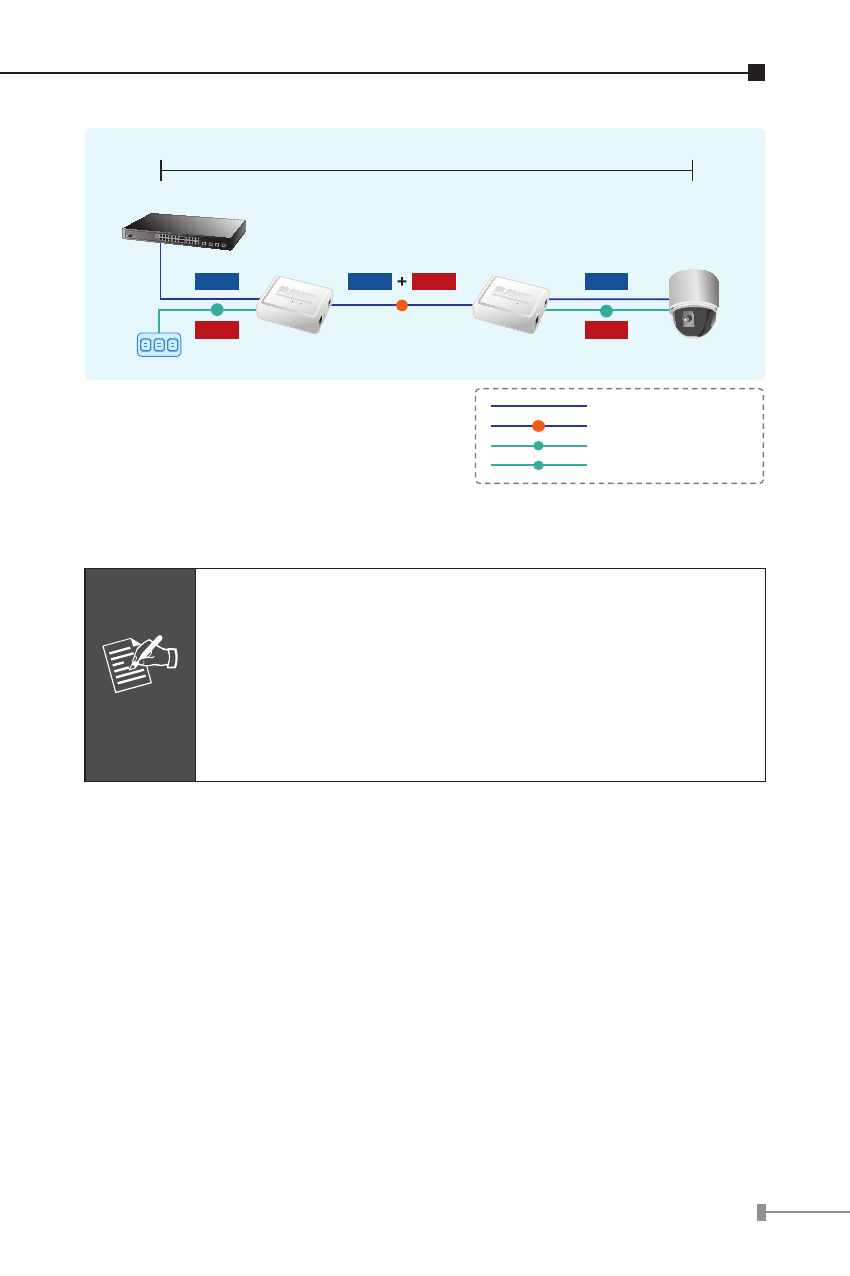

Figure 4: Connection architecture over POE-161/POE-161S
Note
1. According to IEEE 802.3at Power over Ethernet
pre-standard, the POE-161 will not inject power
to the cable if not connecting to IEEE 802.3at
devices.
2. Please ensure the output voltage is correct
before applying power to remote device.
5-2 POE-161S
The following section describes the hardware features of POE-
161S. Before connecting any network device to the POE-161S,
read this chapter carefully.
Before Installation
If your network environment is very difficult to find a power
socket for your AC-DC Adapter of networked device, the POE-
161S provide DC power for this Ethernet Device conveniently
and easily.
