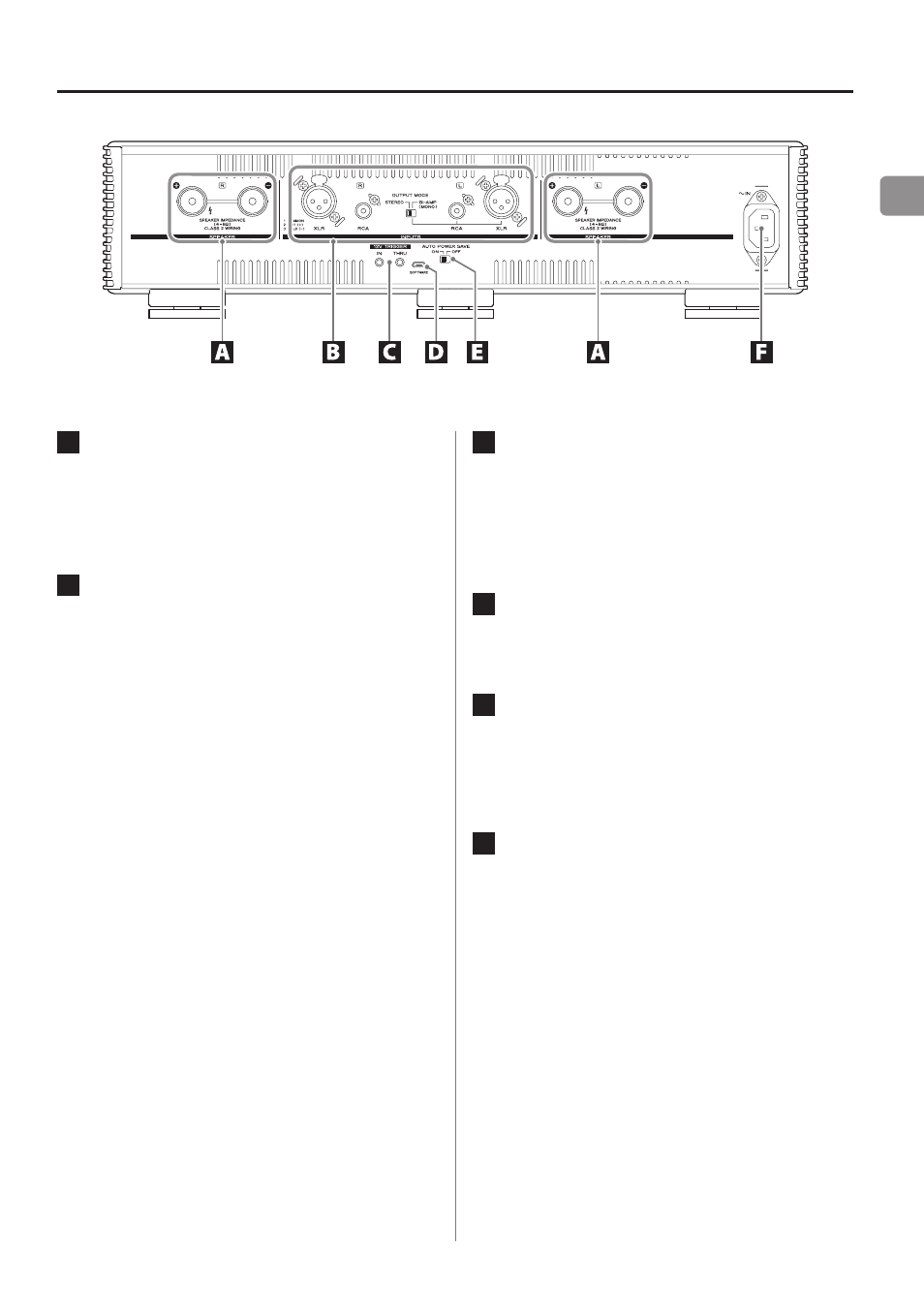

Names and functions of parts (back)
A SPEAKER terminals
Speakers that have nominal impedances between 4 Ω and 8 Ω
are supported.
Use commercially-available speaker cables to connect
the speakers.
B Analog audio input (INPUTS) connectors
Use these to input stereo analog audio. Connect these con-
nectors to the audio output connectors of a preamplifier or
another device such as a DAC that has a preamplifier function.
o This unit’s XLR connectors are 2: HOT.
Use commercially-available audio cables for connections.
RCA: RCA cables
XLR: XLR cables
OUTPUT MODE switch
This sets the output mode.
STEREO: stereo power amplifier (page 9)
BI-AMP: mono bi-amplifier (page 10)
V
Always disconnect speakers before changing
the output mode. Reconnect the speakers after
changing the mode.
Using with STEREO output mode
Connect this unit’s R input connector to the R output connec-
tor of the audio output device, and this unit’s L input connector
to the L output connector of the other device (page 9).
Using with BI-AMP output mode
Connect this unit’s L connector to the L or R connector of the
audio output device. The R connector of this device is not used
(page 10).
C 12V TRIGGER connectors
Use these to control power from an external source.
Do not connect anything to these connectors when not using
them (page 11).
Use commercially-available mono mini plug cables for
connections.
D SOFTWARE maintenance port
This is used for maintenance. Do not connect anything to this
port unless instructed to do so by our service department.
E AUTO POWER SAVE switch
This unit has an automatic power saving function.
If the automatic power saving function is set to on, the unit will
automatically enter standby mode if there is no audio input for
about 30 minutes.
F Power inlet (~IN)
Connect the supplied power cord here.
After all other connections are complete, connect the power
cord’s plug to a wall outlet.
V
Do not use any power cord other than the one
included with this unit. Use of other power cords
could result in fire or electric shock.
V
Unplug the cord from the outlet when not using
the unit for a long time.
