EN
9
Using STEREO output mode
Set the OUTPUT MODE switch to STEREO.
XLR pin assignment
1. COMMON
2. HOT (+)
3. COLD (−)
R L
Set the OUTPUT MODE
switch to STEREO.
Preamplifier or other device with a
preamplifier function (such as a DAC)
XLR c
ables
RC
A c
ables
Included p
ow
er c
or
d
Wall outlet
Connect using a set
of only one type.
Speaker Speaker
R L
Audio output
(PRE OUT, etc.)
R L
c

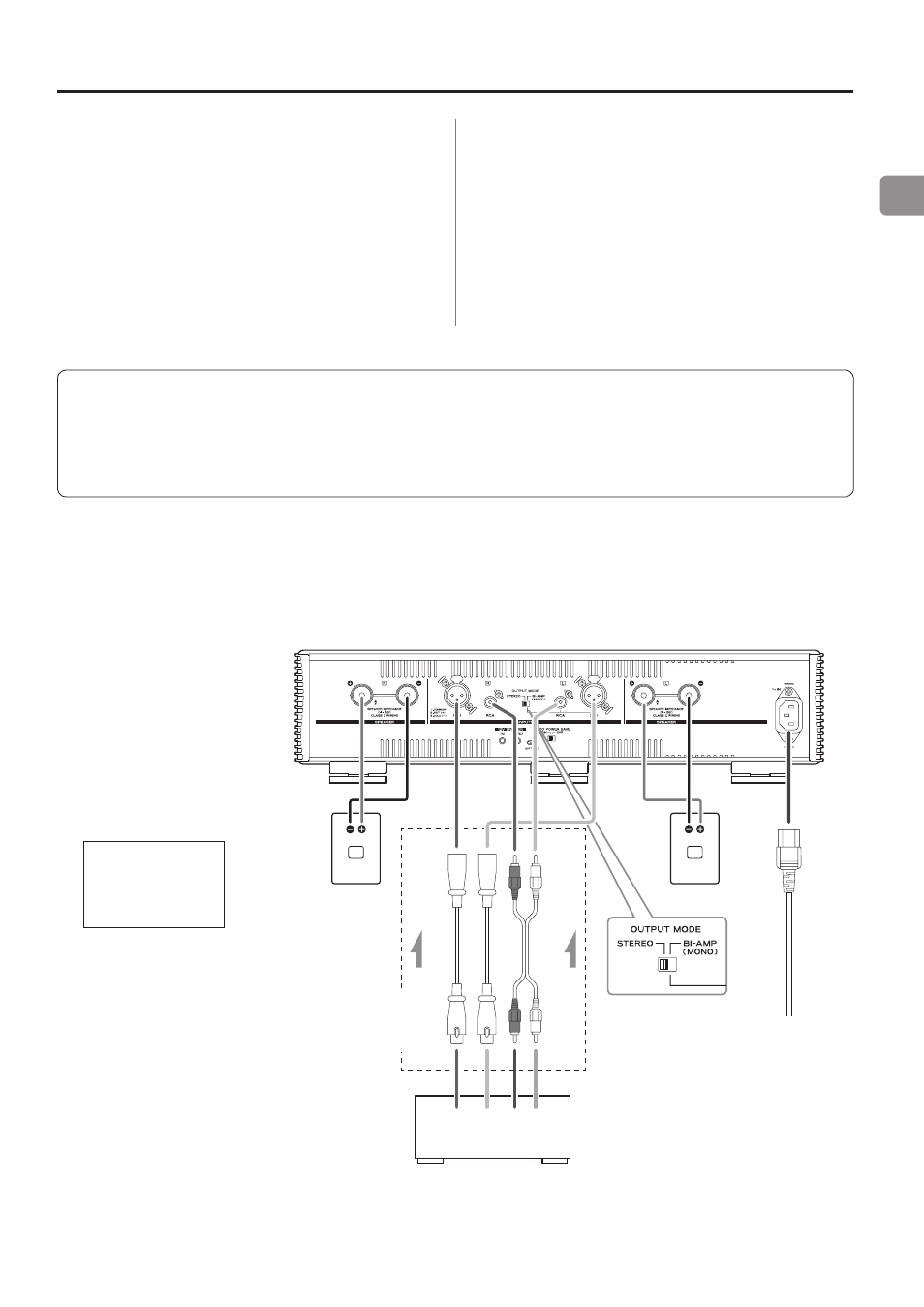

Connection example
V
CAUTION
This unit does not have a volume adjustment function. Connect
this unit to a preamplifier or another device such as a DAC that has
a preamplifier function, and use that device to adjust the volume. If
you connect this unit to a device that cannot be used to adjust the
output volume, you will not be able to adjust the volume during
playback. Sound might be output from the speakers at a very loud
volume, which could harm hearing or damage equipment.
Connections
The use of this unit’s two built-in amplifier channels depends on the
OUTPUT MODE switch setting.
Connection examples for each mode are provided below.
V
Complete all other connections before setting the STANDBY/ON switch to ON.
o Carefully read the manuals of the devices that you are connecting and follow their instructions when making connections.
o Do not bundle connecting cables with power cords. Doing so could cause noise.
o Connect all plugs completely.
