Channel View Output Section

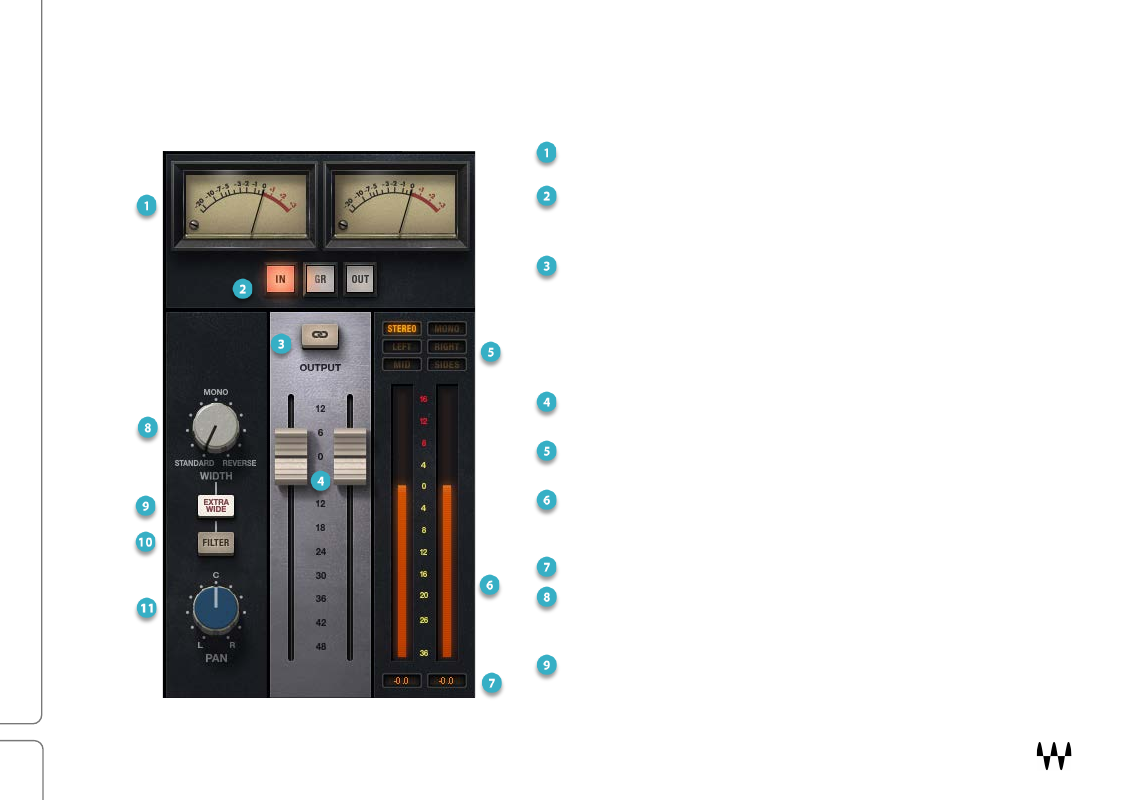

This section controls the output of the current plugin instance. There are four section: VU metering, output PPM
meters and output path, fader, and stereo imaging (stereo component).
VU Meters— 0V U = + 3 dBU. Use the calibration
screws to adjust reference level.
VU Meters Selector —Determines which buss will be
displayed on the VU meters: plugin input, gain
reduction of the compressor section, or plugin output.
Link (stereo component only)—Joins the faders. When
Link is Off, there are two faders that can be controlled
interdependently. When Link is On, one fader controls
both channels. If an offset between the faders has
been established when unlinked, it will be preserved
when Link is on.
Faders —Control the plugin output level. They do not
affect input or GR levels.
Output Selector sets the format of the plugin output
signal: stereo, mono, left, right, mid, and side.
Output Meters PPM ballistics with red clip indicators.
Clip indication at 0 dBFS. Click on the meter to clear
indicator.
Peak Level Indicator— Click on the meter to clear.
Stereo Width —Shapes the track’s image from normal
full stereo (Standard) to mono to reversed full stereo
(Reverse).
Extra Wide — A width enhancer that lets you spread
the sound image wider than the loudspeakers. It’s an
aggressive effect that alters the signal’s phase
