27

Overview of Components

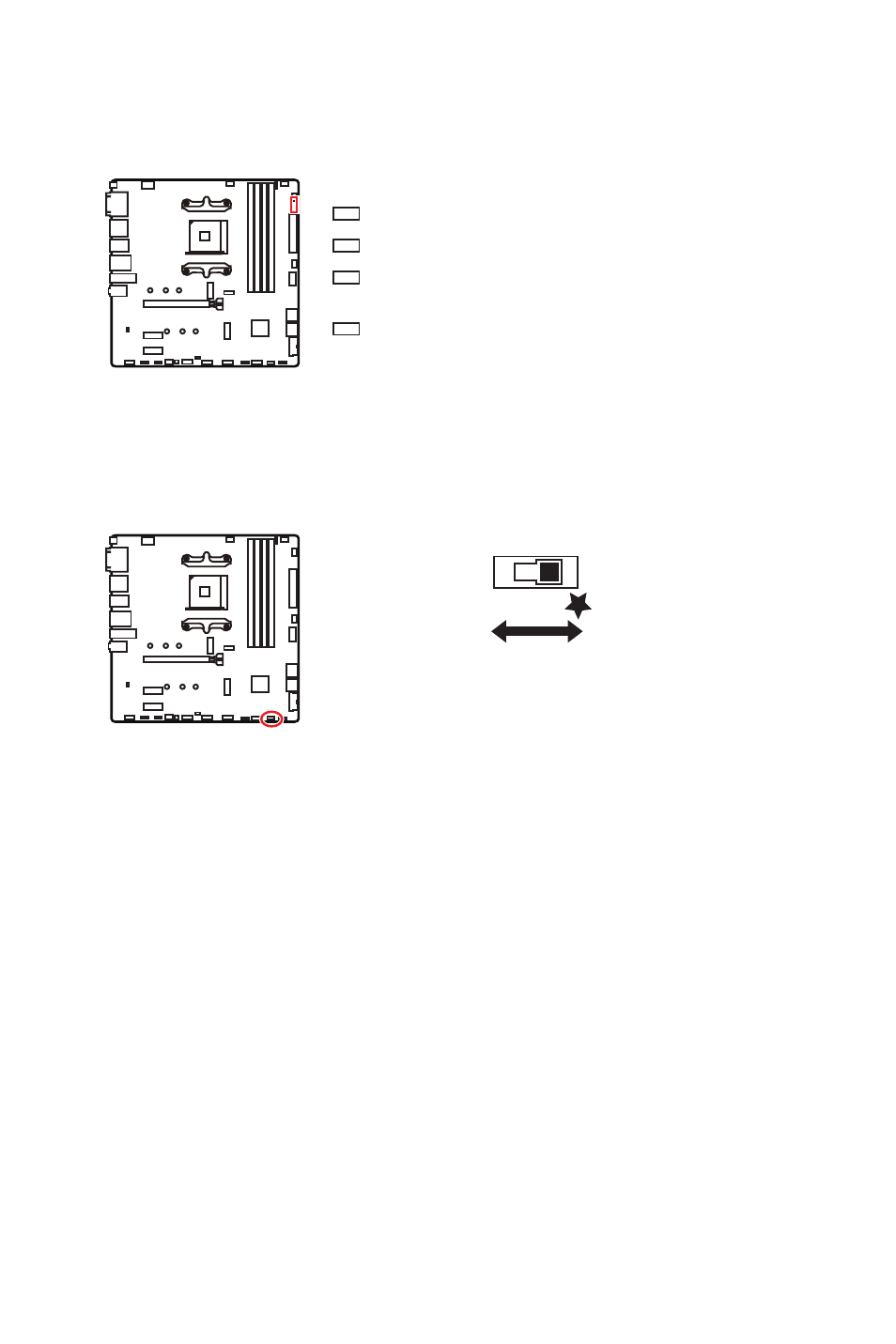

EZ Debug LED

These LEDs indicate the debug status of the motherboard.

CPU

- indicates CPU is not detected or fail.

DRAM

- indicates DRAM is not detected or fail.

VGA

- indicates GPU/ PCIE/ M.2 device is not detected

or fail.

BOOT

- indicates the booting device is not detected

or fail.

LED_SW1: EZ LED Control

This switch is used to switch on/ off all the LEDs of motherboard.

LED_OFF

LED_ON

(Default)
