Quick Start

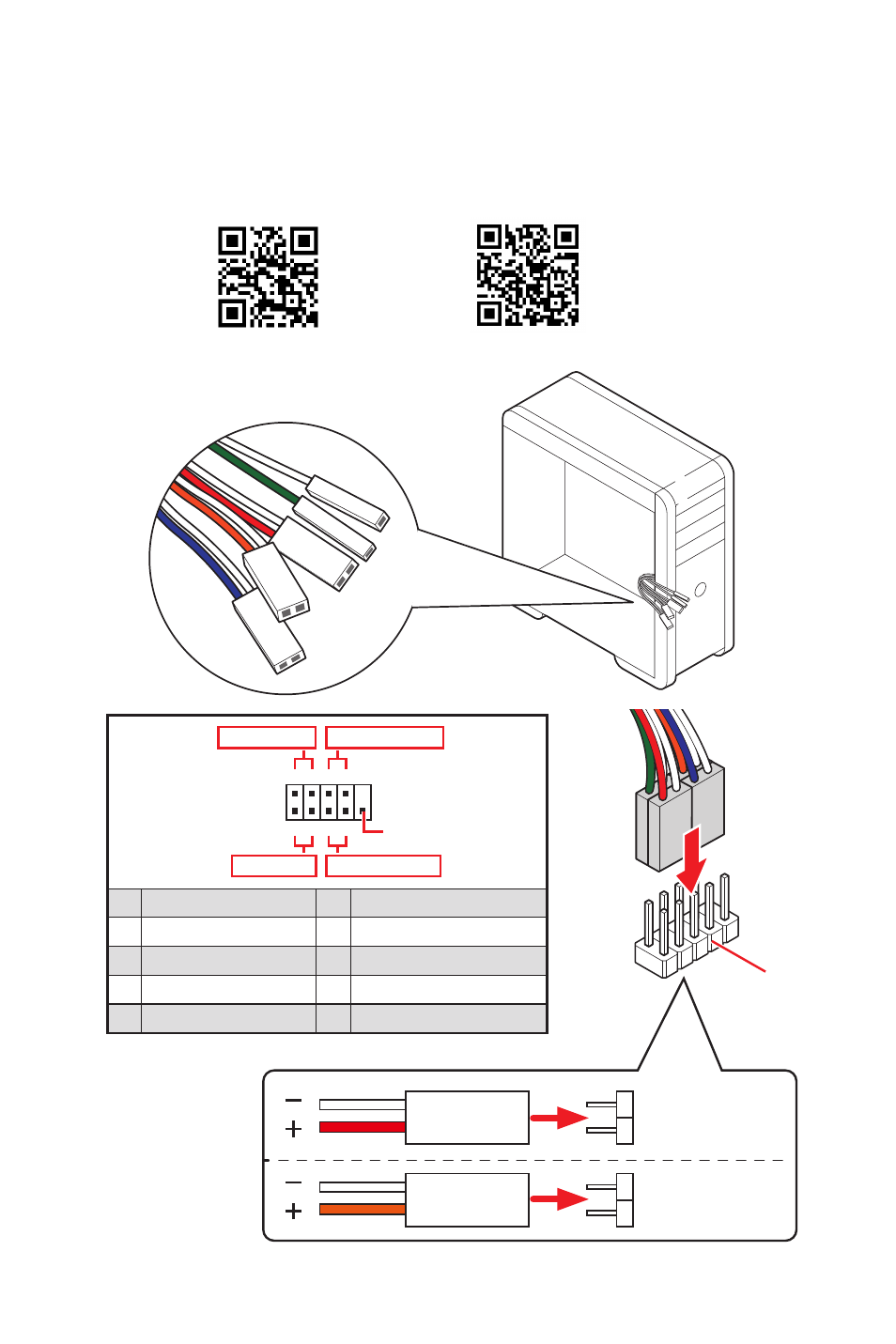

Connecting the Front Panel Header/
フロントパネルヘッダーの接続/ 전면 패널 커넥터 연결하기/
連接前置面板針腳/ 连接前置面板接头
http://youtu.be/DPELIdVNZUI
Youtube
优酷
http://v.youku.com/v_show/id_XNjcyMTczMzM2.html
⚽ ⚽
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+
-
-
-
-
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET
SW
POWER SW
POWER LED+
POWER LED-
HDD LED
JFP1
