RF Setup
Output Setup

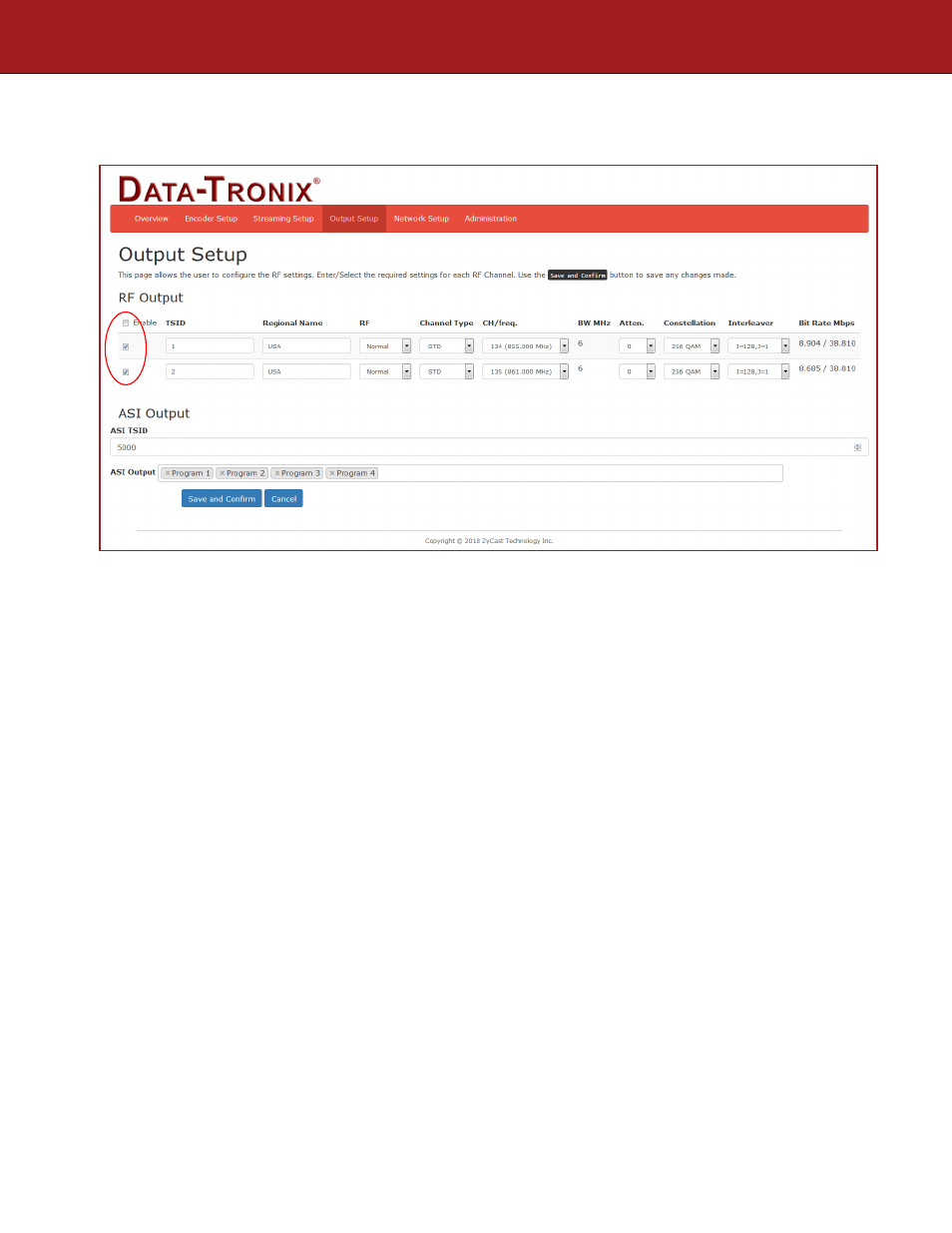

Output Setup Page of DT-IPTV-QAM-ASI-4HC
Use the Output Setup Page to setup each RF Output.
The DT-IPTV-QAM-ASI-4HC offers the integrator the ability to set the output channel independently of the other output
channels of the DT-IPTV-QAM-ASI-4HC Encoder. This professional parameter allows the integrator greater flexibility for
placing video streams within the system. Each RF/QAM (2 streams per RF) can be allocated independently.
1. Select RF Output Setup from the menu.
2. Enable/Disable RF1-RF2 by checking or unchecking Checkbox (as required).
3. Modify the RF TSID (as required).
4. Select and Set RF Type.
5. Select and Set Channel Type.
6. Select and Set Ch/Freq required.
7. Select and Set Attenuation (if required).
8. Select and Set required Constellation.
9. Modify Interleaver (if required).
10. Modify ASI TS_ID (if required)
11. Select / Remove any ASI Program/Stream (as required).
12. Save and confirm all changes have been made.
