Encoder Setup
After connecting the device to the “Web Management” port located on the rear of the device and connecting to a PC/Laptop.
Enter Device's IP address in web browser to access the Overview Page.

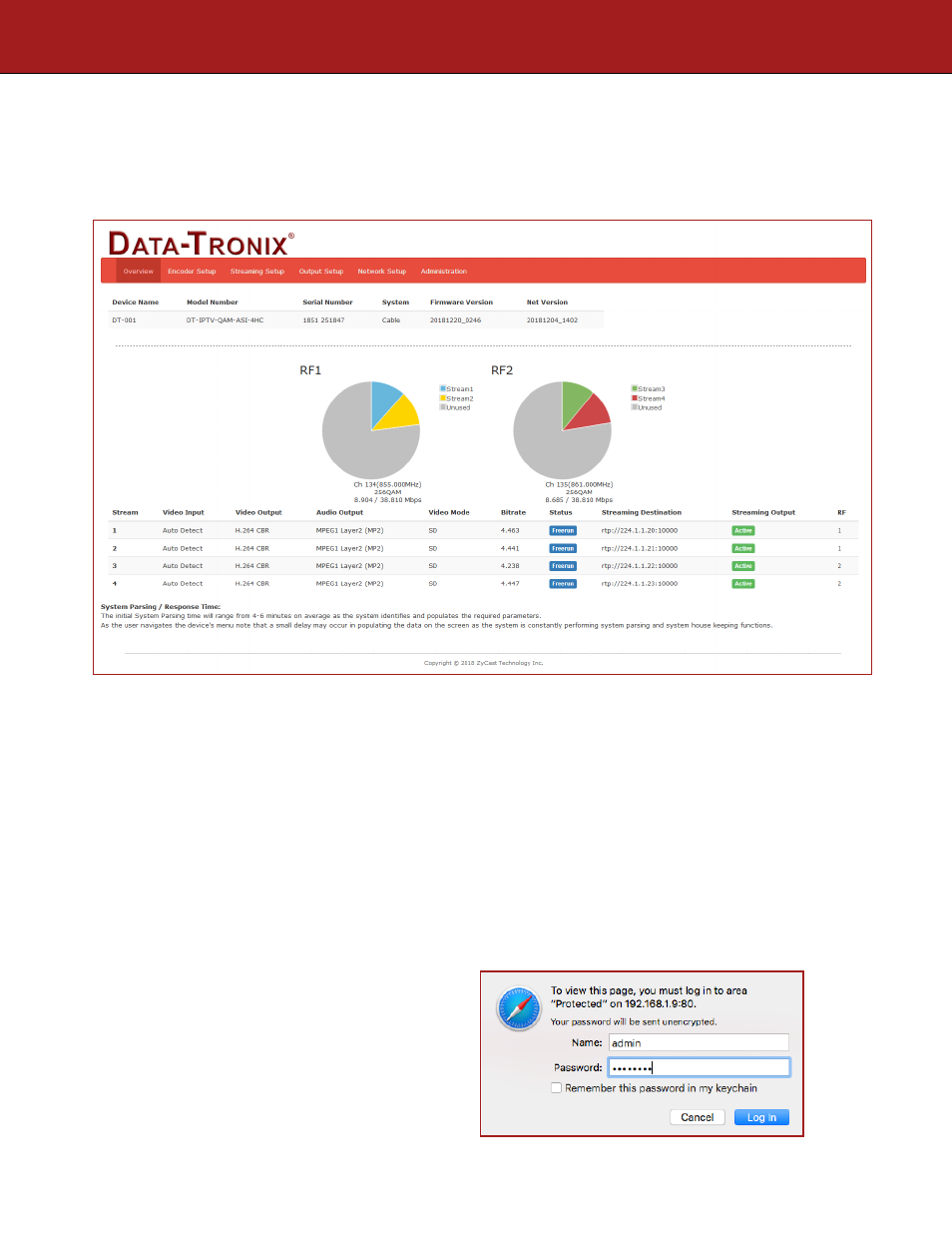

Overview Page of DT-IPTV-QAM-ASI-4HC
The Overview page of DT-IPTV-QAM-ASI-4HC shows inputs 1-4 system status including: Video Source parameter, Video
Output setting, Audio Output, Bitrate, and more.
The Overview page provides a quick snapshot of the DT-IPTV-QAM-ASI-4HC when fully functioning .
System Parsing / Response Time:
The initial System Parsing time will vary as the system identifies and populates the required parameters.
As the user navigates the device's menu note that a small delay may occur in populating the data on the screen as the system
is constantly performing system parsing and system upkeep functions.
Encoder Programming and Setup via GUI Interface:
Select the Encoder Setup Tab; you will then be prompted to enter the user name and password for device.
GUI Login Password:
Default User Name: admin
Default Password: Admin123
Note: To change the Password for the GUI go to the Administration Tab.
