For un-balanced audio, use the + and Ground pins of each channel
•
Drives audio signals up to 2VRMS with a sampling rate of 192KHz
•
Up to 255ms of delay may be added per output using KDMS Pro software or by sending command via
TCP/IP or RS-232. Delay settings apply to both the analog and digital ports for the output.
•
There are no volume or tone control features
•

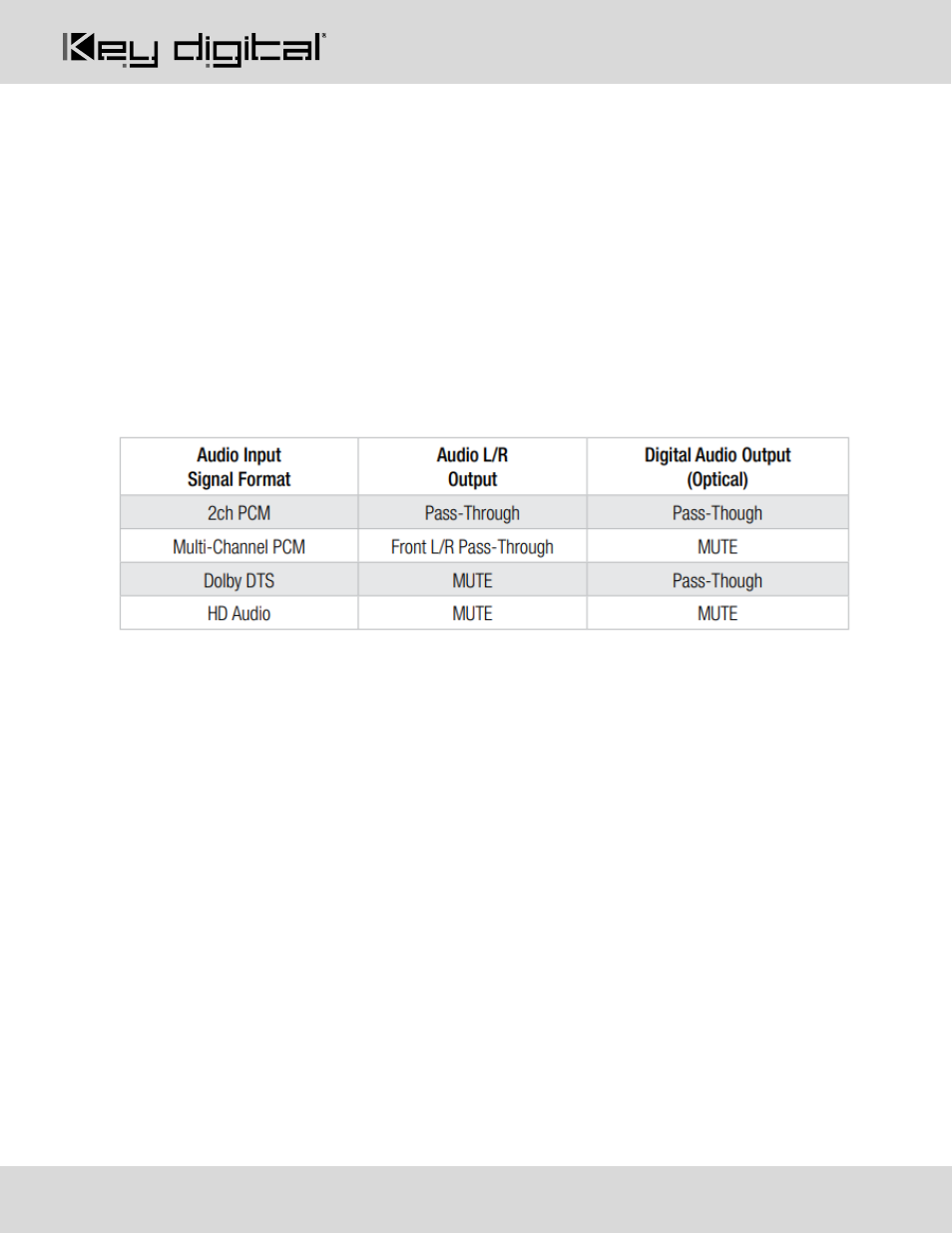

There are no format conversion features. For example, to achieve 2ch analog audio output, the selected
HDMI input source audio format must be 2ch.
Digital Audio Outputs (4):
Optical
•
Provides digital audio output from the selected HDMI input source.
•
Supports PCM, SPDIF (IEC 60958), Dolby Digital®, and DTS
™ up to 5.1 / 6.1
•
There are no volume or tone control features
•
There are no format conversion features. For example, to achieve 2ch analog audio output, the selected
HDMI input source audio format must be 2ch.
IR In/Out (4):
•
The default setting is IR Input. Direction may be changed using KDMS Pro software, TCP/IP or RS-232.
•
IR In/Out ports correspond to their respective Rx unit. IR is not routable
•
The
KD-MLV4x4Pro
IR Input supports
Serial IR input only
. IR sensor connection not supported.
o
The
KD-EXMLVRx
IR Inputs supports the
IR Sensor only
. Serial / hard-wired IR connection not
supported.
•
Maximum supported IR burst frequency is 55kHz.
•
Only the provided IR Emitters should be used. Third-party emitters may not be compatible.
•
Pinout:
o
Tip = IR in/out signal, Sleeve = Ground
•
RS-232 extension is not supported
Service USB (1):
•
Micro USB port
•
Used for configuration and control from PC via KDMS Pro, KDMS, or third-party control terminal
•
Used for firmware updates (consult with Key Digital tech support before updating firmware).
o
Note:
After updating firmware, all unit settings are restored to defaults except IP information.
Please collect all customized settings info before loading firmware.
•
Supports USB driver for Windows, Mac
•
Will register as “Prolific USB-to-Serial Comm Port in Device Manager
