21
LMF-400: EP-60R
Configuration & Calibration
This section covers how to use the EP-60R Fuel Flow with a LMF-400
Multi-function gauge.

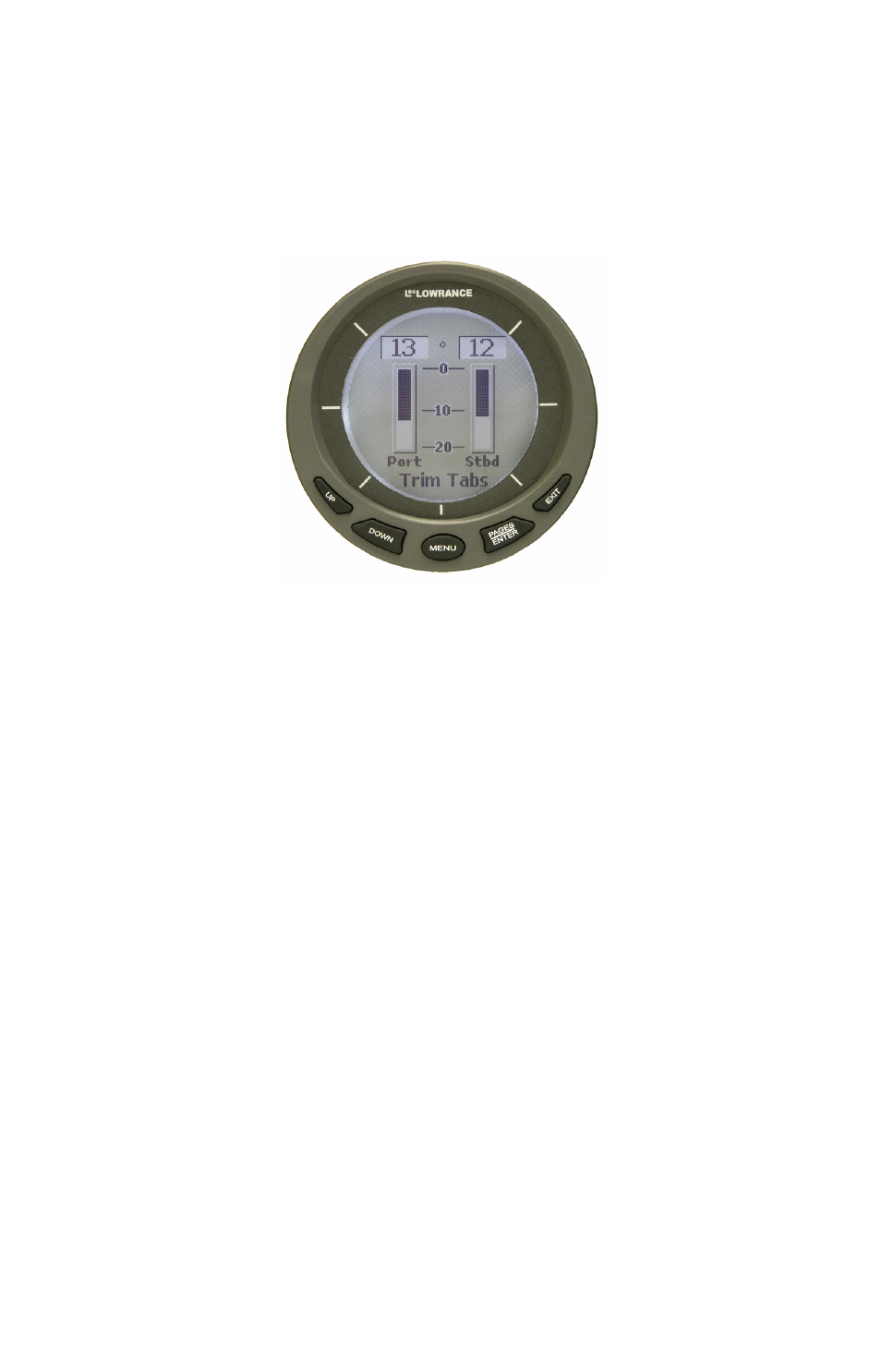

LMF-400 Multi-function Digital gauge.
Boat Setup
If this is the first time you have turned on your LMF-400, you will have
to complete Boat Setup before you will be able to configure or calibrate
your fuel flow. If you have already completed Boat Setup, skip ahead to
the segment covering EP-60R Fuel Flow Configuration.
To execute Boat Setup:
1. With Boat Setup highlighted on the screen, press
ENTER
. A menu
will appear, allowing you to choose the number of engines and fuel
tanks on your vessel. The Boat Setup menu options are: 1 Eng/1 Tank,
1 Eng/2 Tank, 2 Eng/1 Tank, 2 Eng/2 Tanks, 3 Eng/1 Tank or 3 Eng/3
Tanks.
2. Use the
UP
and
DOWN
keys to select the engine-tank configuration
that applies to your vessel and press
ENTER
. After setting the
engine/tank configuration, the Tank Size menu will appear with up to
three options. (If you selected one tank during Boat Setup, you will be
taken directly to the Setting Tank Size Window in Step 4.)
3. Select the desired tank and press
ENTER
, which will open the Setting
Tank Size window.
4. Use the
UP
and
DOWN
keys to input the size of the tank and press
ENTER
. Repeat steps 3 and 4 for each of the remaining tanks.
5. After all tanks on your vessel have been set up, press
EXIT
repeatedly
to return to the main display.
