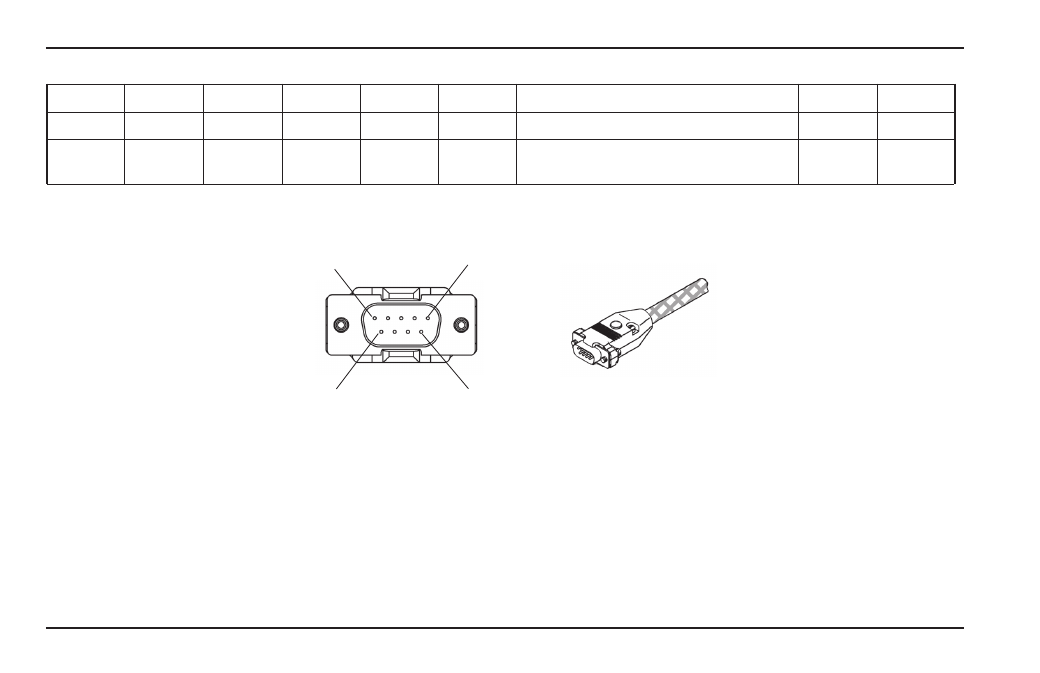

Output Signals and Pin-Outs ENC 125 T/E
Acu-Rite Companies Inc.
16
Digital Differential
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9
- Green - Blue - White Brown Pink -
Channel Channel Ground Vcc, + 5.1 Channel
A+ B+ ± 0.1 VDC R+
1
6 9
5
