Making Antenna Connections
Although you can use either an indoor or outdoor antenna with the TV, an outdoor antenna will provide you with
better picture quality.
You can receive cable TV by connecting a cable supplied by your local cable company.
Connecting a VHF, UHF or VHF/UHF combination antenna , or CATV cable
Check your antenna cable type. If you have 7&ohm coaxial cetble (round), attach an F-type connector (not
supplied). If you have 30Oohm twin-lead cable (flat), attach a 300-75 ohm adaptor (not supplied).

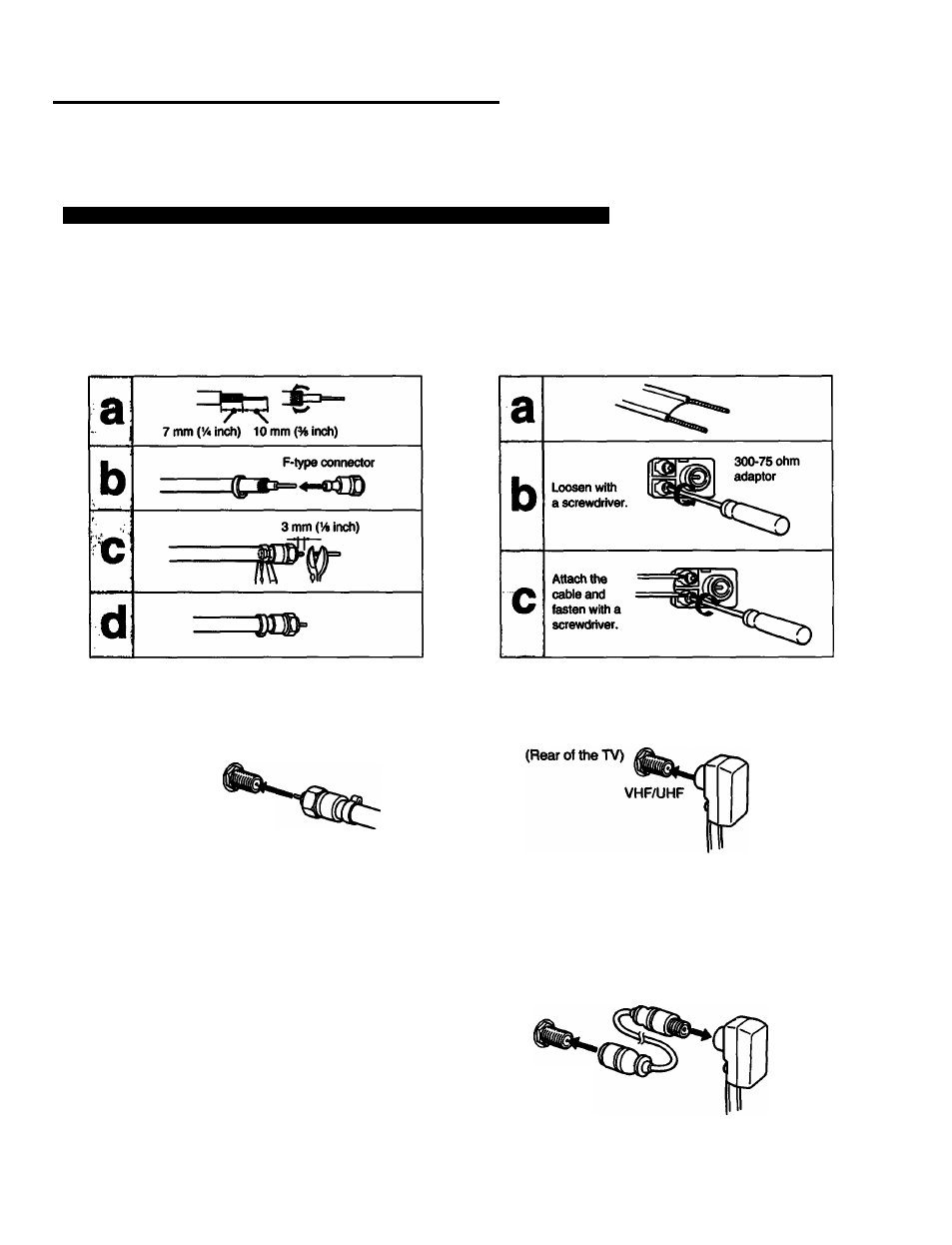

Using 75-ohm coaxial cable (round)
1
Prepare the end of the cable by attaching the F-type
connector as shown below.
g
Using 300-ohm twin-lead cable (flat)
1
Prepare the end of the cable by attaching the 300-75
ohm adaptor as shown below.
sS
ai
e:
Si
Plug the connector into the VHFAJHF terminal at the
rear of the TV.
Plug the adaptor into the VHF/UHF terminal at the rear
of the TV.
(Rear of the TV)
VHF/UHF
* Most combination antennas are equipped with a signai splitter.
Remove the splitter and attach the appropriate connector.
Connecting the supplied antenna cable
For better picture quality, connect the supplied antenna
cable as shown below, so that the 300-ohm twin-lead cable
can be separated a distemce from the TV.
(Rear of the TV)
VHF/UHF
Chapter 1: Setting Up |
