Connecting Other Equipment
Preparing for use
1 Turn on the TV.
2 Press TV/VIDEO on the TV or on the Remote
Commander so that “VIDE01 ,* “VIDEO 2” or “VIDEO 3’
appears on the screen.
VIDE01 : for equipment connected to VIDEO IN 1
VIDEO 2: for equipment connected to VIDEO IN 2
VIDEO 3: for equipment connected to VIDEO IN 3
Note
If you try to use the equipment connected to the front and rear
VIDEO IN 3 jacks at the same time, the picture will be distorted. Be
sure you turn off one piece of equipment first.
Watching a different image whiie dupiicating
The LOOP OUT jacks only output the signal from
VIDEO IN 3.

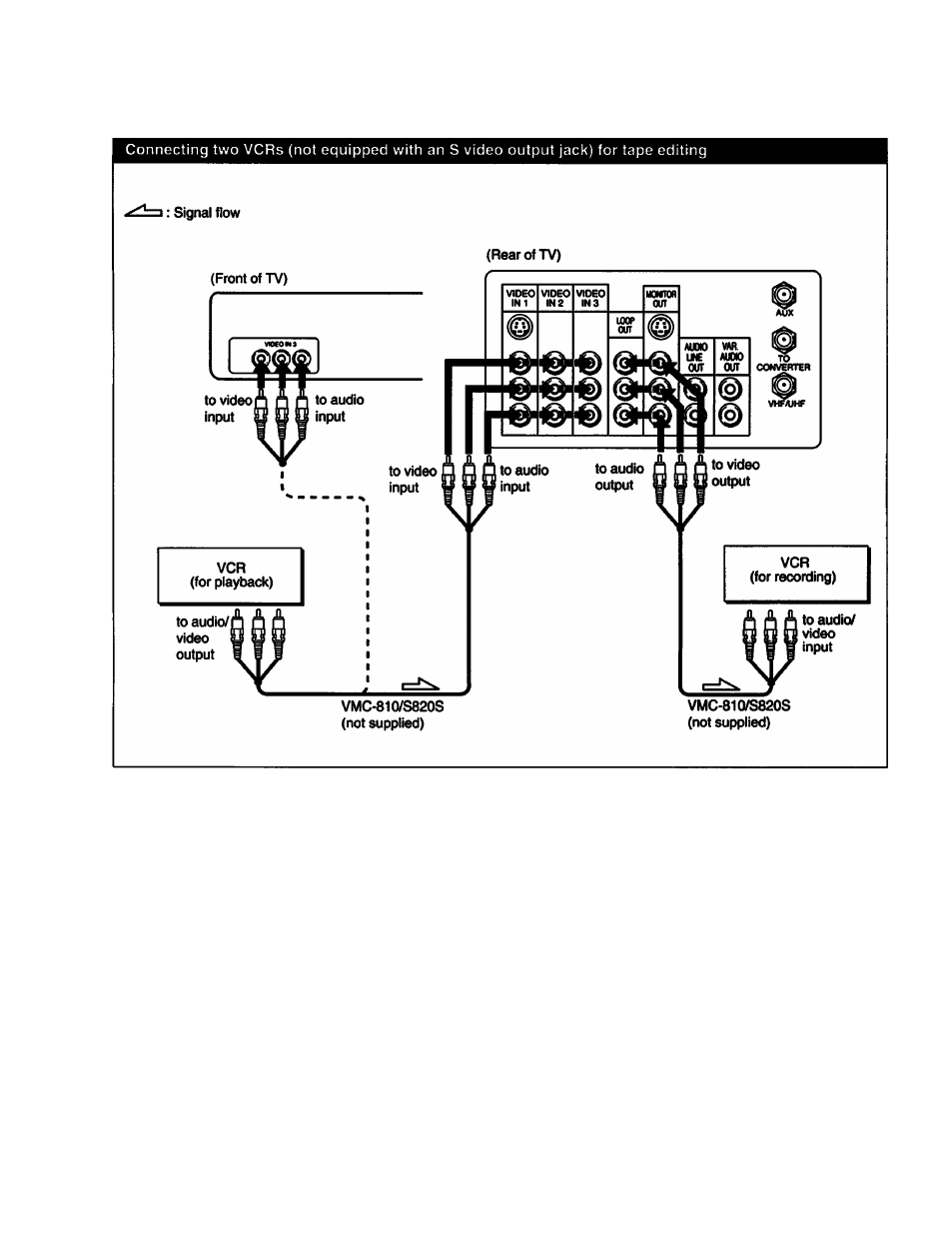

If you connect a VCR for playback to the VIDEO IN 3 jacks,
and a VCR for recording to the LOOP OUT jacks to
duplicate your recorded tapes, you can watch input images
different from the image being output for recording.
To watch a different input image
Press TV/VIDEO on the TV or on the Remote Commander
to select the input image you want to watch.
1 6 1
Chapter 1: Setting Up
