Connecting Other Equipment

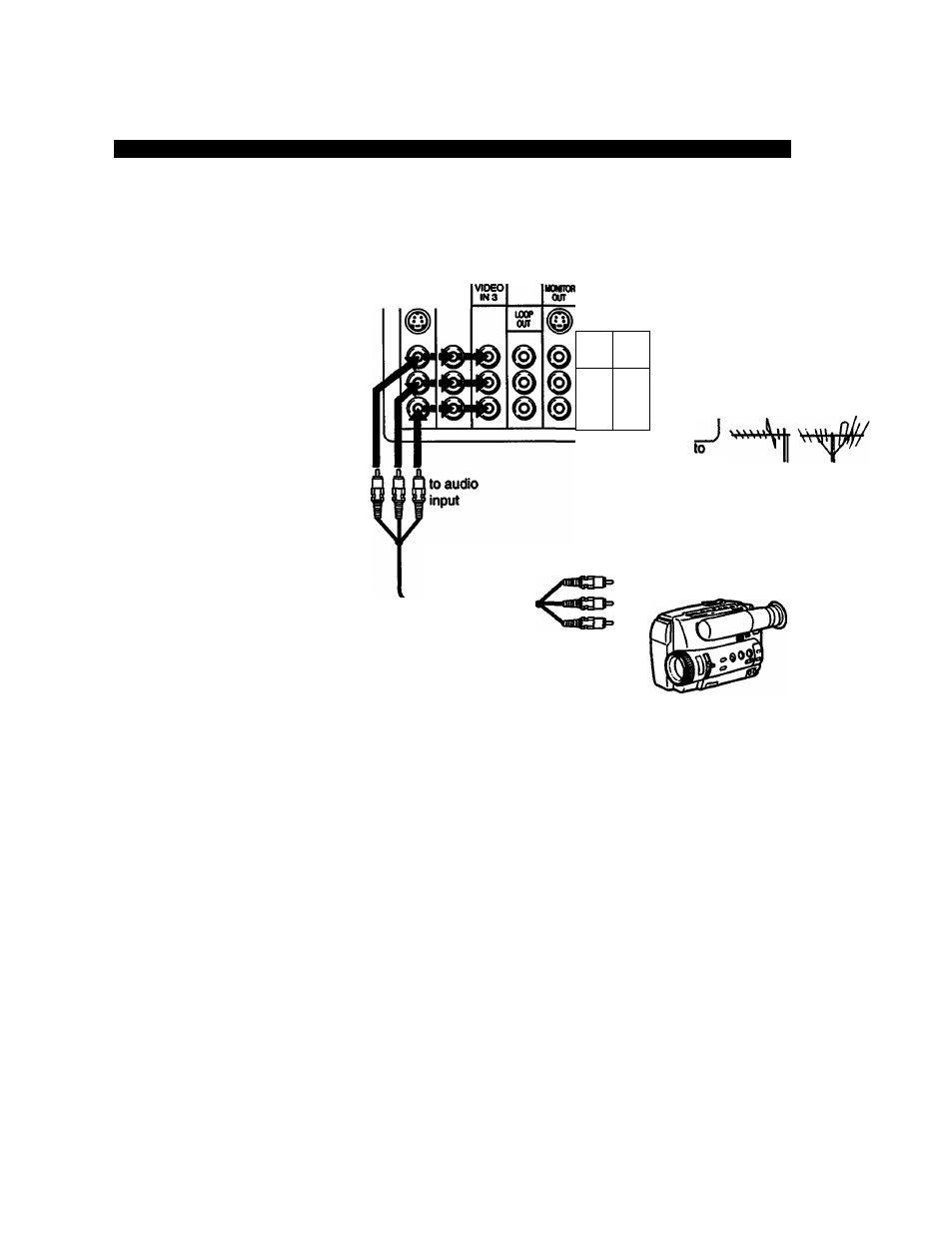

Connecting a VCR, video disc player or Camcorder not equipped with an S video output jack
: Signal flow
(Rear of TV)
(Front of TV)
VIDEO
INI
VIDEO
IN 2
to
video
input
to
audio
input
to video
input
§
AUDIO
UNE
our
m
AUDIO
OUT
©
©
©
©
TO_
CONVERTER
VH UHF
to
VHF/UHF
output
VMC-810S/820S
(not supplied)
VHF/
UHF
VCR, video disc
player, etc.
to
audic/video
output
Preparing for use
Operating the equipment
1
Turn on the TV.
Same asp. 13.
Press TV/VIDEO on the TV or on the Remote
Commander so that “VIDEO 1“ VID EO 2" or “VIDEO 3”
appears on the screen.
VIDEO 1 : for equipment connected to VIDEO IN 1
VIDEO 2: for equipment connected to VIDEO IN 2
VIDEO 3: for equipment connected to VIDEO IN 3
To return to TV mode
Press TV/VIDEO on the TV or on the Remote Commander
so that a channel number appears on №e screen.
Notes
• If you try to use equipment that is connected to the front and rear
VIDEO IN 3 jacks at the same time, the picture wiil be distorted.
Be sure you turn off one piece of equipment first.
• You can label each of the video input modes (p. 51).
• You do not need to select a video mode when you use the direct
play function (pp. 67 - 68).
• If you oonnect a monaural VCR, connect the audio output of the
VCR to the L (MONO) jack of VIDEO IN (1,2 or 3). The
monaural sound will be heard from both speakers.
141
