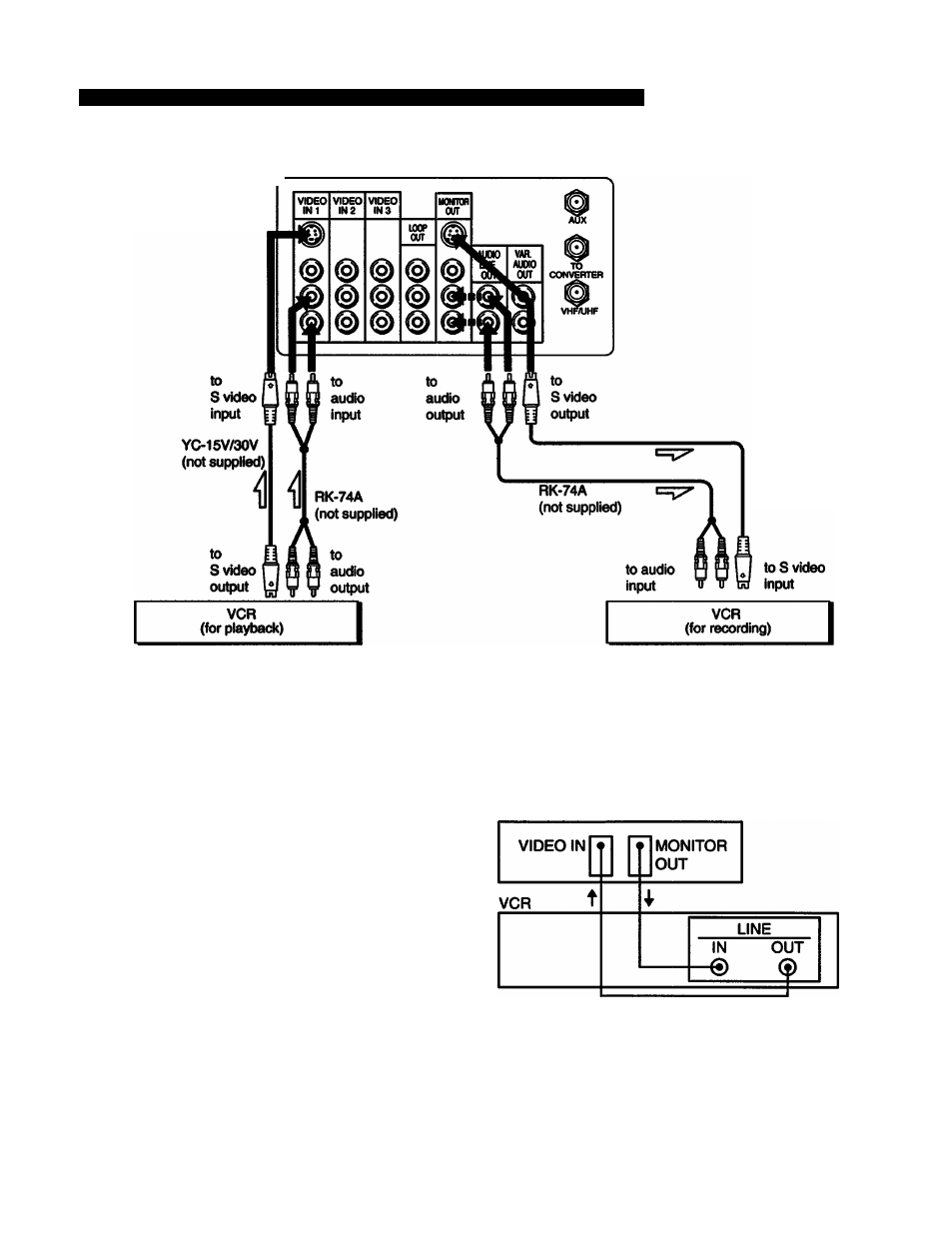

Connecting two VCRs (equipped with an S video output jack) for tape editing
: Signal flow
(Rear of TV)
YC-15V/30V
(not supplied)
I
I
I
Preparing for use/Operating the equipment
Same as p. 13.
Caution
Video tapes and other materials may be copyrighted.
Unauthorized recording of such material may be contrary
to the provisions of the copyright laws.
Notes
• Do not change the input signal while editing through MONITOR
OUT, or the output signal will also change.
• When connecting a single VCR to the TV, do not connect the
MONITOR OUT jacks at the rear of the TV to the VCR’s line
input, while at the same time connecting from the TVs VIDEO IN
Jacks to the VCR's line output, as shown below.
(Rear of the TV)
The above type of connection is not a problem when you connect
from the line input of one VCR, and from the line output of a
second VCR.
