User LEDs
The User LEDs control displays the current state of the user LEDs. Toggle the LED
buttons to turn the board LEDs on and off.
Push Button Switches
The read-only Push button switches control displays the current state of the board
user push buttons. Press a push button on the board to see the graphical display
change accordingly.
The Flash Tab
The Flash tab allows you to read and write flash memory on your board.
shows the Flash tab.
The following sections describe the controls on the Flash tab.

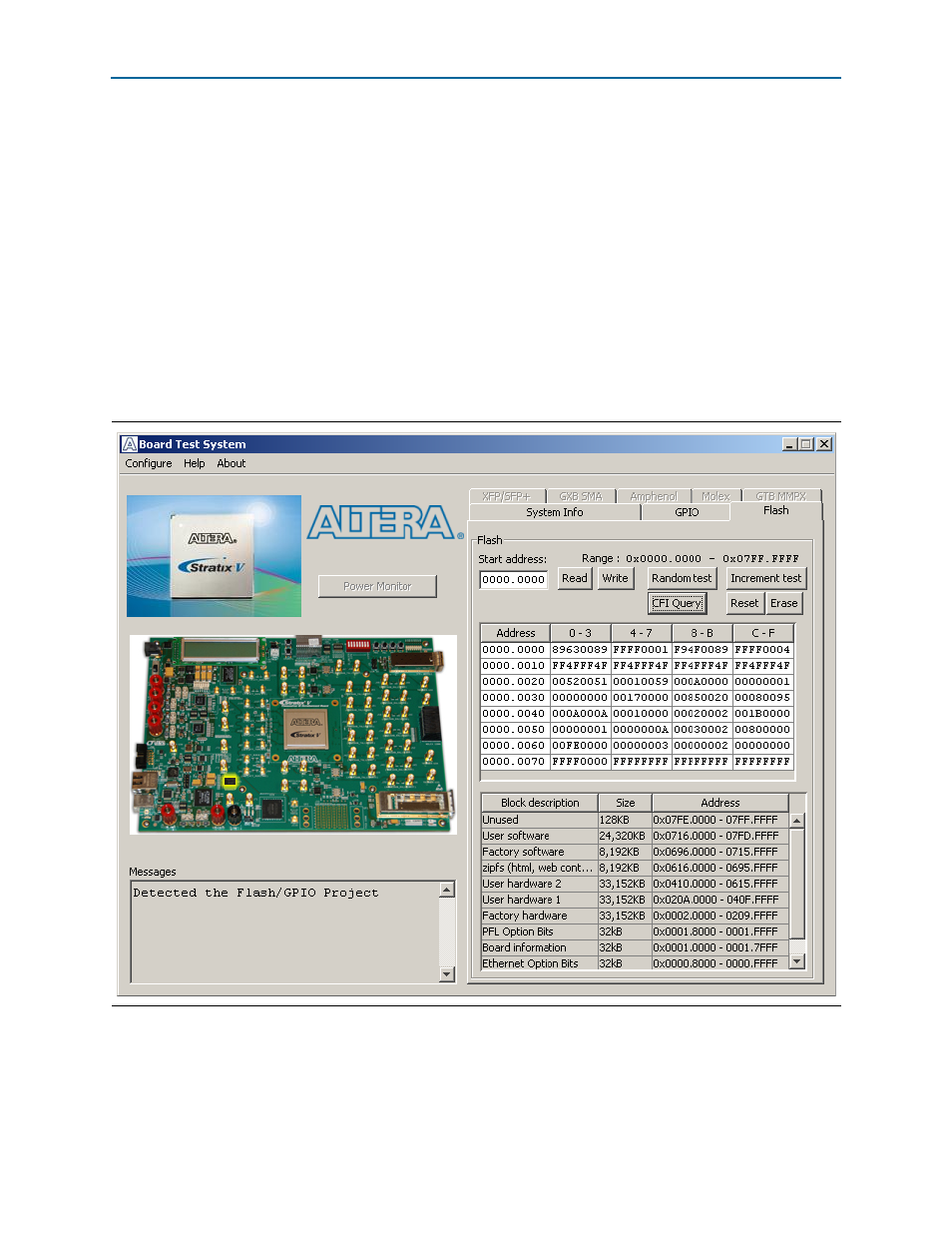

Figure 6–4. The Flash Tab
