COMPONENT IDENTIFICATION
Pengo continually looks for new ways to improve its products. Therefore, Pengo reserves the right to make changes to our
products and specifications without notice.

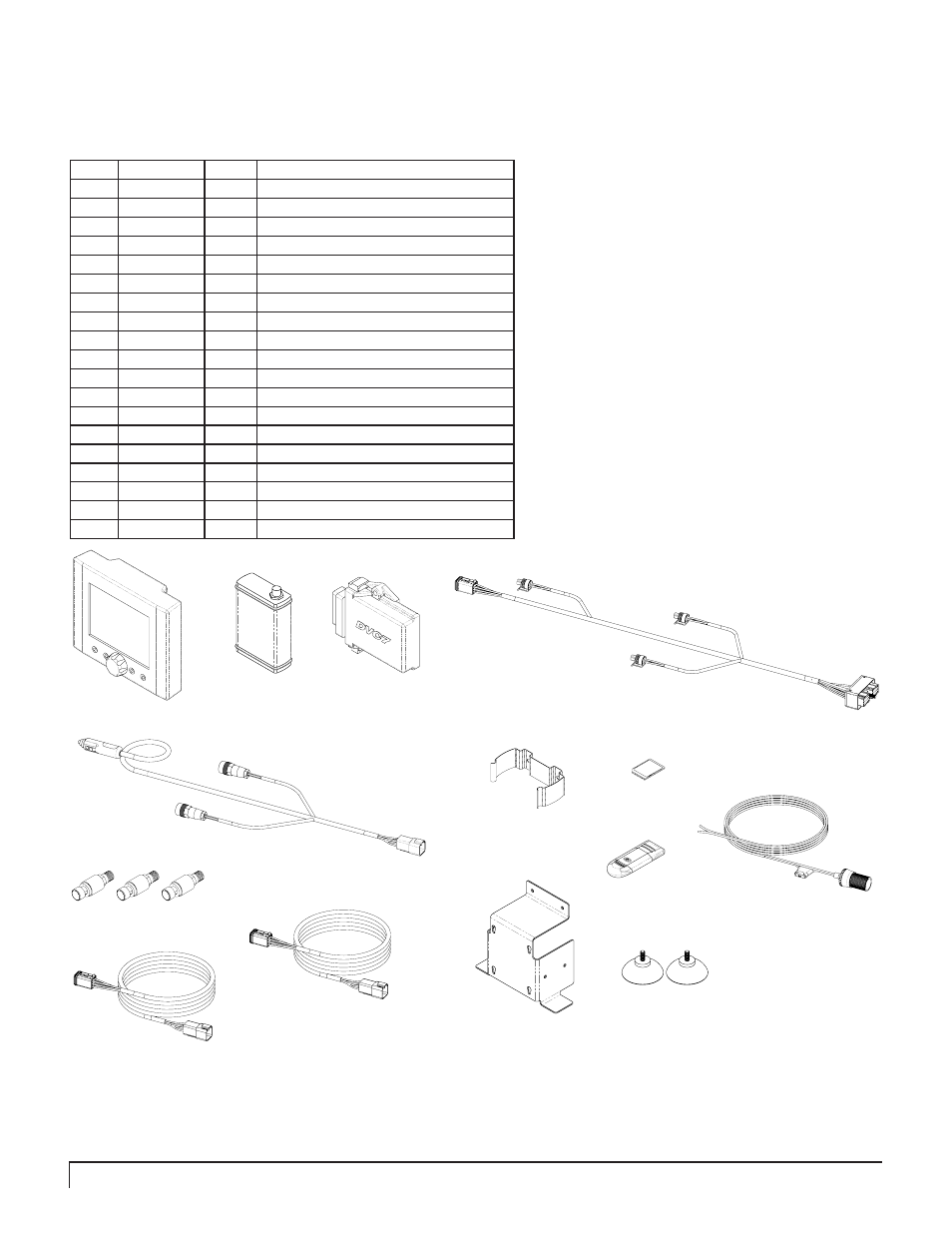

Use the illustration below to help familiarize yourself with the various components and controls.
ITEM PART No. QTY DESCRIPTION
 6024  DISPLAY RM-1401 S02 [REVTRAK]
2 6025  LOGGER CAN [REVTRAK]
3 6026  CONTROLLER DVC7 [REVTRAK]
4 6027  HARNESS WIRE-DRIVE [REVTRAK]
5 6028  HARNESS WIRE-DISPLAY [REVTRAK]
6 6029 3 TRANSDUCER 5000 PSI [REVTRAK]
7 60220  CABLE 10’ SECTION [REVTRAK]
8 6022  CABLE 20’ SECTION [REVTRAK]
9 60222  CLIP BRACKET LOGGER [REVTRAK]
0 60300  CARD MEMORY 2GB REVTRAK
 60232  BRACKET DISPLAY MNT PAINTED
2 60294  CARD READER USB REVTRAK
3 60297 2 CUP SUCTION .50 OD RUBBER
4* 60295 6 SCREW HEX SOC HD M4x0 ZINC
5* 60296 2 NUT HEX M4
6 6030  CABLE SECONDARY POWER
7* 5662 2 SCREW HEX HD /4” X -/2”
8* 7452 2 NUT HEX LOCK 1/4”
9* 260046 2 NUT HEX 0-24
