Chapter 5: Installing and Connecting your Telephony Gateway
Front Panel

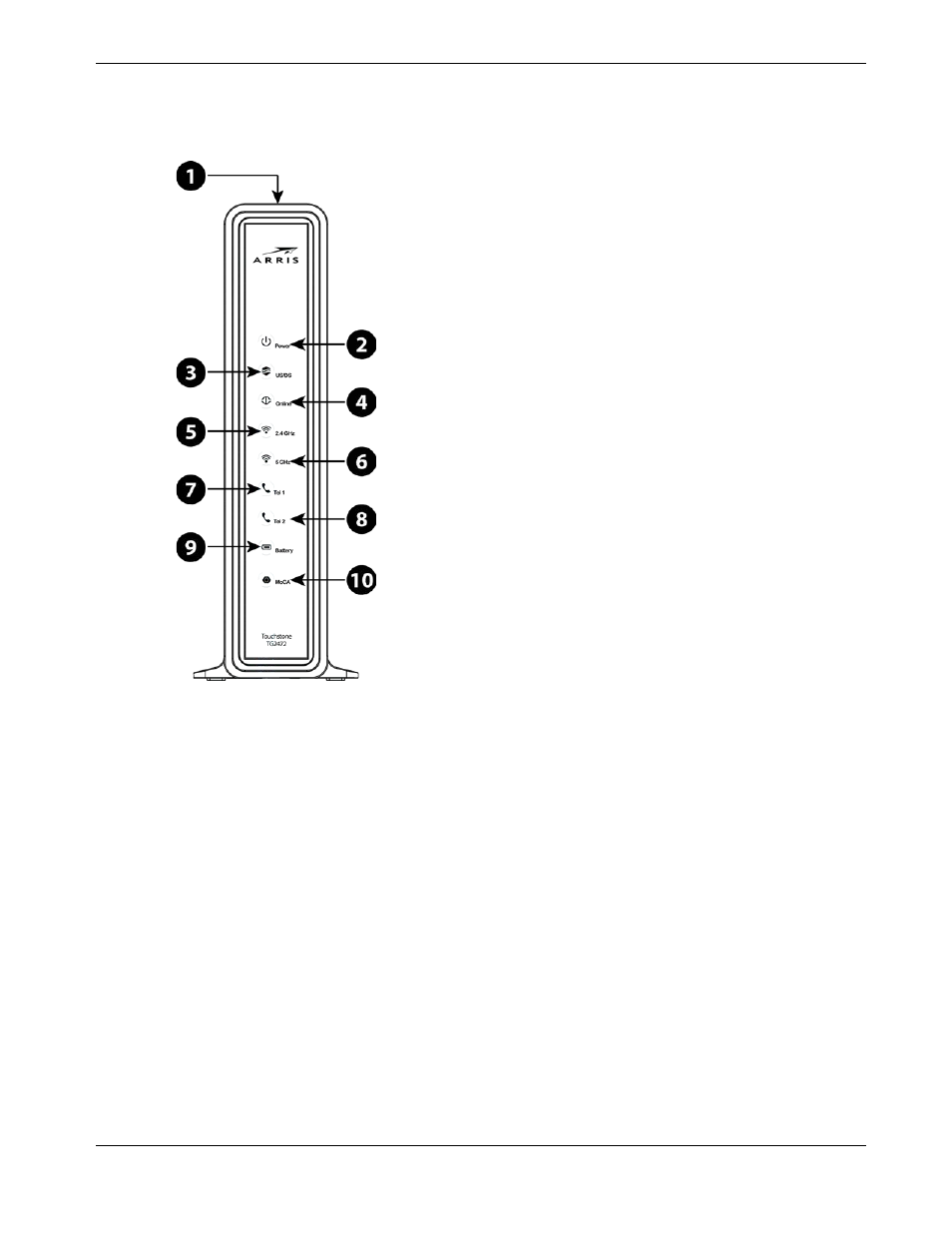

The front of the Telephony Gateway has the following indicators.
1. WPS Button/LED: begins associating the Telephony Gateway with a wireless device.
LED indicates Wireless Protected Setup (WPS) is active.
2. Power: indicates whether AC power is available to the unit.
3. US/DS: indicates upstream/downstream connectivity.
4. Online: indicates internet data transmission status.
5. 2.4 GHz: indicates the status of the 2.4 GHz wireless LAN.
6. 5 GHz: indicates the status of the 5 GHz wireless LAN.
7. Tel 1: indicates the status of telephone line 1.
8. Tel 2: indicates the status of telephone line 2.
9. Battery: indicates the battery status.
10. MoCA: indicates connectivity between the Telephony Gateway and other home devices
connected via the MoCA network.
