Audio Enhancement TLD100 User Manual
Page 17
17
•

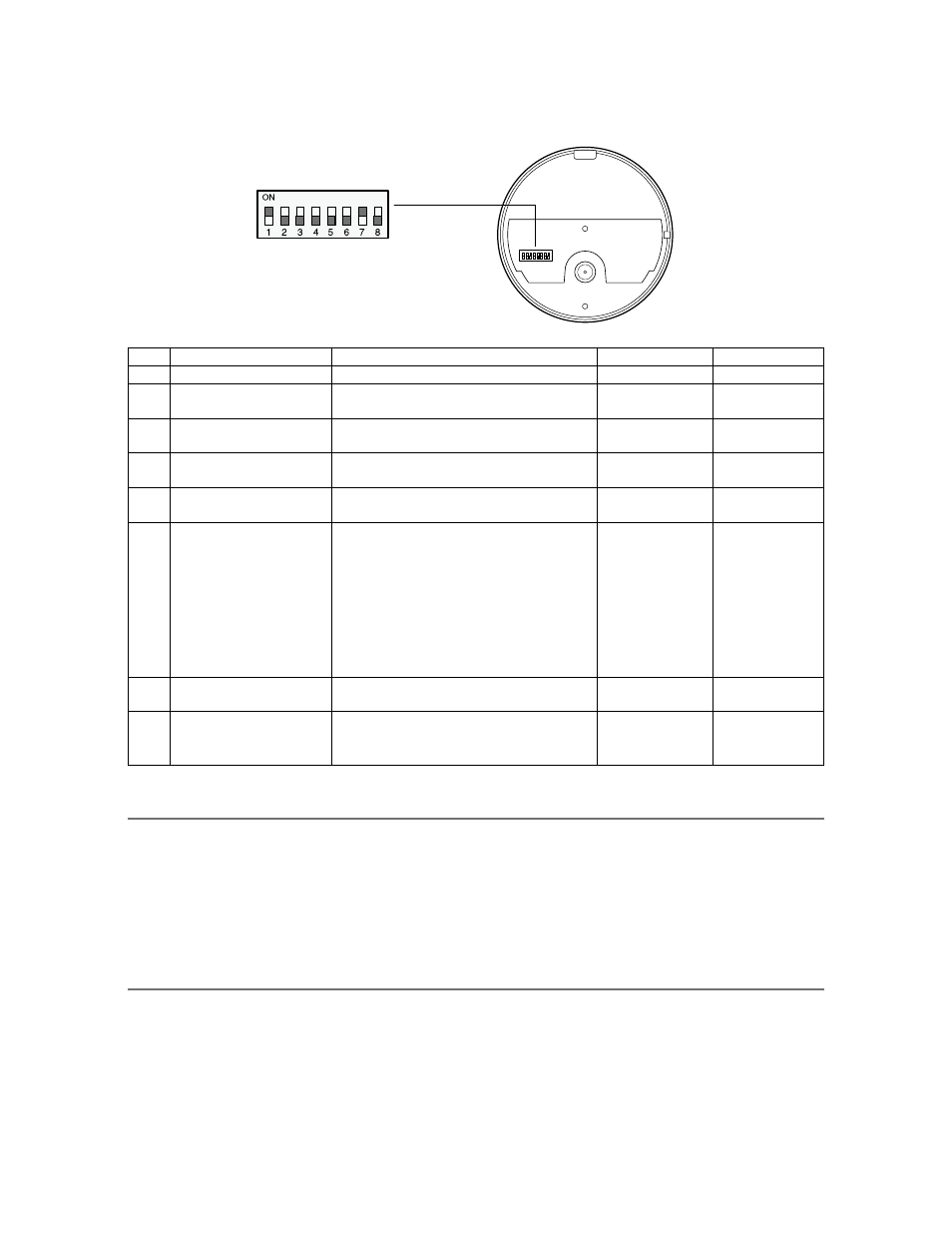

DIP switch setting
No
Name
Function
On
Off
1
Microphone Override
Selection of microphone override function
Activated*
Deactivated
2
Tone ON/OFF
Selection of tone signal from this unit at
operating volume button of MTD-09
Tone ON
Tone OFF*
3
Tone Level High/Low
Selection of tone signal (2 levels) at operating
volume button
High level
Low level*
4
Microphone/Line Mixing
Selection of whether to mix the microphones
CH1 and CH2 to the mixing output (Line Out)
Mixing activated
Mixing
deactivated*
5
Feedback Blocker setting
Selection of feedback blocker function
Feedback blocker
activated
Feedback blocker
deactivated*
6
Remote Volume setting
Selection of remote volume function, normal
mic buttons or reassigned.
When this switch is set to ON, the volume
control of this unit using the volume button of
MTD-09 will be deactivated.
This setting is intended for the control of an
external device using the volume button of
MTD-09 through the serial communication
command. (Page 29)
Mic buttons
reassigned
Mic buttons
normal*
(as labeled)
7
Mix Out Attenuator setting Attenuation of audio output of the mixing
output (–10 dB)
ATT effective*
-10dB
ATT deactivated
8
Ext Sensor
Set to ON when adding the sensor (EDS-07)
as an extension device by utilizing the
optional Infrared Sensor Coupler (AE-DCF).
When utilizing the
AE-DCF
When not utilizing
the AE-DCF*
* Default setting
Note:
• Settings of the DIP switch No. 1 - 6 are recognized when the power of this unit is turned on. Therefore, change of set-
tings after turning on the power does not update the settings of this unit. When settings of the DIP switch are
changed, the power needs to be turned off and on again.
The functions settable with the DIP switch can also be changed through RS-232C (page 29).
In this case, the communication control can change settings even after the power is turned on.
• The internal circuit is physically changed by the DIP switches No. 7 and 8. It is impossible to change the circuit
through RS-232C. Be sure to set these switches manually to ON or OFF.
• Improper setting for the DIP switch No. 8 may shorten the transmission range.
* Default setting
In this illustration, the side with
each switch number is OFF.
