Remote Link II Technical Guide
16
Operator Interface
Remote Link II LED Descriptions

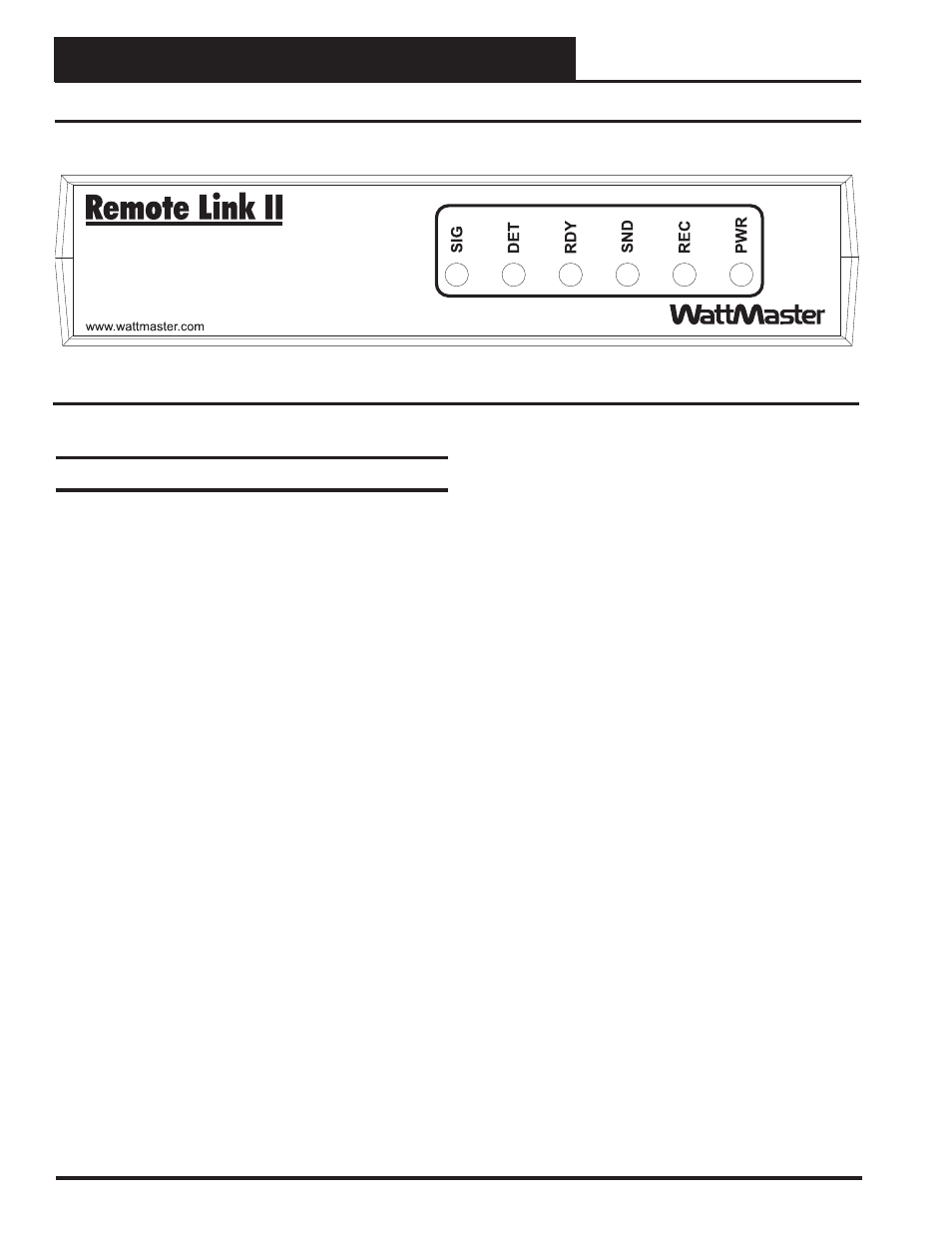

Figure 5: Remote Link II LED Display
C
O
N
T
R
O
L
S
SIG -
Indicates a call to the Remote Link is being made.
DET
- Indicates a call between two Remote Links has been
connected.
RDY
- Indicates that the CommLink or computer that is
connected to the Remote Link is ready to transmit
and receive data.
LED Descriptions
SND -
Indicates that the Remote Link is sending data.
REC -
Indicates that the Remote Link is receiving data.
PWR -
Indicates that the Remote Link has power.
