14
2
Hardware Installation

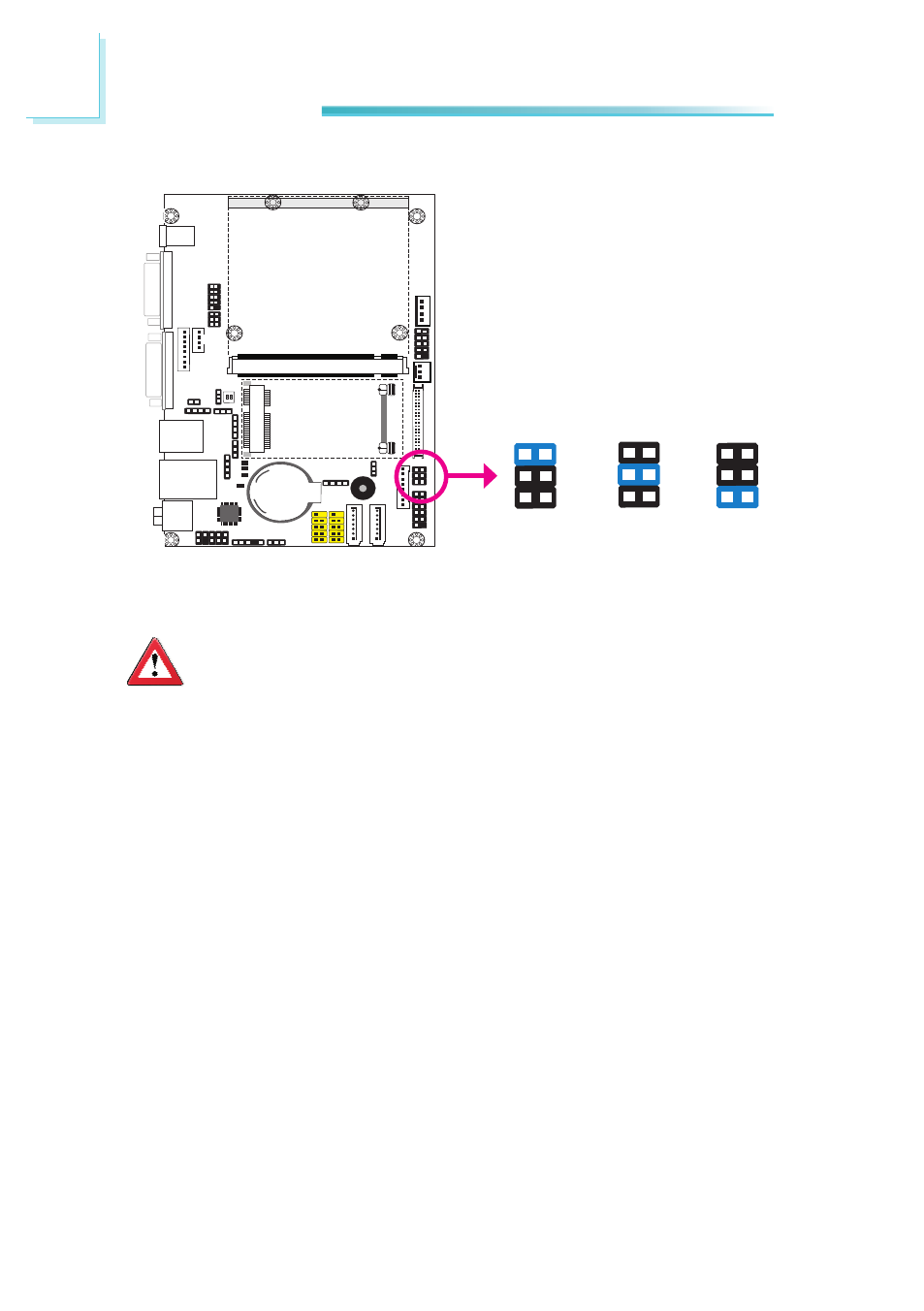

Panel Power Select
JP5
JP5 is used to select the power supplied to the LCD panel.
Important:
Before powering-on the system, make sure JP5’s setting matches the
LCD panel’s specification. Selecting the incorrect voltage will seriously
damage the LCD panel.
1-2 On:
+12V
1
5
3
2
4
6
3-4 On: +5V
1
5
3
2
4
6
5-6 On:
+3.3V
(default)
1
5
3
2
4
6
